Teac CD RW880 Service Manual

This is the 20 pages manual for Teac CD RW880 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 20
Teac CD RW880 Service Manual

Extracted text from Teac CD RW880 Service Manual (Ocr-read)


Page 1

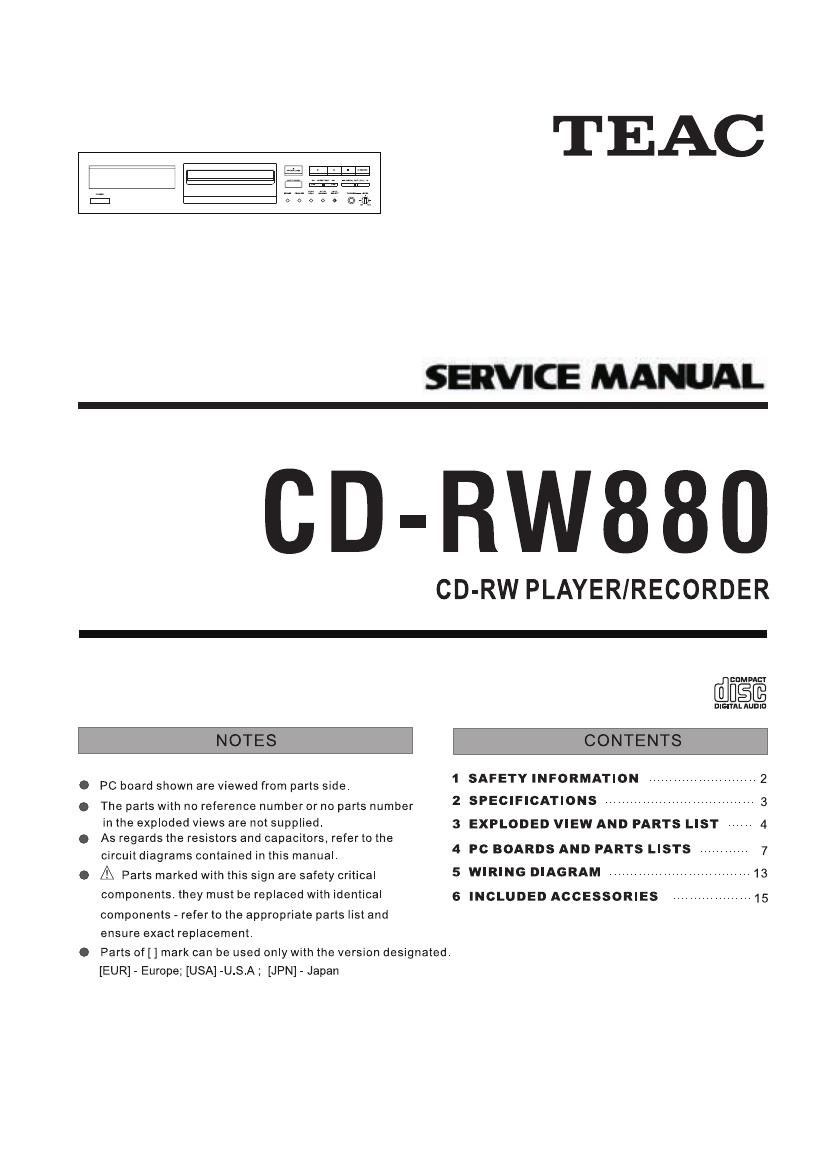

TEAC

SEIVICE MAMlAL

CD-RW880

CD-RW PLAYER/RECORDER

cuM PACT

nlslm AUDID

NOTES

CONTENTS

PC board shown are viewed from parts side.

The parts with no reference number or no parts number
in the exploded views are not supplied.

As regards the resistors and capacitors, refer to the
circuit diagrams contained in this manual.

A Parts marked with this sign are safety critical
components. they must be replaced with identical
components - refer to the appropriate parts list and
ensure exact replacement.

GUIAWNA

Parts of [] mark can be used only with the version designated.

[EUR] - Europe; [USA] -U.S.A; [JPN] - Japan

SAFETY INFORMATION
SPECIFICATIONS
EXPLODED VIEW AND PARTS LIST

PC BOARDS AND PARTS LISTS -- .. .. .-

WIRING DIAGRAM
INCLUDED ACCESSORIES

13
15

Page 2

CD-RW880
1 SAFETYINFORMATION

SAFETY INFORMATION

This product has been designed and manufactured according to FDA regulations " title 21, CFR, chapter 1 ,subchapteerased on
The Radiation Control for Health and Safety Act of 1968" and is classified as class 1 laser product. There is not hazardous
invisible laser radiation during operation because invisible laser radiation emitted inside cfthis product is completely confined
in the protective housings. The label required in this regulation is shown (D.

' CAUTION

USE OF CONTROLS ORADJUSTMENT OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION EXPOSURE.

DO NOT REMOVE THE PROTECTIVE HOUSING USING SCREWDRIVER.

IF THIS PRODUCT DEVELOPS TROUBLE, MAKEACONTACTWITH OUR SERICEMAN,AND DO NOT USE THE PRODUCTATROUBLED
STATE.

D
00
OO

®

FOR U S.A.

CERTIFICATION
THIS PRODUCT COMPLIESWITH DHHS
RULES 21cm SUECHAPTER anpur
CABLE AT DATE OF MANUFACTURE
mac coxpomnon
: 7 3 mm c m MUsAslnNo Sill mm mm
MANUFACY
SERIAL
NU

Optical pickup:
Type SFVW37SGT
Manufacturer SANYO ELECTRIC CO.,LTD.

Laseroutput : Less than 1 mW (Play) on theobjective lens
Less than 5 mW (Record) on the objective lens
Lessthan10rnW(Erase)ontheoblectivelens

Wavelength 783 nm
