Teac CD A630 Service Manual

Extracted text from Teac CD A630 Service Manual (Ocr-read)

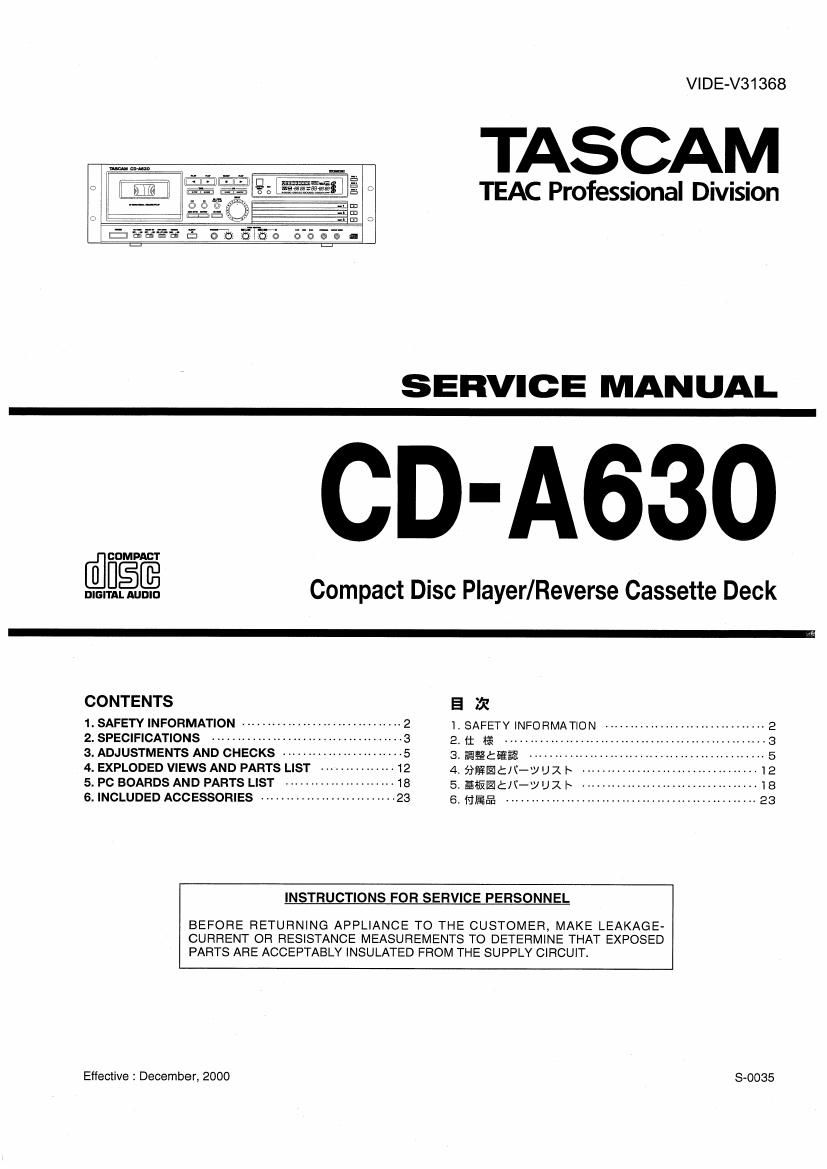

Page 1

VIDE-V31368

TASCAM

TEAC Professional Division

SERVICE MANUAL

CD-A63O

[flfi'éfi

Compact Disc Player/Reverse Cassette Deck


DIGITALAIJDID

CONTENTS E a

1.5AFETYINFORMATION -2 LSAFETYINFORMATION 2
2.SPECIFICATIONS -3 2.11 g 0.3
3.ADJUSTMENTSANDCHECKS rrrrrr -5 Sifii¥tfififg ,,5
4.EXPLODEDVIEWSANDPARTSLIST - -12 4,fi§g}¢/(-\yuxp~ 12
5.PCBOARDSANDPARTSLIST »---«18 5_§fi§|§jt/\'-\yux 18
6.INCLUDEDACCESSORIES 23 Bmggg, 23

INSTRUCTIONS FOR SERVICE PERSONNEL

BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.

Eifective : December, 2000

8-0035

Page 2

1. SAFETY INFORMATION

This product has been designed and manufactured according to
FDA regulations title 21, CFR, chapter 1, subchapter J, based on
the Radiation Control for Health and Safety Act of 1968", and is
classified as a class 1 laser product There is no hazardous
invisible laser radiation during operation because invisible laser
radiation emitted inside of this product is completely confined in
the protective housings.

The label required in this regulation is shown ®.

OCAUTION

USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.

Dptical pickup:

Type : LTOH96MK orGH50105A1APK
Manufacturer : SHARP Corporation

Laser output : Less than 05 mW on the objective lens
Wavelength : 770-795 nm

(D For U.S.A.


TEA: CORPORATlGfl
umunmunzo

CERTIFICATION
THIS PRODUCT COMPLIES WITH DHHS
RULES 21 CFR SUBCHAPTEH J AFFLI
CABLE AT DATE OF MANUFACTURE

3-1-3 NAchHo. MUsAsHImsHi.Tm

TASCAM CD-ASSO

Voltage Conversion
(General export models only)

Be sure to remove the power cord from the AC outlet before
repositioning the voltage converter switch.

1. Locate the voltage selector on the rear panel.
2. Using a flat-bladed screwdriver, set to the appropriate 230V or
120V position according to your area.

VOLTAGE SELECTOR
12OVI IZSW
