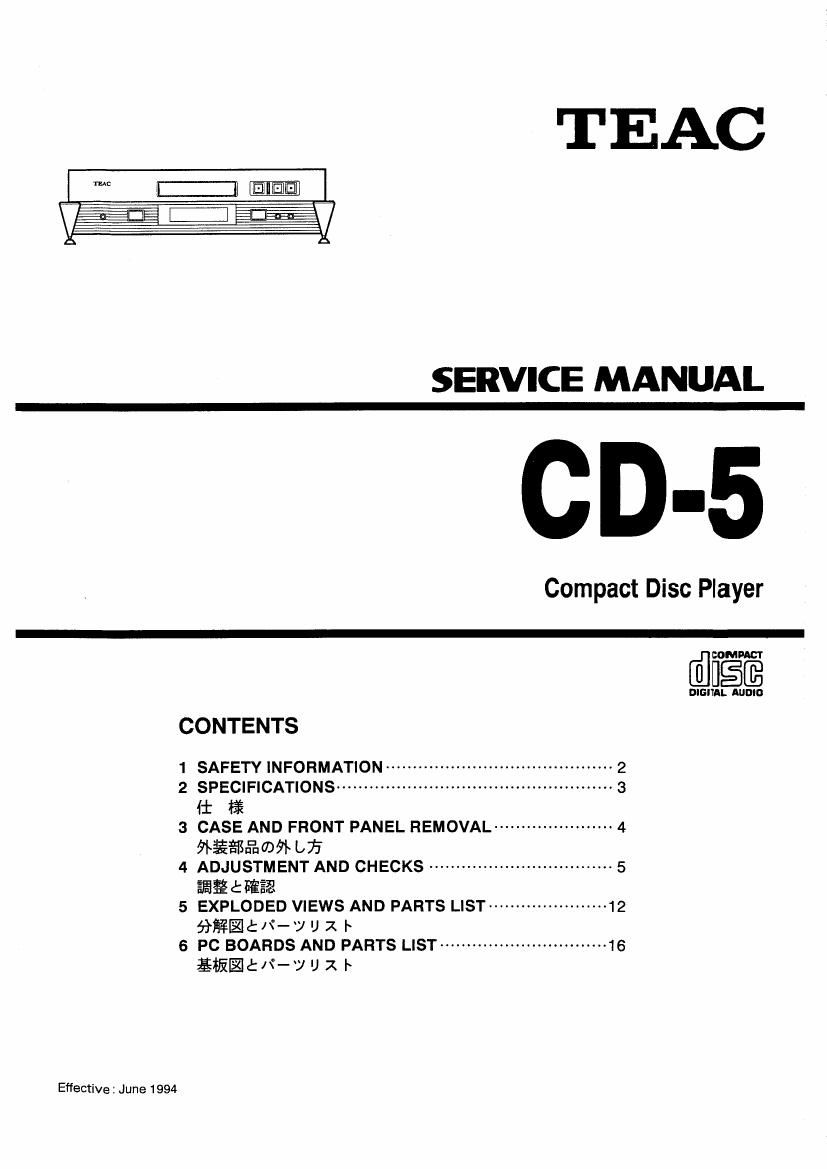

Teac CD 5 Service Manual

Page 1

TEAC

m il:fi I333? EB

X3 11:] |::] m
Compact Disc Player
BOMPACT
BIGIWAL AUDIO
CONTENTS
1 SAFETY INFORMATION .......................................... 2
2 SPECIFICATIONS ................................................... 3
fi fi
3 CASE AND FRONT PANEL REMOVAL ---------------------- 4
fififlflmfibfi
4 ADJUSTMENT AND CHECKS .................................. 5
m§¢ma
5 EXPLODED VIEWS AND PARTS LIST ---------------------- 12
fifigléxf-y u z |~
6 PC BOARDS AND PARTS LIST ............................... 16

Effective: June 1994

ifiIéN-y u x I~

Page 2

1 SAFETY INFORMATION

SAFETY INFORMATION

This product has been designed and manufactured according to FDA regulations title 21. CFR, chapter 1. subchapter J, based on the
Radiation Control for Health and Safety Act of 1968, and is classified as class 1 laser product. There is not hazardous invisible laser radiation
during operation because invisrble laser radiation emitted inside of this product IS completely confined in the protective housings.
The label required in this regulation is shown G).
CAUTION
o It you remove the abovermentloned housrngs under the operating state of the product, there IS a possibility of human access to the invisible
laser radiation emitted irom the optical pickup
Pay careful attention, not to let the invisible laser beam enter into your eyes
0 It you find a troubled state of the laser diode, change to the specified new optical pickup,
o If you find a troubled state of safety interlock parts, change to the same type parts described in parts list,

CERTIFICATION
ms vacuum COMPLIES WIVH apps
was 2| on summwin 4 AFFLI-
CABLE n DATE 0: umuncvuue

Optlcal pickup: Type : KSS~210A
Manufacturer : SONY Corporation
Laser output : Less than 0.4 mW on the objective lens
Wavelength :760 - 800 nm

0 ACHTUNG OBSERVERA I ADVAFISEL

@THIS LABEL IS ATTACHED TO THE PLACE AS ILLUSTRATED T0 INFORM
THAT THE APPARATUS CONTAINS A LASER COMPONENT.

(D DIESE AUFKLEBEMARKE IST AN DEM IN DER ABBILDUNG GEZEIGTEN QRT
ANGEBRACHT UM DARAUF HINZUWEISEN. DASS IM INNERN DES GERATS
EINE LASER»KOMPONENTE BEFINDETr

® PASKRIFIEN SlTl'EFI PA APPARATEN SOM VISAS SOM UPPMANING OM ATI'
APPARATEN OMFATI'AR EN INBYGGD LASERKOMPONENT.

G) DETTE MIEFIKAT ER ANBFIAGT SOM VIST I ILLUSTRATIONEN FOR AT ADVARE
BRUGEREN 0M AT APPARATET INDEHOLDER EN LASEFIKOMPONENT.

® DETI'E M/ERKAT ER sour vrsr PA ILLUSTRATIONEN ANBRAGT PA
lNDERSIDEN AF TOPD/EKSLET ron AT ADVAFIE BFIUGEREN OM AT
voenucene FREMTRENGEN vn. WERE FORBUNDET MED FARE FOR AT
UDSETI'E ere FOR LASERSTRALING.
ADVARSEL- BETJENING AF ANDRE KONTROLLER oo neoumonsn ELLER

BENYTTELSE AF ANDRE FREMGANGSMADER END BESKREVET HERI ER
FORBUNDET MED FARE FOR USD/ETTELSE FOFI LASERSTRALING.

VAFlNIG: APRARATEN INNEHALLER LASER KOMPONENT MED
STRALNING OVERSTIGANDE KLASS 1

"ADVARSEL: USYNLIG LASERSTRALING VED ABNING NAR
SIKKERHEDSAFBRYDERE EFl UDE AF FUNKTION UNDGA
UDSAETI'ELSE FOR STRALING."

"VAHOITUS! SUOJAKOIELOAEI 8AA AVATA, LAITE SISALTAA
msencroorNt JOKA LAHETTAA (NAKYMATONTA) SILMILLE
VAARALLISTA LASERSATEILYA'.

ADVARSEL: USYNLIG LASERBESTRALING NAR DENNE
DELEN ER APEN OG SIKKERHETSSPERREN ER UTKOBLET
UNNGA UTSETI'ELSE FOR STRALING.

CLASS I LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS I LASERAPPARAT
