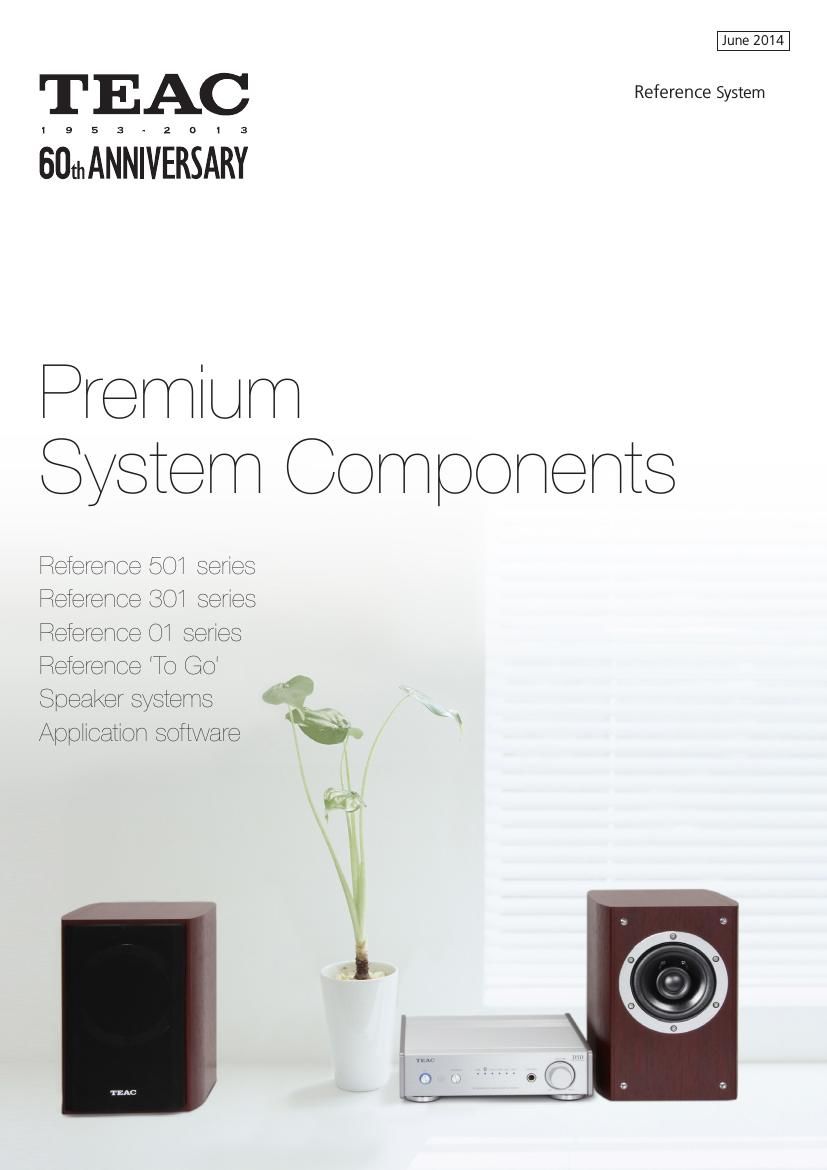

Teac Catalogues 2014 Catalog
This is the 8 pages manual for Teac Catalogues 2014 Catalog.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac Catalogues 2014 Catalog (Ocr-read)
Page 1
2 Specifications: l Type: Coaxial 2-way 1-speaker, Rear Bass-reflex l Units: 100mm Cone (Woofer), 20mm Soft Dome (Tweeter) l Rated Input Power: 20W l Maximum Input Power: 50W l Impedance: 6 ohms l Sensitivity: 85dB/ W/m l Frequency Response: 65Hz to 40kHz l Cross-over Frequency: 3.8kHz l Cabinet Capacity: 4.5 Liters, 275cu. in. l Dimensions (W x H x D): 161 x 230 x 207 mm, 6.3 x 9.1 x 8.1 l Weight (per piece): 2.7 kg, 5.9 lbs. l Included Accessories: Speaker Cable (1.8m, 6ft) x 2, Cork Sheet Feet x 8, Owners Manual (including Warranty Card) lHigh-resolution Digital Audio Streaming from PC/Mac via USB Cable.lBluetooth ® aptX ® Codec High-quality Wireless Audio Streaming. l40W + 40W Class-D Power Amplifier Engineered by ICEpower.lAuto Power-on with Incoming Digital Audio Signal.lSubwoofer Pre-out for Easy Expansion to 2.1ch Home Theater System. High-resolution audio and Bluetooth® playback in a single-box. Specifications: l D/A Converters: BurrBrown PCM1795 l Supported Formats: DSD 2.8M/5.6MHz , PCM 32k /4 4.1k /48k /88.2k/96k/176.4k/192kHz 16/24/32-bit (USB Input), PCM 32k/44.1k/48k/88.2k/96k/176.4k/192kHz 16/24-bit (Coaxial Input), PCM 32k /4 4.1k /48k /88.2k /96kHz 16/24-bit (Optical Input) l Audio Inputs: USB Audio x 1, Coaxial Digital Audio x 1, Optical Digital Audio x 1, Line (RCA) x 2 l Audio Output: Subwoofer Pre-out (RCA) x 1 l Maximum Output Power: 40W + 40W (4 ohms, 1kHz, 10% THD, JEITA), 20 W + 20 W (8 ohms, 1kHz, 10% THD, JEITA) l Rated Output Power: 28W + 28W (4 ohms, 1kHz, 1% THD, JEITA), 15W + 15W (8 ohms, 1kHz, 1% THD, JEITA) l Total Harmonic Distortion: 0.01% (8 ohms, 1kHz, 1W) l Signal-to-Noise Ratio (LINE IN): 95dB (IHF-A / LPF 20kHz, 1kHz 2V Input) l Frequency Response: 2Hz to 100kHz (–5dB) l Headphone Jack : 1/4 (6.3mm) Stereo Jack l Headphone Output Power: 100mW + 100mW (32 ohms Loaded, 1kHz) l Headphone Total Harmonic Distortion: 0.005% l Operating Power: AC 120V, 60Hz (US/Canada), AC 230V, 50Hz (UK / Europe) l Power Consumption: 38W (less than 0.5W at Auto Power Saving Mode, 1.2W at Sleep Mode) l Overall Dimensions (W x H x D): 215 x 61 x 254 mm, 8.5 x 2.4 x 10.0 l Weight: 2.1kg, 4.6 lbs. l Included Accessories: Power Cord, Remote Control (RC-1313), A A A Batteries x 2, Owners Manual (including Warranty Card) Stereo Pre-main Amplifier with USB DAC A I -3 01DA Coaxial 2-way Speaker System L S -301 Stereo Pre-main Amplifierwith USB DAC A I -3 01DA Coaxial 2-way Speaker System L S -301 lWide response, up to 40kHz, Ideal for High-resolution Audio Playback.lAir Direct Center Pole System to Drive Massive Sound Power.lRear Bass-reflex Port for Rich Bass Sound.lA Perfect Loudspeaker Partner for the Reference 301 series. Need to stream high-resolution digital audio from a computer, wirelessly send digital audio from a smartphone, or even digitally expand your TV sound system to a superior 2.1ch Home Theater System? The AI-301DA does it all. Enjoy a new approach to audio...
Page 2
3 TEAC Reference System 2014 Reference 301 lHigh-resolution Digital Audio Streaming from PC/Mac via USB Cable.lAsynchronous Transfer Mode, and 192kHz Up-conversion Option.lDual-monaural Circuit Design Eliminates Interference between Left and Right Channels.lDual-monaural CCLC Headphone Amplifier Circuit Design for Fine Headphone Listening.lXLR Balanced Analog Audio Output for Connection with Professional-grade Equipment.lToroidal-core Power Transformer for Stable Internal Current Supply.lVariable Headphone Output Level Suits to Use as a Headphone Amplifier.lSwitchable Output Mode, Fixed, Variable or Off, for Versatile System Configurations.* * Variable mode lets the UD-301 behave as a Pre-amplifier unit, while Off mode cancels to deliver output signals from XLR /RCA terminals on rear panel, when Headphone Jack is used. Delivering high-performance audio from a desktop component. Specifications: l D/A Converters: BurrBrown PCM1795 x 2 l Supported Formats: DSD 2.8M/5.6MHz , PCM 32k/44.1k/48k/88.2k/96k/176.4k/192kHz 16/24/32-bit (USB Input), PCM 32k/44.1k/48k/88.2k/96k/176.4k/192kHz 16/24-bit (Coaxial Input), PCM 32k /4 4.1k /48k /88.2k /96kHz 16/24 -bit (Optical Input) l Audio Inputs: USB Audio x 1, Coaxial Digital Audio x 1, Optical Digital Audio x 1 l Audio Outputs: Balance (XLR) x 1, Unbalance (RCA) x 1 l Headphone Jack : 1/4 (6.3mm) Stereo Jack l Headphone Output Power: 100mW + 100mW (32 ohms Loaded, 0.1% THD) l Supported Headphone Impedance: 16 to 600ohms l Frequency Response: 5Hz to 55kHz (–3dB) l Signal-to-Noise Ratio: 105dB l Total Harmonic Distortion: 0.0 015% (1kHz) l Operating Power: AC 120V, 60Hz (US/Canada), AC 230V, 50Hz (UK /Europe) l Power Consumption: 10W (less than 0.5W at Auto Power Saving Mode) l Overall Dimensions (W x H x D): 215 x 61 x 238 mm, 8.5 x 2.4 x 9.4 l Weight: 2 . 0 kg, 4.4 lbs. l Included Accessories: Power Cord, Owners Manual (including Warranty Card) USB DAC U D -301 USB DAC U D -301 Leading-edge technologies contained in a small enclosure bring you a new way of enjoying master-tape quality music from a computer . Used as standalone with headphones, or integrated with your existing hi-fi, the UD-301 upgrades your music experience. From the very latest chart albums to songs that you remember from way back, Enjoy them all with Master-grade quality. High-resolution audio data – DSD 2.8M/5.6MHz and PCM 192kHz /24-bit – are available from on-line music stores over the Internet. Youve heard the song on CD a million times but when you hear it in high-res youll hear levels of detail that you never knew were there...
