Teac BX 330 Service Manual
This is the 44 pages manual for Teac BX 330 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac BX 330 Service Manual (Ocr-read)
Page 1
23

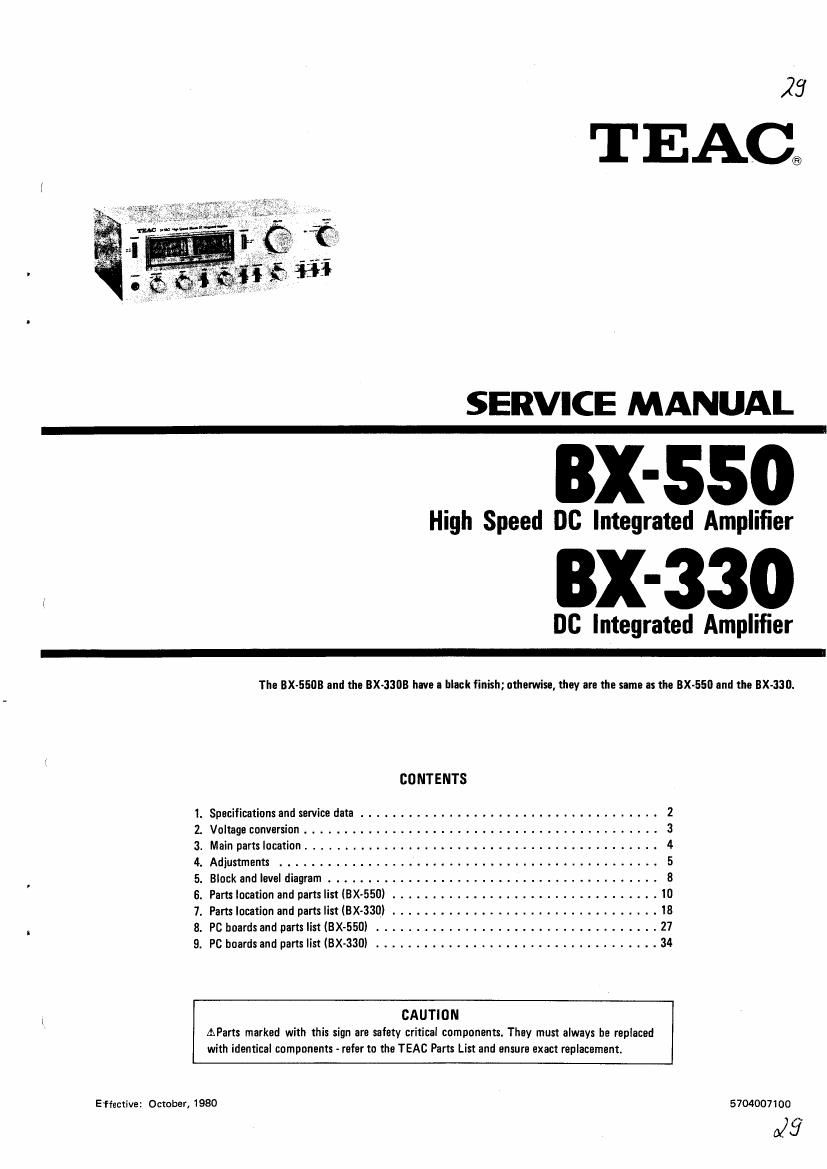

TEAC®
SERVICE MANUAL
BX-SSO
High Speed DC Integrated Amplifier
BX-330
DC Integrated Amplifier
The BX-SSOB and the BX-JJOB have a black finish; otherwise, they are the some as the BX-55ll and the EX-Ililfl.
CONTENTS
1. Specifications and service data ..................................... 2
2. Voltage conversion ............................................ 3
3. Main parts location ............................................ 4
4. Adjustments ............................................... 5
5. Block and level diagram ......................................... 8
6. Parts location and parts list (BX-550) ................................. 10
7. Parts location and parts list (BX-330) ................................. 18
8. PC boards and parts list (BX-550) ................................... 27
9. PC boards and parts list lBXr330l ................................... 34
CAUTION
APEIIS marked with this sign are safety critical components. They must always he replaced
with identical components < refer to the TEAC Parts List and ensure exact replacement.
Effective: OctobEr, 1980 5704007100
