Teac BX 300 BX 500 Service Manual
This is the 35 pages manual for Teac BX 300 BX 500 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac BX 300 BX 500 Service Manual (Ocr-read)
Page 1

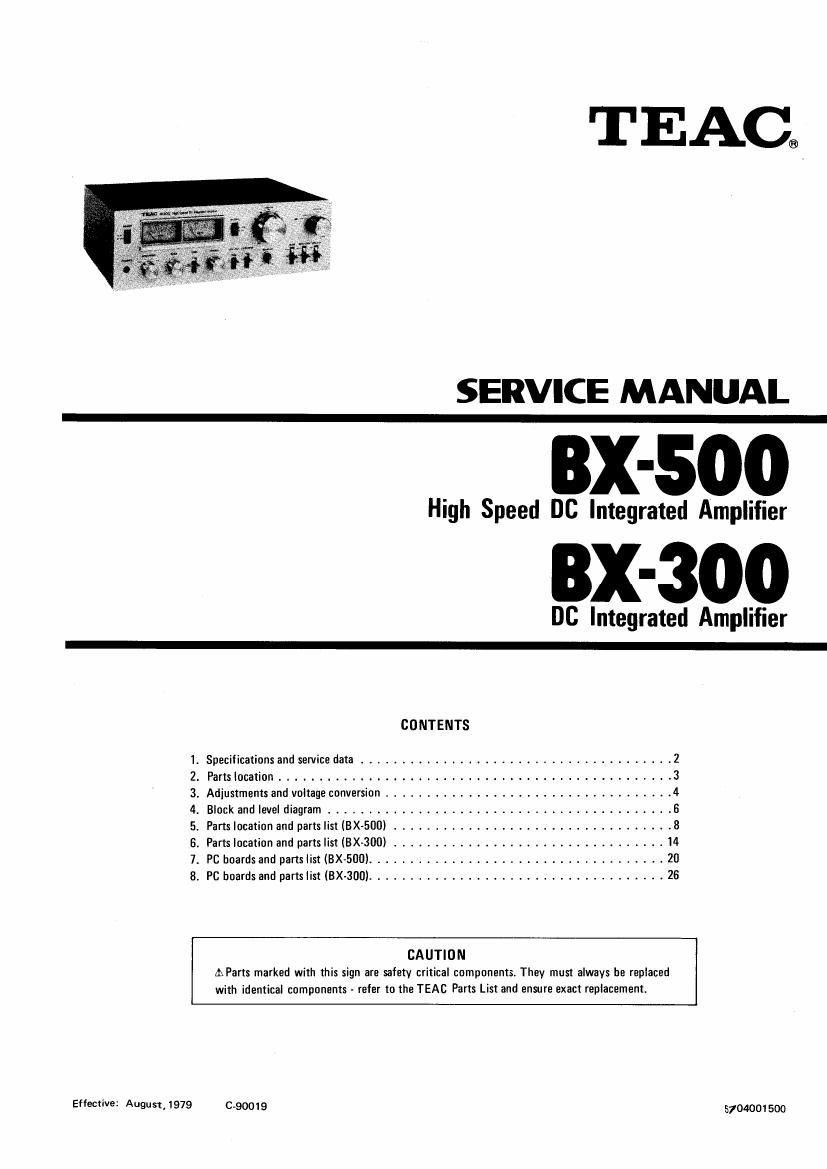

TEAC.
SERVICE MANUAL
BX-SOO
High Speed DC Integrated Amplifier
BX-300
DC Integrated Amplifier
CO NTENTS
1. Specifications and service data ...................................... 2
2. Parts location ................................................ 3
3. Adiustments and voltage conversion ................................... 4
4. Block and level diagram .......................................... 6
5. Parts location and parts list (BX-500) .................................. 8
6. Parts location and parts list (BX-300) ................................. l4
7. PC boards and parts list (BX-500) .................................... 20
8. PC boards and parts list (BX-300) .................................... 26
CAUTIU N
AParts marked with this sign are safety critical components. They must always be replaced
with identical components . refer to the TEAC Parts List and ensure exact replacement.
Effective: August, 1979 0.90019 5104001500
