Teac AX 1000 AX 3000 AX 5000 Service Manual
This is the 19 pages manual for Teac AX 1000 AX 3000 AX 5000 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac AX 1000 AX 3000 AX 5000 Service Manual (Ocr-read)

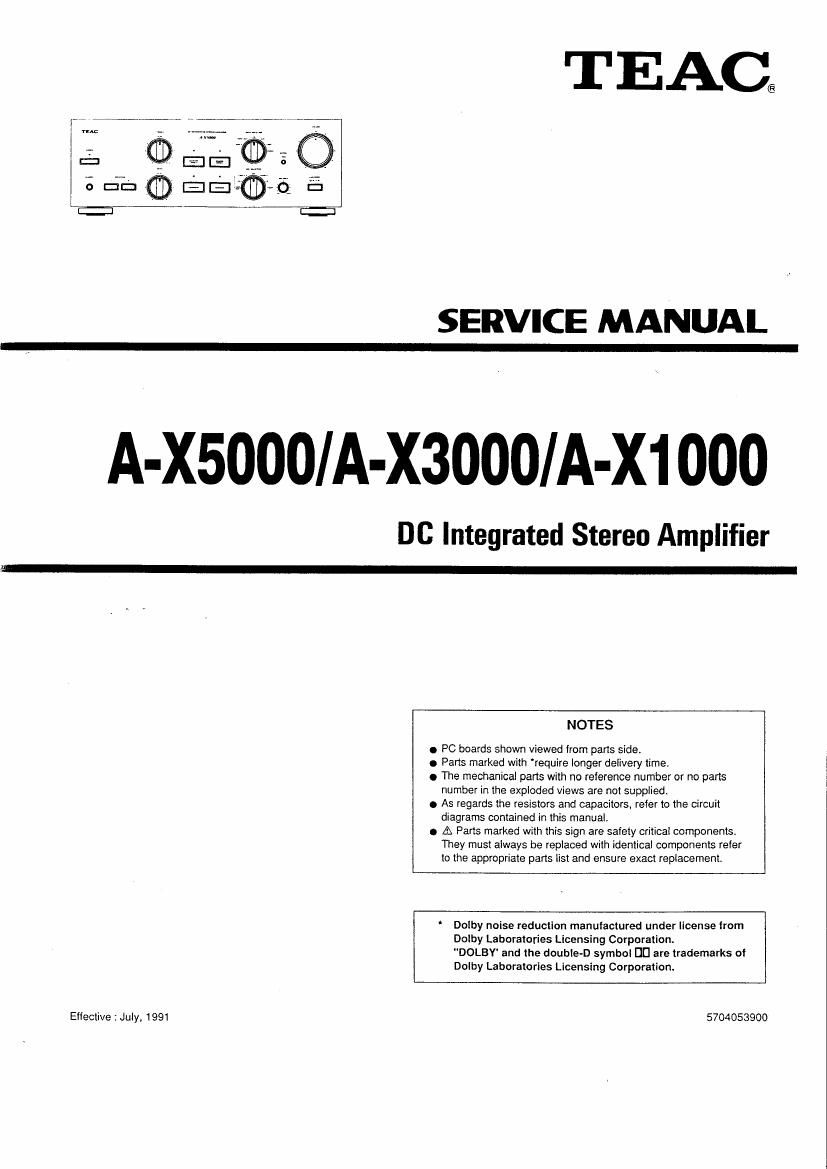

Page 1
TEACE
SERVICE MANUAL
A-X5000/A-X3000/A-X1 000
DC Integrated Stereo Amplifier
NOTES
0 PC boards shown viewed from parts side.
0 Parts marked with 'require longer delivery time.
o The mechanical parts with no reference number or no parts
number in the exploded views are not supplied
a As regards the resistors and capacitors, refer to the circuit
diagrams contained in this manual,
0 A Paris marked with this sign are safety critical components.
They must always be replaced with identical components refer
to the appropriate parts list and ensure exact replacement.
' Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
DOLBY' and the double-D symbol DU are trademarks oi
Dolby Laboratories Licensing Corporation.
Effective : July, 1991 5704053900
