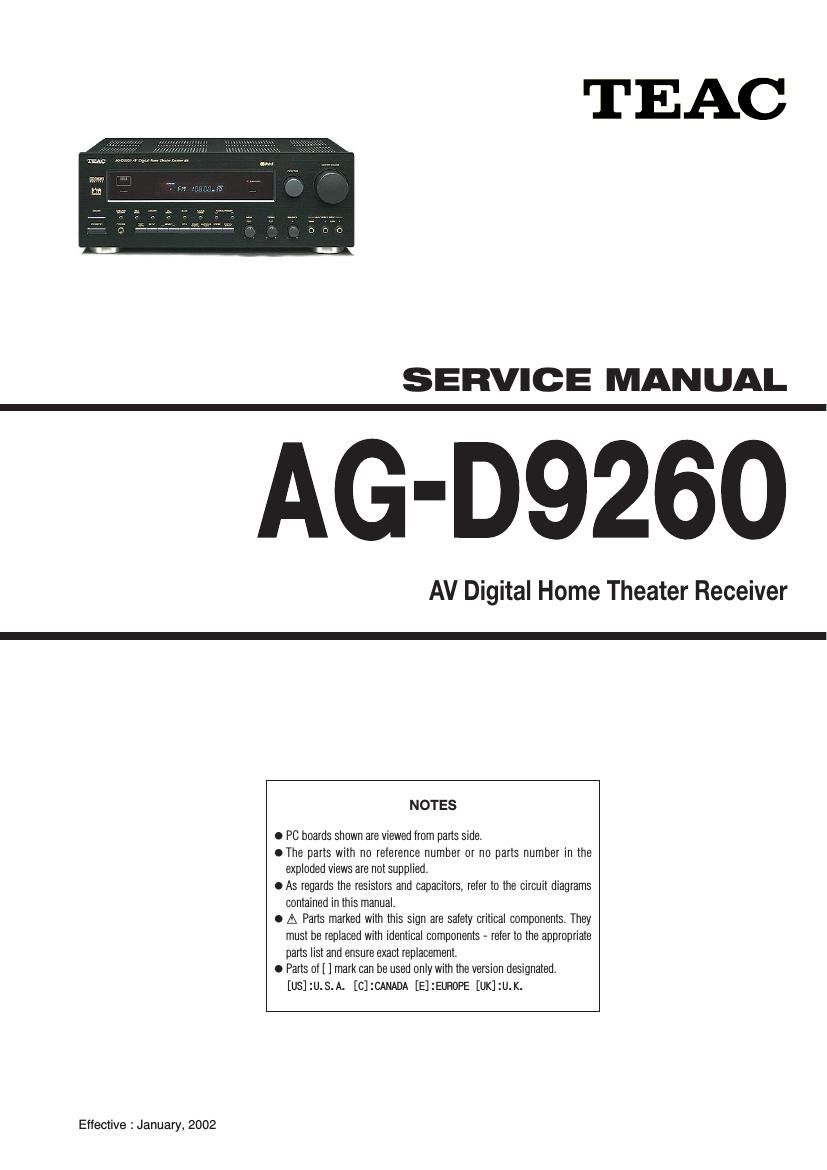

Teac AGD 9260 Service Manual
This is the 32 pages manual for Teac AGD 9260 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac AGD 9260 Service Manual (Ocr-read)
Page 1
2 CONTENTS SPECIFICATIONS ........................................................................\ .........................................................3 SAFETY INSTRUCTIONS ...........................................................\ ........................................................4 MEASUREMENTS AND ADJUSTMENTS ........................................................................\ ................5 FIP DISPLAY ......................................................................\ .............................................. ....................8 DISPLAY PIN CONNECTION ........................................................................\ ................................ ......9 IC BLOCK DIAGRAMS AND PIN FUNCTIONS ........................................................................\ ........10 EXPLODED VIEWS AND PARTS LIST .......................................................................\ ..................... .22 PC BOARDS AND PARTS LIST .......................................................................\ ................................ .24 INCLUDED ACCESSORIES .......................................................................\ ........................................29
Page 2
3 SPECIFICATIONS Amplifier Section Surround Output Power (0.9 % THD, 1 kHz, 8 ohms): 100 + 100 watts (Front) 100 watts (Center) 100 + 100 watts (Rear) Delay Time: DOLBY DIGITAL: REAR 0 – 15 msCENTER 0 – 5 ms DOLBY PRO LOGIC: REAR 15 – 30 ms Audio Input Sensitivity/Impedance: * LINE: 220 mV/47 k ohms Output Level/Impedance: CD-R/TAPE REC: 200 mV/2.2 k ohms Frequency Response:* LINE: 20 Hz – 65 kHz, +1/ –3 dB Signal-to-Noise Ratio:* LINE: 95dB (IHF-A) Tone Control: BASS: ± 10 dB at 100 Hz TREBLE: ± 10 dB at 10 kHz Digital Audio Section Sampling Frequency: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz DIGITAL Input Level/Impedance: DIGITAL 1, 2 (OPTICAL): –15 dBm - –21 dBm DIGITAL 3 (COAXIAL): 0.5 Vp-p / 75 ohms FM Tuner Section (Without notes 100.1 MHz, 65 dBf) Tuning Range: 87.5 MHz – 108.0 MHz (50 kHz steps, [us/c]:100kHz steps) Usable Sensitivity (IHF): Mono: 11.2 dBf 50 dB Quieting Sensitivity: Mono: 15.3 dBf Stereo: 38.5 dBf Capture Ratio: 2.0 dB Image Rejection Ratio: 80 dB ( [us/c]: 45dB ) AM Suppression Ratio: 55 dB Total Harmonic Distortion (1 kHz): Mono: 0.4% Stereo: 0.5% Frequency Response: 30 Hz – 15 kHz, +1/ –1.5 dB Stereo Separation (1 kHz): 40 dB Signal-to-Noise Ratio: Mono: 75 dB Stereo: 70 dB AM Tuner Section Tuning Range: 522 kHz – 1,620 kHz (10 kHz steps) 539 kHz – 1,720 kHz (10 kHz steps: [us/c] ) Usable Sensitivity: 55 dB/m Total Harmonic Distortion: 0.8% at 85 dB/m Signal-to-Noise Ratio: 45 dB at 85 dB/m Video Section Input Sensitivity/Impedance: 1.0 Vp-p/75 ohms Output Level/Impedance: 1.0 Vp-p/75 ohms General Power Requirements: [E/UK] : 230V AC, 50Hz [US/C] : 120V AC, 60Hz Power Consumption: [E/UK] : 300W [US/C] : 2.8A AC Outlets: Switched x 2, Total 100 W max. (1 A max.) (U.S.A./Canada model) Dimensions (W x H x D) 435 x 165 x 350 mm (17-1/8" x 6-1/2" x 13-3/4") Weight (net): [E/UK] : 9.5kg [US/C] : 9.4kg(20-11/16lb) Standard Accessories: AM Loop Antenna x 1 FM T-type Antenna x 1[E/uk] FM T-type Antenna x 1 Remote Control Unit (UR-417) x 1 *LINE means CD, CD-R/TAPE, VCR/VIDEO 1, DBS/VIDEO 2, DVD/VIDEO 3 and AUX/VIDEO 4. < Improvements may result in specifications and features changing without notice. < Illustrations may differ slightly from production models.
