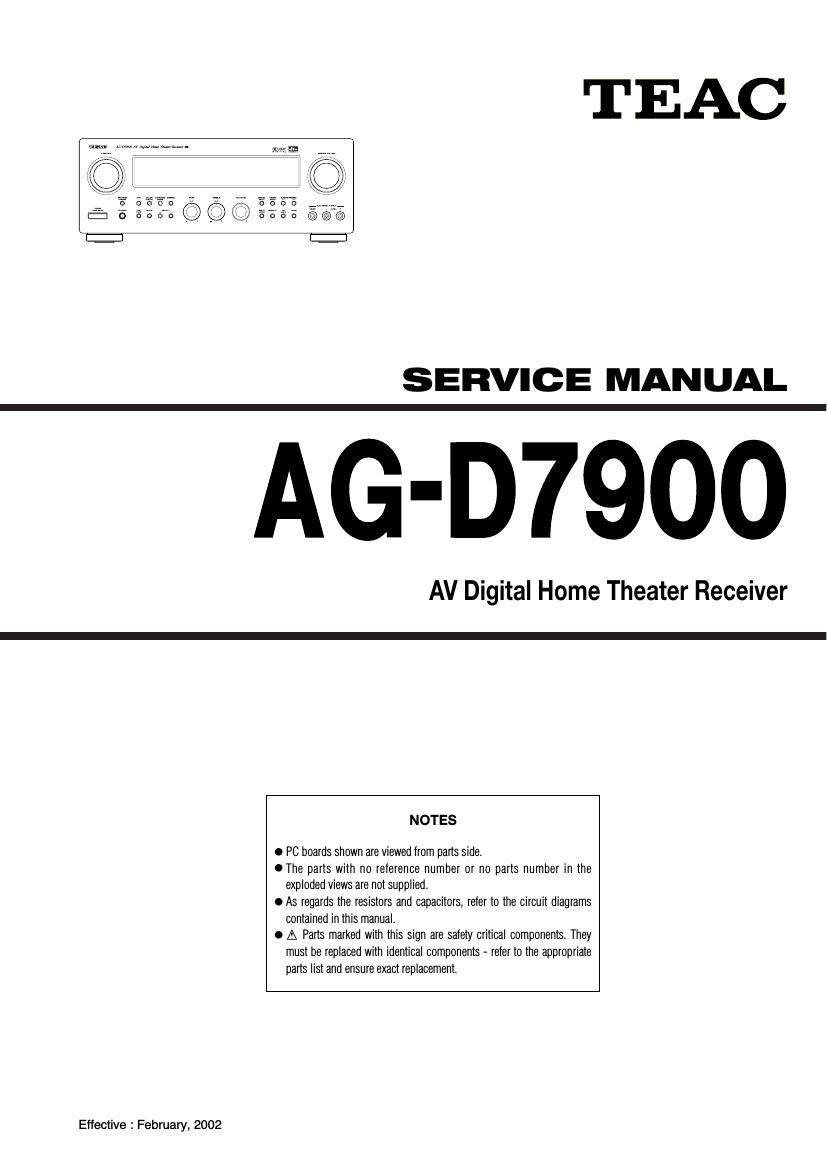

Teac AGD 7900 Service Manual
This is the 34 pages manual for Teac AGD 7900 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac AGD 7900 Service Manual (Ocr-read)
Page 1
2 CONTENTS SPECIFICATIONS ........................................................................\ .........................................................3 SAFETY INSTRUCTIONS ...........................................................\ ........................................................4 MEASUREMENTS AND ADJUSTMENTS ........................................................................\ ................5 FIP DISPLAY ......................................................................\ .............................................. ....................8 DISPLAY PIN CONNECTION ........................................................................\ ................................ ......9 IC BLOCK DIAGRAMS AND PIN FUNCTIONS ........................................................................\ ........10 EXPLODED VIEWS AND PARTS LIST ..........................................\ .................................................. .22 PC BOARDS AND PARTS LIST .......................................................................\ ................................ .24 INCLUDED ACCESSORIES ...................................................\ ............................................................30
Page 2
3 Amplifier Section
Surround Output Power (0.9 % THD, 1 kHz, 8 ohms):
60 + 60 watts (Front)
60 watts (Center)
60 + 60 watts (Rear)
Delay Time:
DOLBY DIGITAL: REAR 0 – 15 ms
CENTER 0 – 5 ms
DOLBY PRO LOGIC: REAR 15 – 30 ms
Audio Input Sensitivity/Impedance:
*
LINE: 220 mV/47 k ohms
Output Level/Impedance:
CD-R/TAPE REC: 200 mV/2.2 k ohms
Frequency Response:
*
LINE: 20 Hz – 65 kHz, +1/ –3 dB
Signal-to-Noise Ratio:
*
LINE: 95dB (IHF-A)
Tone Control:
BASS: ± 10 dB at 100 Hz
TREBLE: ± 10 dB at 10 kHz
Digital Audio Section
Sampling Frequency: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz
DIGITAL Input Level/Impedance:
DIGITAL 1, 2 (OPTICAL): –15 dBm - –21 dBm
DIGITAL 3 (COAXIAL): 0.5 Vp-p / 75 ohms
FM Tuner Section
(Without notes 100.1 MHz, 65 dBf)
Tuning Range:
87.5 MHz – 108.0 MHz (100 kHz steps)
Usable Sensitivity (IHF):
Mono: 11.2 dBf
50 dB Quieting Sensitivity:
Mono: 15.3 dBf
Stereo: 38.5 dBf
Capture Ratio: 2.0 dB
Image Rejection Ratio: 45 dB
AM Suppression Ratio: 55 dB
Total Harmonic Distortion (1 kHz):
Mono: 0.4%
Stereo: 0.5%
Frequency Response: 30 Hz – 15 kHz, +1/ –1.5 dB
Stereo Separation (1 kHz): 40 dB
Signal-to-Noise Ratio:
Mono: 75 dB
Stereo: 70 dB
AM Tuner Section
Tuning Range:
530 kHz – 1,720 kHz (10 kHz steps)
Usable Sensitivity: 55 dB/m
Total Harmonic Distortion: 0.8% at 85 dB/m
Signal-to-Noise Ratio: 45 dB at 85 dB/m
Video Section
Input Sensitivity/Impedance: 1.0 Vp-p/75 ohms
Output Level/Impedance: 1.0 Vp-p/75 ohms
General
Power Requirements:
120 V AC, 60 Hz (U.S.A./ Canada model)
120/230 V AC, 50-60Hz (General Export model)
Power Consumption:
2.5 A
AC Outlets:
Switched x 2, Total 100 W max. (1 A max.)
Dimensions (W x H x D)
435 x 165 x 350 mm (17-1/8" x 6-1/2" x 13-3/4")
Weight (net):
8.2kg (18-1/16lbs) (U.S.A./ Canada model)
8.4kg (18-1/2lbs) (General Export model)
Standard Accessories:
AM Loop Antenna x 1
FM T-type Antenna x 1
Remote Control Unit (UR-417) x 1
*LINE means CD, CD-R/TAPE, VCR/VIDEO 1, DBS/VIDEO 2,
DVD/VIDEO 3 and AUX/VIDEO 4.
