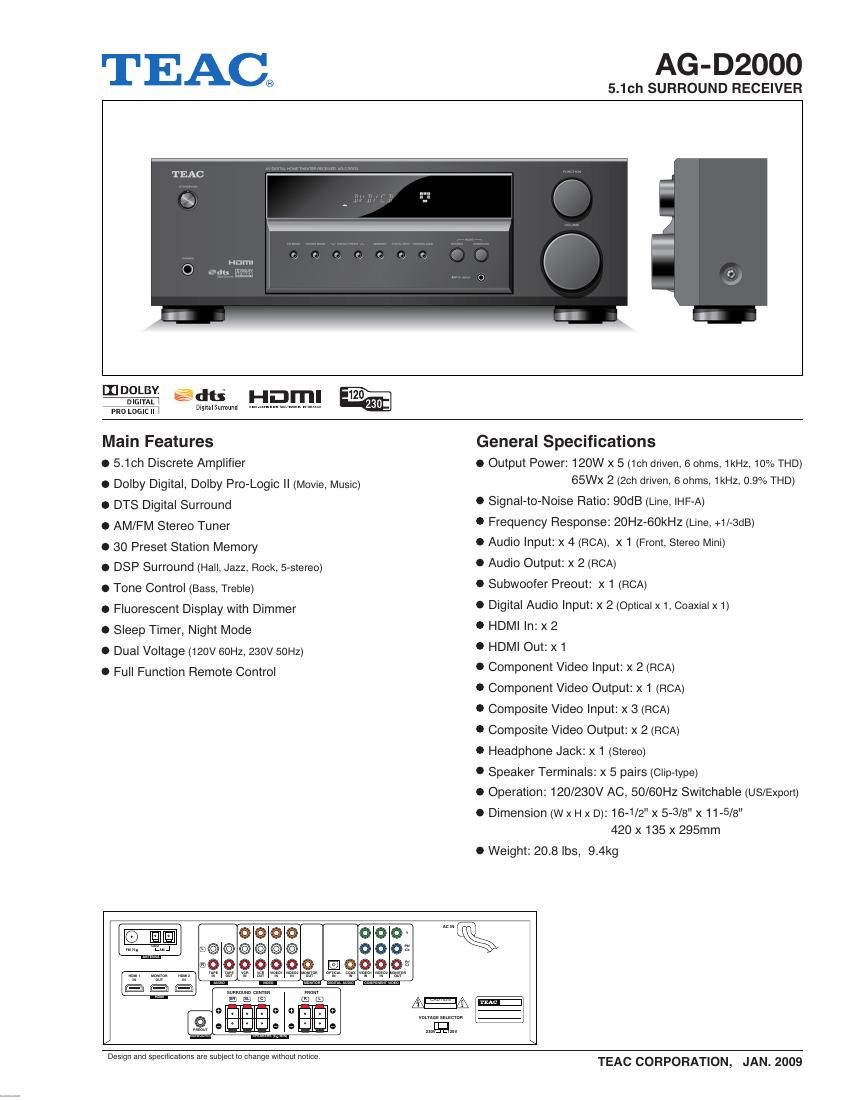

Page 1
AG-D2000
5.1 ch SURROUND RECEIVER
[II DULBY , ,
DIGITAL g (It,
PRU LDEIE M
an 230
Digiiai Suliaimd w
Main Features
0 5.1ch Discrete Amplifier
O Dolby Digital, Dolby Pro-Logic ll (Movie, Music)
0 DTS Digital Surround
O AM/FM Stereo Tuner
0 30 Preset Station Memory
O DSP Surround (Hall, Jazz, Rock, S-stereo)
0 Tone Control (Bass, Treble)
O Fluorescent Display with Dimmer
0 Sleep Timer, Night Mode
0 Dual Voltage (120V 60Hz, 230V 50Hz)
0 Full Function Remote Control
General Specifications
0 Output Power: 120W X 5 (10h driven, 6 ohms, 1kHz, 10% THD)
65WX 2 (2ch driven, 6 ohms, 1kHz, 0.9% THD)
O Signal-to-Noise Ratio: QOdB (Line, IHF-A)
0 Frequency Response: 20Hz-60kHz (Line, +1/-3dB)
0 Audio Input: X 4 (RCA), X 1 (Front, Stereo Mini)
0 Audio Output: x 2 (RCA)
0 Subwoofer Preout: x 1 (RCA)
0 Digital Audio Input: X 2 (Optical x 1, Coaxial x 1)
0 HDMI In: x 2
0 HDMI Out: x 1
0 Component Video input: x 2 (RCA)
0 Component Video Output: x 1 (RCA)
. Composite Video Input: x 3 (RCA)
0 Composite Video Output: x 2 (RCA)
0 Headphone Jack: x 1 (Stereo)
0 Speaker Terminals: x 5 pairs (Clip-type)
0 Operation: 120/230V AC, 50/60Hz Switchable (US/Export)
O Dimension (w x H x D): 16-1/2" x 53/3" x 11-5/8"
420 x 135 x 295mm
0 Weight: 20.3 lbs, 9.4kg
mats) we)
mom
wow
Design and specifications are sumactto change without Home.
TEAC CORPORATION, JAN. 2009
