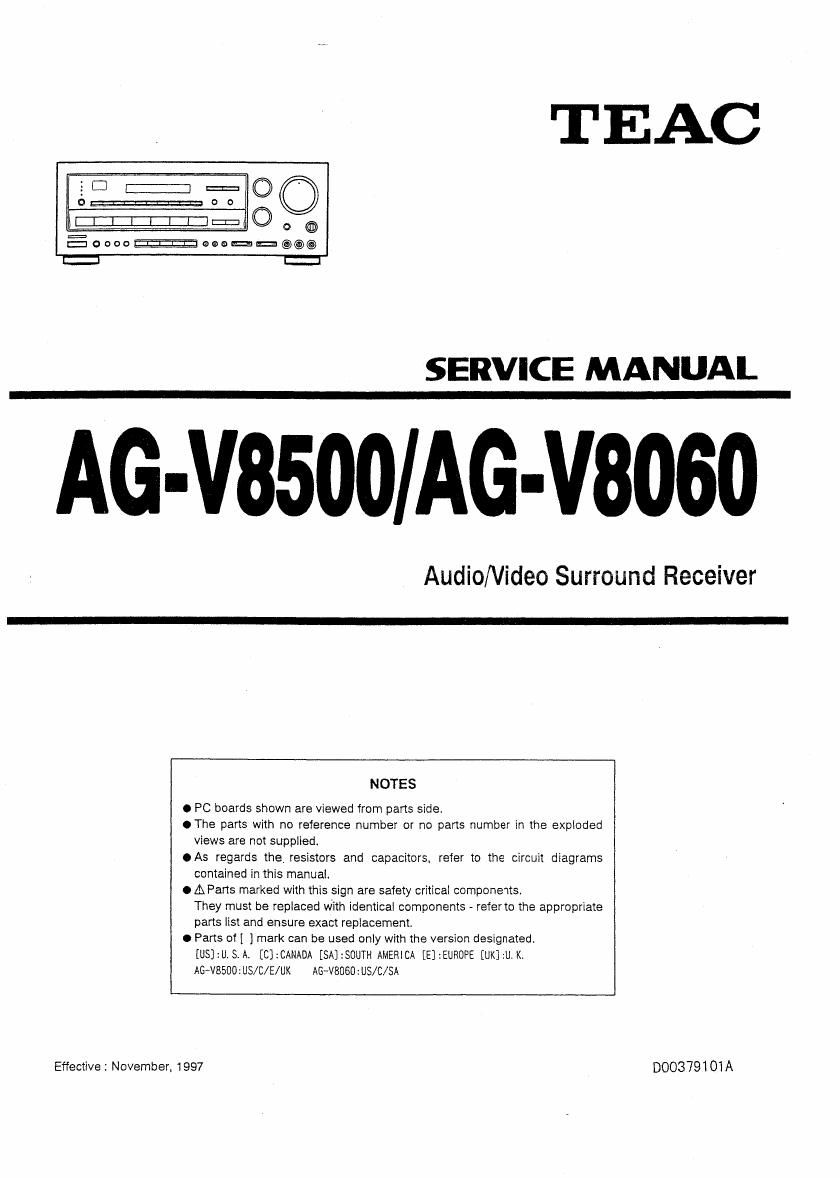

Page 1
TEAC
:3 l:l===©.
Omoo
mm©o®
Economeaamg@u
i__.l L-J
SERVICE MANUAL
AG-V8500/AG-V8060
AudioNideo Surround Receiver
NOTES
0 PC boards shown are viewed from parts side.
oThe parts with no reference number or no parts number in the exploded
views are not supplied.
OAS regards the resistors and capacitors. refer to the circuit diagrams
contained in this manual
0 A Pans marked with this sign are safety critical components.
They must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
0 Parts otl } mark can be used only with the version designated.
[(38] :U, S. A. [C] :CANADA [SA] :SOUlH AMERlCA 1E] :EURDFE {UK} :U. K.
AGNlXSOOMS/C/E/UK AG-V8050:US/C/SA
Effective : November. 1997 0003791 01A
