Teac AG V3020 Service Manual
This is the 52 pages manual for Teac AG V3020 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac AG V3020 Service Manual (Ocr-read)
Page 1

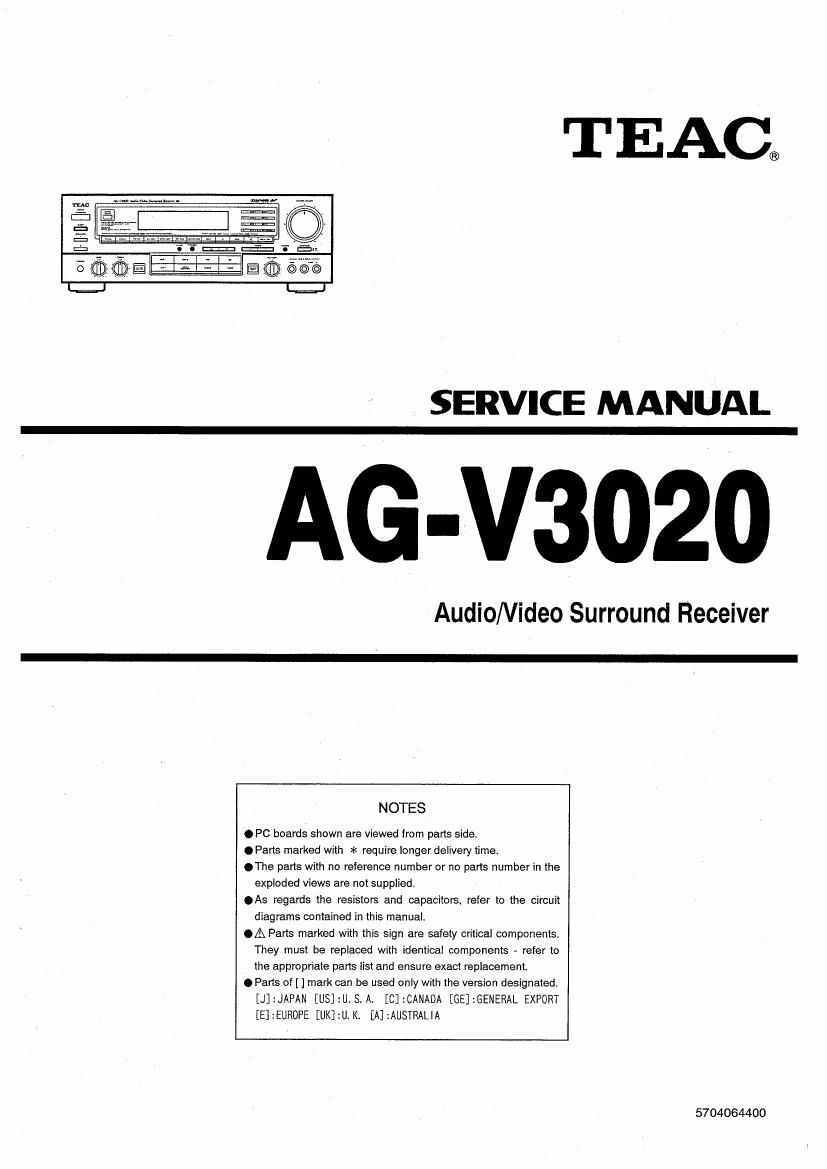

SERVIC
TEAC.
E MANUAL
AG-V3020
AudioNideo Surround Receiver
NOTES
.PC boards shown are viewed from parts side.
.Parts marked with * require longer delivery time.
.The parts with no reference number or no parts number in the
exploded views are not supplied.
.As regards the resistors and capacitors, refer to the circuit
diagrams contained in this manual.
0A Parts marked with this Sign are safety critical components.
They must be replaced with identical components - refer to
the appropriate parts list and ensure exact replacement.
0 Parts of [1 mark can be used only with the version designated.
[J]:JAPAN [US]:U.S.A. [C]:CANADA [GE]:GENERAL EXPORT
[E]:EUROPE [UK]:U.K. [AerUSTRALIA
5704064400
