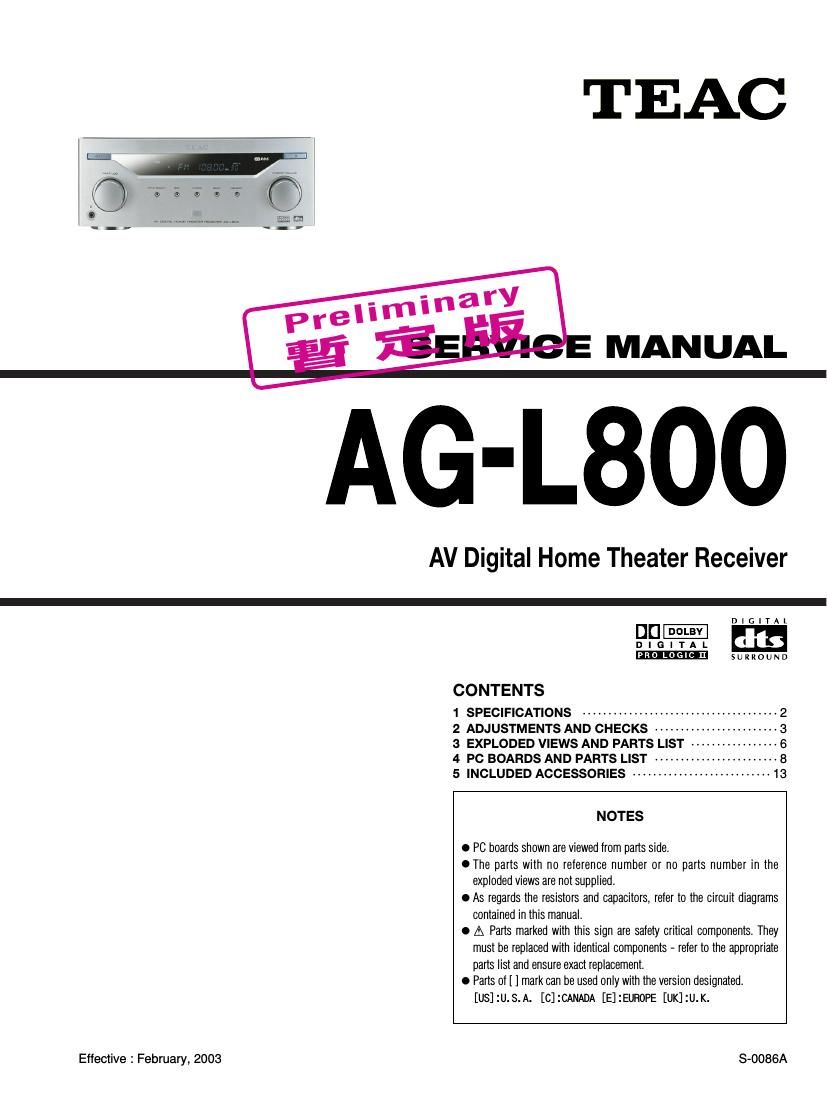

Teac AG L800 Service Manual
This is the 20 pages manual for Teac AG L800 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac AG L800 Service Manual (Ocr-read)
Page 1
1 SPECIFICATIONS µ2µ Amplifier Section Output Power (Stereo) .................................... 80 + 80 watts RMS (0.9 % THD, 20 Hz to 20 kHz, 6 ohms) Surround Output Power Front .................... 50 + 50 watts (0.5 % THD, 1 kHz, 6 ohms) Center .......................... 50 watts (0.5 % THD, 1 kHz, 6 ohms) Rear ...................... 50 + 50 watts (0.5 % THD, 1 kHz, 6 ohms) Total Harmonic Distortion (Stereo) ...... 0.2 % (at 80 watts, 1 kHz) Delay Time DOLBY DIGITAL .......................................... REAR 0 – 15 ms CENTER 0 – 5 ms DOLBY PRO LOGIC II MUSIC ...................... REAR 0 – 15 ms DOLBY PRO LOGIC II MOVIE .................... REAR 10 – 25 ms Audio Input Sensitivity / Impedance LINE (VCR, SAT, AUX) ............................ 380 mV / 47 k ohms Output Level / Impedance HDR/VCR, MD/CD-R, PRE OUT .............. 350 mV / 2.2 k ohms Frequency Response LINE (VCR, SAT, AUX) .................. 20 Hz – 20 kHz, +1 / –3 dB Signal-to-Noise Ratio LINE (VCR, SAT, AUX) ...................................... 70 dB (IHF-A) Tone Control BASS .......................................................... ± 10 dB at 100 Hz TREBLE........................................................ ± 10 dB at 10 kHz Digital Audio Section Sampling Frequency .................. 32 kHz, 44.1 kHz, 48 kHz, 96 kHz DIGITAL Input Level / Impedance COAXIAL .................................................. 0.5 Vp-p / 75 ohms OPTICAL ................................................ –15 dBm to –21 dBm Video Section Input Sensitivity / Impedance .......................... 1.0 Vp-p / 75 ohms Output Level / Impedance................................ 1.0 Vp-p / 75 ohms FM Tuner Section (Without notes 100.1 MHz, 65 dBf) Tuning Range .................. 87.5 MHz – 108.0 MHz (100 kHz steps) (U.S.A./Canada model) 87.5 MHz – 108.0 MHz (50 kHz steps) (Europe/U.K. model) AM Suppression Ratio .......................................................... 45 dB Total Harmonic Distortion (1 kHz) ............................ Mono : 0.4 % Stereo : 0.5 % Frequency Response.......................... 30 Hz – 15 kHz, +1/ –1.5 dB Stereo Separation (1 kHz) .................................................... 40 dB Signal-to-Noise Ratio .............................................. Mono : 75 dB Stereo : 70 dB AM Tuner Section Tuning Range ........................ 530 kHz – 1,710 kHz (10 kHz steps) (U.S.A./Canada model) 522 kHz – 1,629 kHz (9 kHz steps) (Europe/U.K. model) Usable Sensitivity ............................................................ 55 dB/m Total Harmonic Distortion ................................ 1.5 % at 100 dB/m Signal-to-Noise Ratio ...................................... 42 dB at 100 dB/m General Power requirements ........ 120 V AC, 60 Hz (U.S.A./Canada model) 230 V AC, 50 Hz (Europe/U.K. model) Power Consumption ............................ 100 W (STANDBY : 2.5 W) Dimensions (W x H x D)................................ 275 x 111 x 331 mm Weight (net) ........................................................................ 3.9 kg Standard Accessories .................................. AM Loop Antenna x 1 FM Lead-type Antenna x 1 LCD Remote Control System (RC-L800) x 1 Battery (AAA, R03, UM-4) x 4 Owner's Manual x 1 -Design and specifications are subject to change without notice.
Page 2
2 ADJUSTMENTS AND CHECKS µ3µ j ‹ ¤ Preliminary
