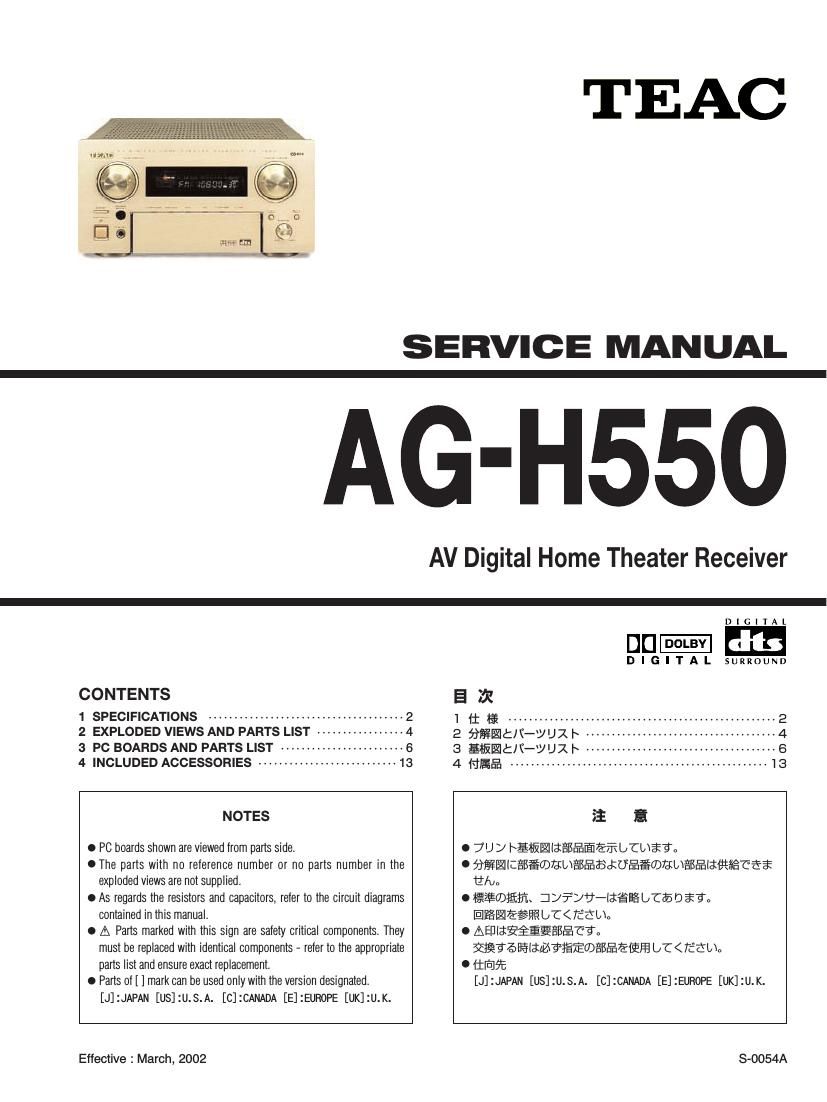

Teac AG H550 Service Manual
This is the 22 pages manual for Teac AG H550 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac AG H550 Service Manual (Ocr-read)
Page 1
1 SPECIFICATIONS
µ2µ
y7
Amplifier Section
Output Power (Stereo) (0.9 % THD, 1 kHz, 8 ohms):
80 watts RMS per channel minimum, both channels
driven into 8 ohms from 20 Hz to 20kHz with no more than
0.9% total harmonic distortion
Surround Output Power (0.9 % THD, 1 kHz, 8 ohms):
55 + 55 watts (Front)
55 watts (Center)
55 + 55 watts (Rear)
Total Harmonic Distortion (Stereo):
0.02% (at 80 watts, 1 kHz)
Delay Time:
DOLBY DIGITAL: REAR 0 – 15 ms
CENTER 0 – 5 ms
DOLBY PRO LOGIC:REAR 15 – 30 ms
Audio Input Sensitivity/Impedance:
*
LINE: 200 mV/47 k ohms
Output Level/Impedance:
VCR/TAPE, CD-R/MD : 185 mV / 2.2 k ohms
Frequency Response:
*
LINE: 20 Hz – 65 kHz, +1 / –3 dB
Signal-to-Noise Ratio:
*
LINE: 85 dB (IHF-A)
Tone Control:
BASS: ± 10 dB at 100 Hz
TREBLE: ± 10 dB at 10 kHz
Digital Audio Section
Sampling Frequency:
32 kHz, 44.1 kHz, 48 kHz
DIGITAL Input Level/Impedance:
COAXIAL: 0.5 Vp-p / 75 ohms
OPTICAL: –15 dBm to –21 dBm
Video Section
Input Sensitivity/Impedance:
1.0 Vp-p / 75 ohms
Output Level/Impedance:
1.0 Vp-p / 75 ohms
FM Tuner Section
(Without notes 100.1 MHz, 65 dBf)
Tuning Range:
87.5 MHz – 108.0 MHz (100 kHz steps) [U.S.A./Canada model]
87.5 MHz – 108.0 MHz (50 kHz steps) [Europe/U.K. model]
AM Suppression Ratio: 45 dB
Total Harmonic Distortion (1 kHz):
Mono: 0.4%
Stereo: 0.5%
Frequency Response:
30 Hz – 15 kHz, +1/ –1.5 dB
Stereo Separation (1 kHz): 40 dB
Signal-to-Noise Ratio:
Mono: 75 dB
Stereo: 70 dB
AM Tuner Section
Tuning Range:
530 kHz – 1,720 kHz (10 kHz steps) [U.S.A./Canada model]
522 kHz – 1,620 kHz (9 kHz steps) [Europe/U.K. model]
Usable Sensitivity: 55 dB/m
Total Harmonic Distortion:
0.8% at 85 dB/m
Signal-to-Noise Ratio:
45 dB at 85 dB/m
General
Power Requirements:
120 V AC, 60 Hz [U.S.A./Canada model]
230 V AC, 50 Hz [Europe/U.K. model]
Power Consumption:
2.8 A [U.S.A./Canada model]
340 W [Europe/U.K. model]
AC Outlets:
Unswitched x 2, Total 100 W max. (1A)
Dimensions (W x H x D)
285 x 145 x 394 mm (11-1/4" x 5-11/16" x 15-1/2")
Weight (net): 9.4kg (20-11/16 lbs)
Standard Accessories:
AM Loop Antenna x 1
FM T-type Antenna x 1 [U.S.A./Canada model]
FM Matching Transformer x 1 [U.S.A./Canada model]
FM Lead-type Antenna x 1 [Europe/U.K. model]
Remote Control Unit (RC-821) x 1
*LINE means VCR/TAPE, DVD, SAT/AUX, CD-R/MD and CD.
