Teac AG H500 Service Manual
This is the 26 pages manual for Teac AG H500 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac AG H500 Service Manual (Ocr-read)
Page 1

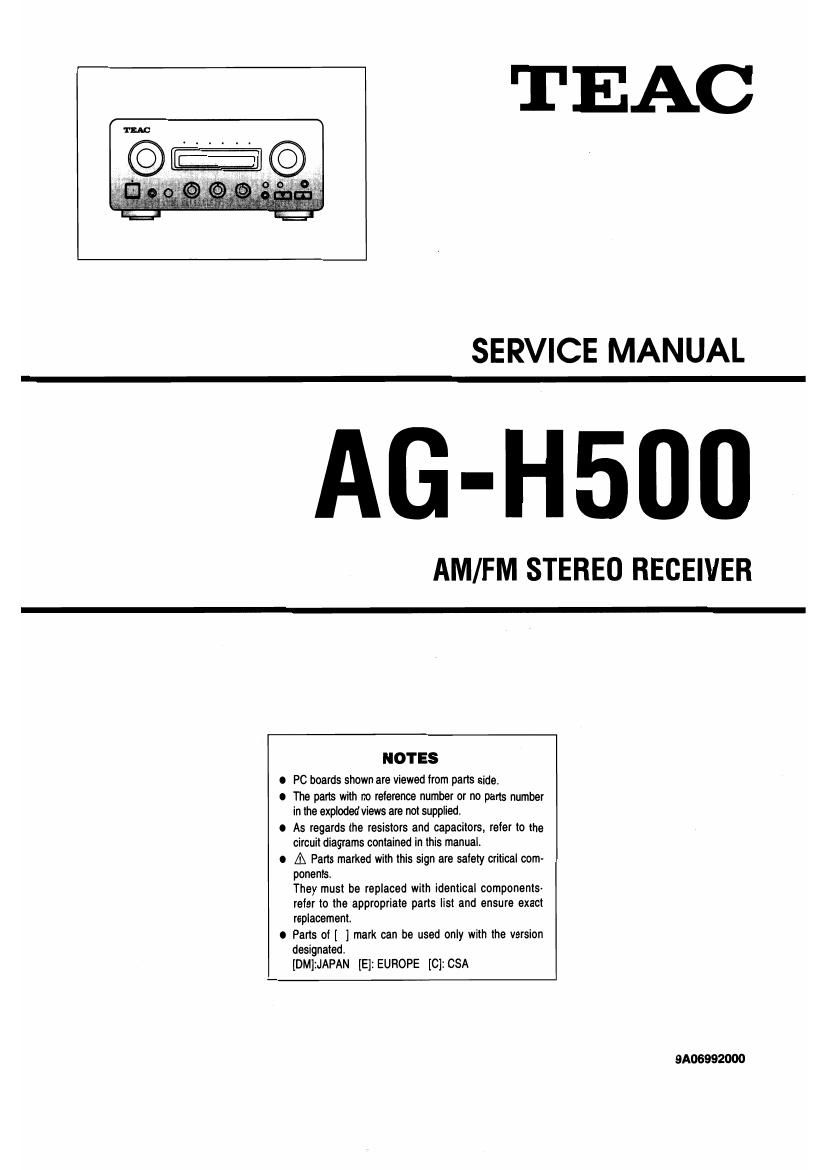

TEAC
SERVICE MANUAL
AG-H500
AM/FM STEREO RECEIVER
NOTES
PC boards shown are viewed lrorn pans side
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors. refer to the
circuit diagrams contained in this manuaL
A Parts marked with this sign are salety critical com-
ponents.
They must be replaced with identical components-
reler to the appropriate parts list and ensure exact
replacement.
Parts of [ ] mark can be used only with the version
designated.
[DM]:JAPAN [E]: EUROPE [C]: CSA
9A06992000
