Teac AG 7 D Service Manual

This is the 22 pages manual for Teac AG 7 D Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 22
Teac AG 7 D Service Manual

Extracted text from Teac AG 7 D Service Manual (Ocr-read)

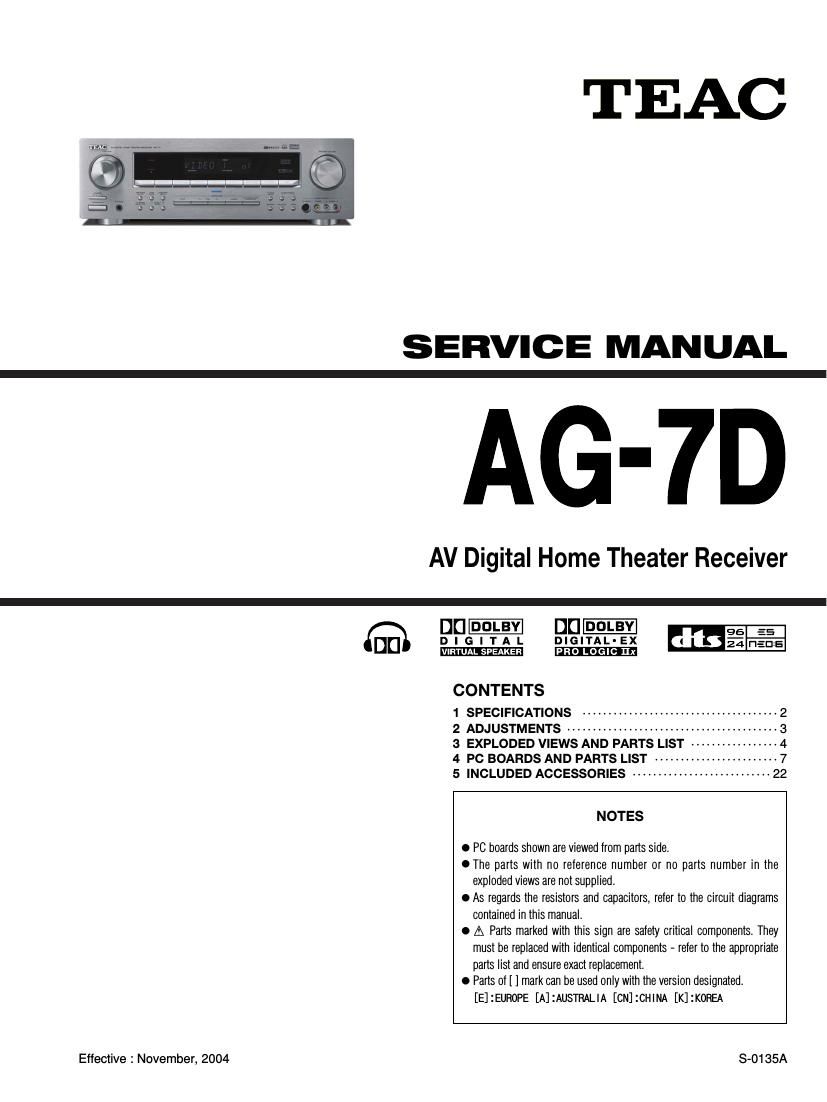

Page 1

TEAC

SERVICE MANUAL

AG-7D

AV Digital Home Theater Receiver

DU DOLBY DE] DOLBY 95 -5
DD DIGITAL DIGITAL-EX m2;

CONTENTS

1 SPECIFICATIONS
2 ADJUSTMENTS ......................
3 EXPLODED VIEWS AND PARTS LIST
4 PC BOARDS AND PARTS LIST ....... ,
5 INCLUDED ACCESSORIES iiiiiiiiiiiiiiiiiiiiiiiiiii 22

NOTES

0 PC boards shown are viewed from parts side.

0 The parts with no reference number or no parts number in the
exploded views are not supplied.

0 As regards the resistors and capacitors, reler t0 the circuit diagrams
contained in this manual.

0 A Paris marked with this sign are safety critical components. They
must be replaced with identical components . refer to the appropriate
parts list and ensure exact replacement.

0 Parts of [ ] mark can be used only with the version designated.

[E] :EUROPE [A] :AUSTRALIA [CN] :CHINA [K] :KOREA

Effective : November, 2004 S-O135A
