Teac AG 360 Service Manual
This is the 14 pages manual for Teac AG 360 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac AG 360 Service Manual (Ocr-read)
Page 1
A ,A A4,Au;._.4u 44...u_¢t. v
Wfli
®®®=
L-l '

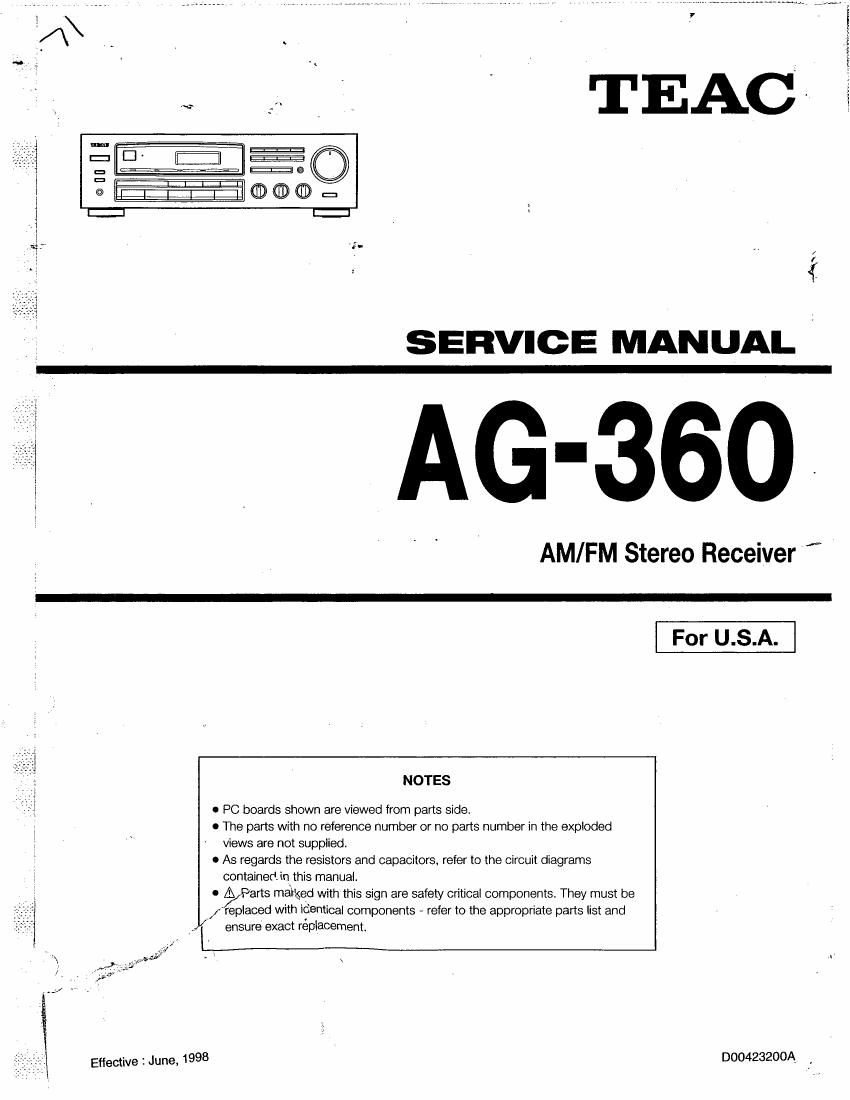

SERVICE MANUAL '
AN
AG-360
AM/FM Stereo Receiver " L
For U.S.A.
NOTES
0 PC boards shown are viewed from parts side.
0 The parts with no reference number or no parts number in the exploded
views are not supplied.
0 As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manuai.
0 A Parts mailged with this sign are safety critical components They must be
r/replaced with identical components » refer to the appropriate parts list and
, ensure exact répiacement.
\
Effective : June, 1998
DOO423200A
