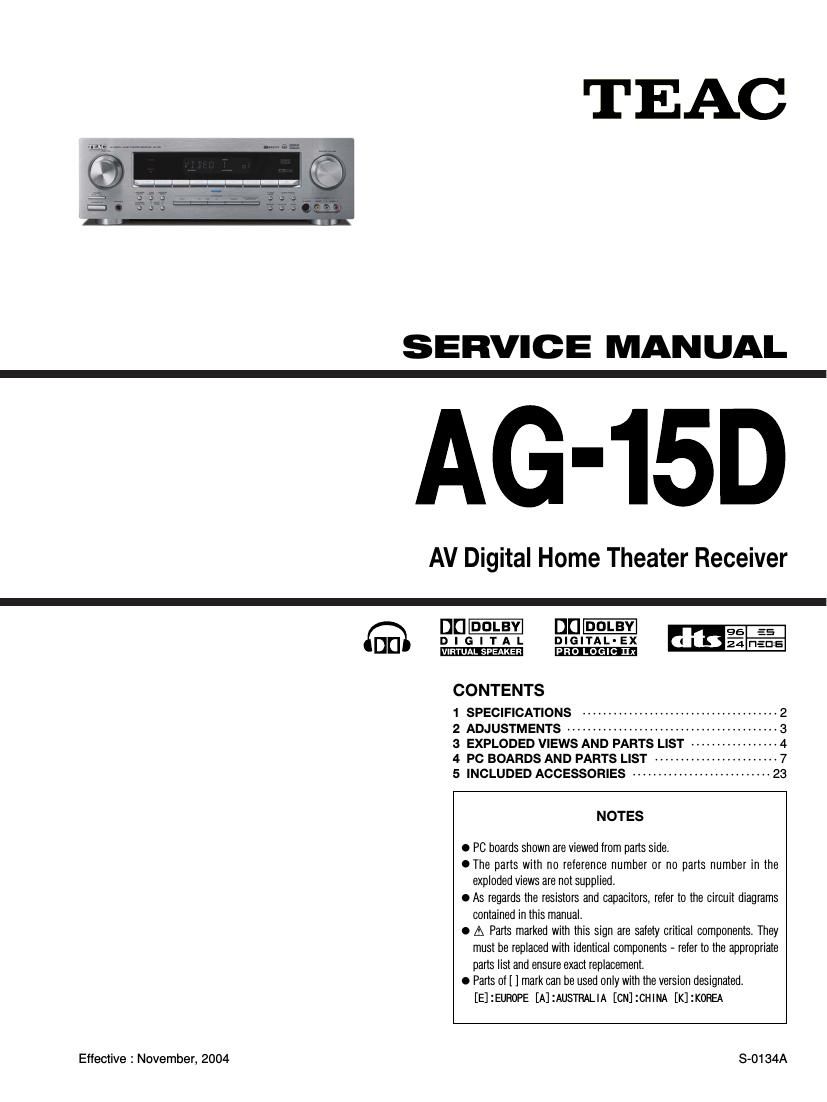

Page 1
TEAC
SERVICE MANUAL
AG-15D
AV Digital Home Theater Receiver
DU DOLBY DE] DOLBY 95 -5
DD DIGITAL DIGITAL-EX m2;
CONTENTS
1 SPECIFICATIONS
2 ADJUSTMENTS .......................
3 EXPLODED VIEWS AND PARTS LIST
4 PC BOARDS AND PARTS LIST ....... ,
5 INCLUDED ACCESSORIES ......................... 23
NOTES
0 PC boards shown are viewed from parts side.
0 The parts with no reference number or no pans number in the
exploded views are not supplied.
0 As regards the resistors and capacitors, reler t0 the circuit diagrams
contained in this manual.
0 A Paris marked with this sign are safety critical components. They
must be replaced with identical components . refer to the appropriate
parts list and ensure exact replacement.
0 Parts of [ ] mark can be used only with the version designated.
[E] :EUROPE [A] :AUSTRALIA [CN] :CHINA [K] :KOREA
Effective : November, 2004 S-O134A
