Teac AG 1000 Service Manual
This is the 16 pages manual for Teac AG 1000 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac AG 1000 Service Manual (Ocr-read)

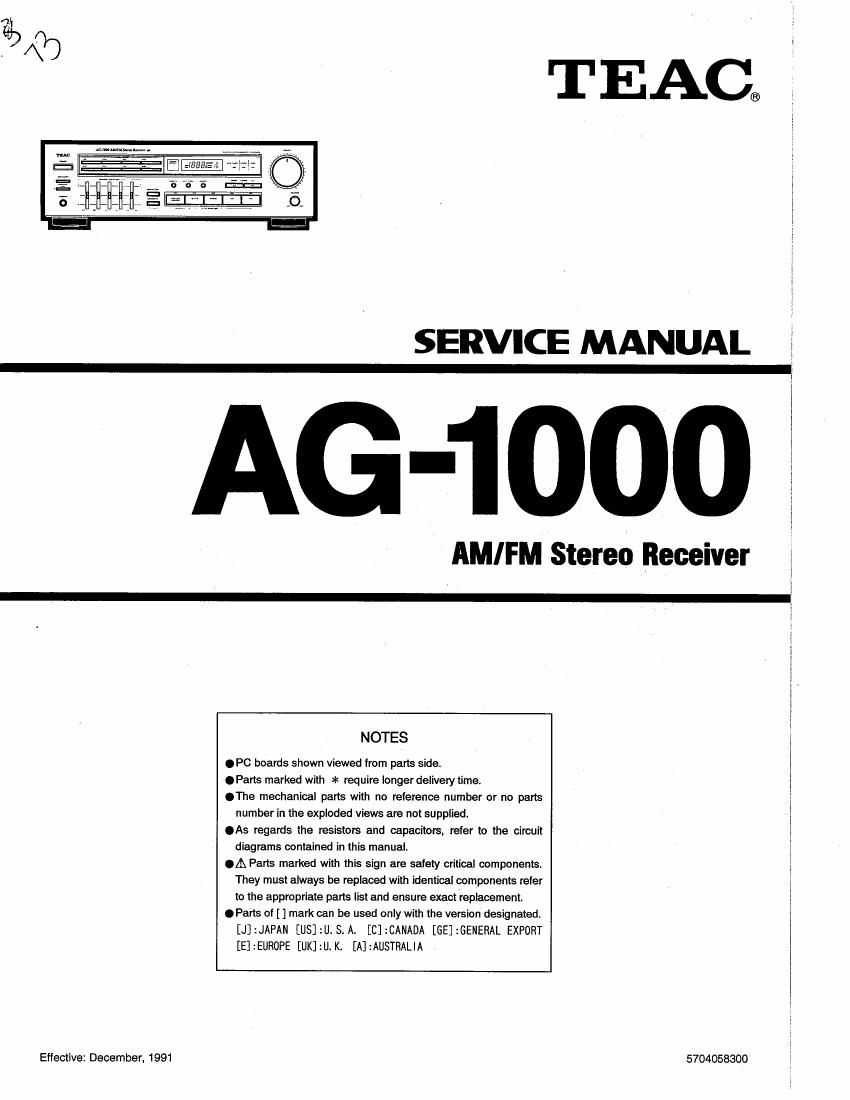

Page 1
TEAC.
SERVICE MANUAL
AG-1000
AMIFM Stereo Receiver
NOTES
.PC boards shown viewed from pans side.
.Parts marked with =l< require longer delivery time.
.The mechanical parts with no reference number or no parts
number in the exploded views are not supplied.
.As regards the resistors and capacitors. refer to the circuit
diagrams contained in this manual.
.43 Parts marked with this sign are safety critical components.
They must always be replaced with identical components refer
to the appropriate parts list and ensure exact replacement.
0 Parts of [] mark can be used only with the version designated.
[J] :JAPAN [US] :U. S. A. [C] :CANADA [GE] :GENERAL EXPORT
[E] :EUROPE [UK] :1]. K. [A] :AUSTRALIA
Effective: December, 1991 5704058300
