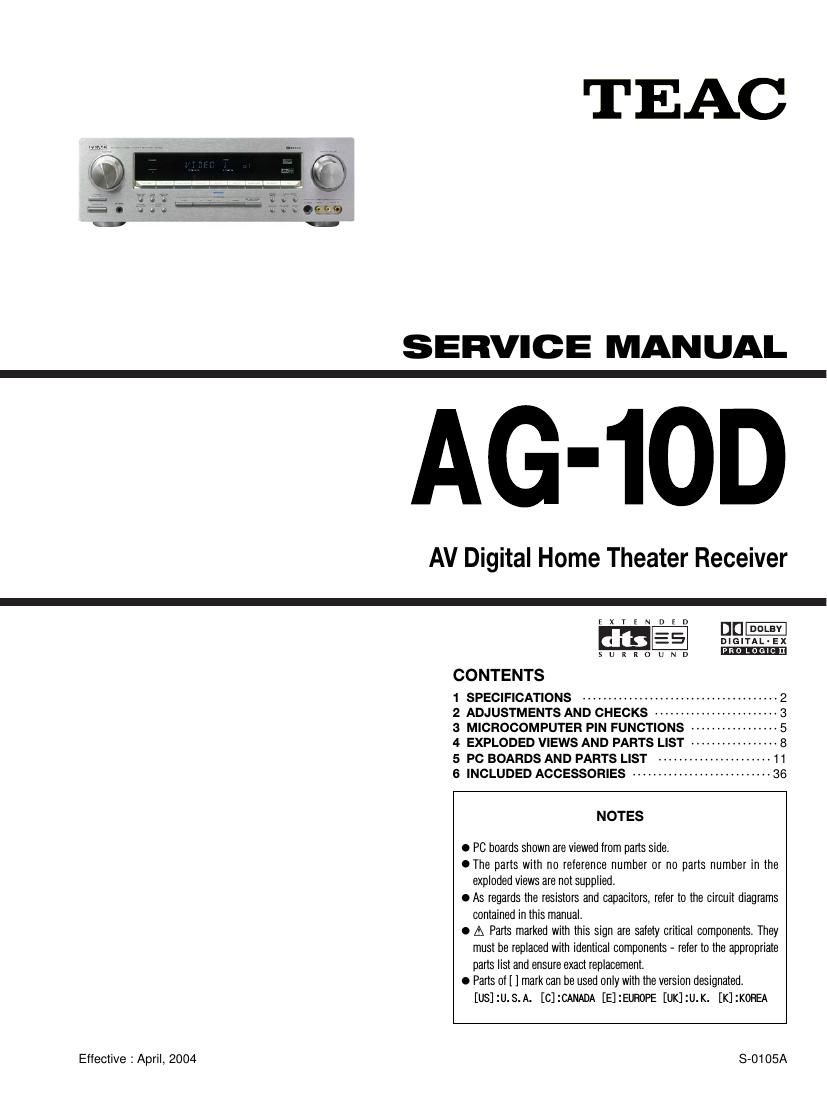

Page 1
Effective : April, 2004
TEAC
SERVICE MANUAL
AG-10D
AV Digital Home Theater Receiver
EXTENDED
un-
DIGITAL'EX
SURROUND PROLOGICE
CONTENTS
1 SPECIFICATIONS ...................................... 2
2 ADJUSTMENTS AND CHECKS ------
3 MICROCOMPUTER PIN FUNCTIONS ..
4 EXPLODED VIEWS AND PARTS LIST -~«
5 PC BOARDS AND PARTS LIST
6 INCLUDED ACCESSORIES .....................
NOTES
0 PC boards shown are viewed from parts side.
I The parts with no relerence number or no parts number in the
exploded views are not supplied.
0 As regards the resistors and capacitors, reler t0 the circuit diagrams
contained in this manual.
0 A Parts marked with this sign are safety critical components. They
must be replaced with identical components 7 refer to the appropriate
parts list and ensure exact replacement.
0 Parts 01 [ ] mark can be used only with the version designated.
[US] :U. S. A. [C] :CANADA [E] :EUROPE [UK] :U. K. [K] :KOREA
8-0105A
