Teac AD 500 Owners Manual
This is the 84 pages manual for Teac AD 500 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac AD 500 Owners Manual (Ocr-read)

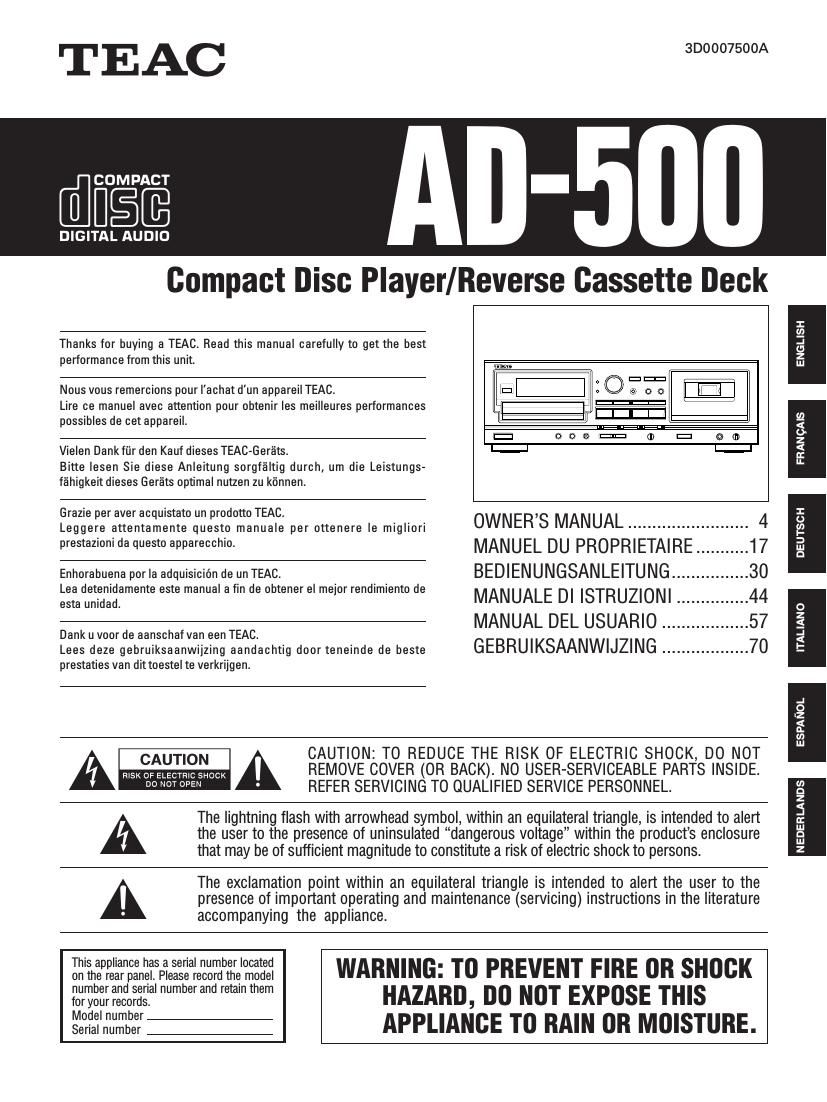

Page 1
_ 2_ IMPORTANT SAFETY INSTRUCTIONS CAUTION:O ORead all of these Instructions.O OSave these Instructions for later use.O OFollow all Warnings and Instructions marked on the audio equipment. 1)Read Instructions - All the safety and operating instructions should be read before the product is operated. 2) Retain Instructions - The safety and operating instructions should be retained for future reference. 3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to. 4) Follow Instructions - All operating and use instructions should be followed. 5)Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards. 7)Water and Moisture - Do not use this product near water _ for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8)Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer. 9) A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn. 10) Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to. 11)Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions. 12) Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. 13)Power-Cord Protection - Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. 14)Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. "Note to CATV system installer:This reminder is provided to call the CATV system installers attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H) NEC - NATIONAL ELECTRICAL CODEELECTRIC SERVICE EQUIPMENT Example of Antenna Grounding as per National Electrical Code, ANSI/NFPA 70 GROUND CLAMP 15) Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 16) Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 17) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in risk of fire or electric shock. 18) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 19)Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 20) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) when the power-supply cord or plug is damaged. b) if liquid has been spilled, or objects have fallen into the product. c) if the product has been exposed to rain or water. d) if the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e) if the product has been dropped or damaged in any way. f ) when the product exhibits a distinct change in performance _ this indicates a need for service. 21) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 22) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 23) Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer. 24)Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
Page 2
_ 3_ SAFETY INFORMATION OCAUTION OACHYUNG OOBSERVERA OADVARSEL This product has been designed and manufactured according to FDA regulat\ ions "title 21, CFR, chapter 1, subchapter J, based on the Radiation Control for Health and Safety Act of 1968", and is classified as a class\ 1 laser product. There is no hazardous invisible laser radiation during operation because invisible laser radiation emitted inside of this produ\ ct is completely confined in the protective housings. The label required in this regulation is shown 1. OCAUTION- DO NOT REMOVE THE PROTECTIVE HOUSING USING A SCREWDRIVER. - USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN T\ HOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. - IF THIS PRODUCT DEVELOPS TROUBLE, CONTACT YOUR NEAREST QUALIFIED SERVICE PERSONNEL, AND DO NOT USE THE PRODUCT\ IN ITS DAMAGED STATE. Optical pickup: Type : KSS-212B Manufacturer : SONY Corporation Laser output : Less than 0.4 mW on the objective lens Wa velength : 760 _ 800nm 1 THIS LABEL IS ATTACHED TO THE PLACE AS ILLUSTRATED TO INFORM THAT THE APPARATUS CONTAINS A LASER COMPONENT. 1 DIESE AUFKLEBEMARKE IST AN DEM IN DER ABBILDUNG GEZEIGTEN ORT ANGEBRACHT UM DARAUF HINZUWEISEN, DASS IM INNERN DES GERÄTS EINE LASER-KOMPONENTE BEFINDET. 1 PÅSKRIFTEN SITTER PÅ APPARATEN SOM VISAS SOM UPPMANING OM ATT APPARATEN OMFATTAR EN INBYGGD LASERKOMPONENT. 1 DETTE MÆRKAT ER ANBRAGT SOM VIST I ILLUSTRATIONEN FOR AT ADVARE BRUGEREN OM AT APPARATET INDEHOLDER EN LASERKOMPONENT. 2 DETTE MÆRKAT ER SOM VIST PÅ ILLUSTRATIONEN ANBRAGT PÅ INDERSIDEN AF TOPDÆKSLET FOR AT ADVARE BRUGEREN OM AT YDERLIGERE FREMTRÆNGEN VIL VÆRE FORBUNDET MED FARE FOR AT UDSÆTTE SIG FOR LASERSTRÅLING. ADVARSEL - BETJENING AF ANDRE KONTROLLER OG REGULATORER ELLER BENYTTELES AF ANDRE FREMGANGSMÅDER END BESKREVET HERI ER FORBUNDET MED FARE FOR UDSÆTTELSE FOR LASERSTRÅLING. VARING: APPARATEN INNEHÅLLER LASER LOMPONENT MED STRÅLNING ÖVERSTIGANDE KLASS 1. "ADVARSEL: USYNLIG LASERSTRÅLING VED ÅBNING NAR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSAETTELSE FOR STRÅLING" "VAROITUS! SUOJAKOTELOA EI SAA AVATA. LAITE SISÄLTÄÄ LASERDIODIN. JOKA LÄHETTÄ (NÄKYMÄTÖNTÄ) SILMILLE VAARALLISTA LASERSÄTEILYÄ". ADVARSEL: USYNLIG LASERBESTRÅLING NÅR DENNE DELEN ER ÅPEN OG SIKKERHETSSPERREN ER UTKOBLET UNNGÅ UTSETTELSE FOR STRÅLING. CLASS 1 LASER PRODUCT LUOKAN 1 LASERLAITE KLASS 1 LASERAPPARAT CERTIFICATION THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURETEAC CORPORAT ON 3 7 3 NAKA CHO MUSASHINO SHI TOKYO JAPAN MANUFACTURED TIF For U.S.A. 1 2 CAUTION NVISIBLE LASER RAD ATION WHEN OPEN AND NTERLOCKS DEFEATED AVOID EXPOSURE TO BEAM VORSICHT! UNSICHTBARE LASERSTRAHLUNGTRITT AUS WENN DECKEL GEÖFFNET UND WENN S CHERHE TSVERRIEGELUNG ÜBERBRÜCKT IST N CHT DEM STRAHL AUSSETZEN ! VARNING OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRR ÄR URKOPPLAD STRÄLEN ÄR FARLIG ADVARSEL USYNL G LASERSTRÅL NG VED ÅBNING NÅRSIKKERHEDSAFBRYDERE ER UDE AF FUNKTION UNDGÅ UDSÆTTELSE FOR STRÅL NG VAROITUS! SUOJAKOTELOA EI SAA AVATA LAITE SISÄLTÄÄ LASERDIODIN JOKA LÄHETTÄÄ (NÄKYMÄTÖNTÄ) SILMILLE VAARALLISTA LASERSÄTEILYÄ ADVARSEL USYNL G LASERBESTRÅLING NÅR DENNE DELEN ER ÅPEN OG SIKKERHETSSPERREN ER UTKOBLET UNNGÅ UTSETTELSE FOR STRÅLING 1
Page 42
_ 43_ DEUTSCH AllgemeinSpannungsversorgung: 120/230 V Wechselspannung, 50/60 Hz (USA/Kanada/Allgemeines Export- modell) 230 V Wechselspannung, 50 Hz (Europa/ Großbritannien) 240 V Wechselspannung, 50 Hz (Australien) Leistungsaufnahme: 14 W Abmessungen (BxHxT): 435 x 145 x 290 mm Gewicht: 5,3 kg Mitgeliefertes Zubehör Drahtlose Fernbedieneinheit RC-619 Cinchstecker-Kabel x 2 Batterie (SUM-3, AA, R6) x 2 O Änderungen der technischen Daten und Konstruktion jederzeit ohne Vorankün- digung vorbehalten. O Die Abbildungen in dieser Anleitung können leicht von der Geräteaus- führung abweichen. CD-Spieler(Audio) Zahl der Kanäle: 2 Frequenzgang: 10 -20.000 Hz ±0,5 dB Signal/Rausch-Abstand: 90 dB Dynamikbereich: 90 dB Klirrfaktor: 0,02 % (1 kHz) Gleichlaufschwankungen: Nicht meßbar (quarzgenau) Kanaltrennung: 75 dB Ausgang: 2 Veff. Digitalfilter: 4fach-Oversampling Analogfilter: 3. Ordnung (Signalformat) Samplingrate: 44,1 kHz D/A-Wandler: 16 Bit linear/Kanal Kanal-Bit-Rate: 4,3218 Mb/Sek Kanal-Modulationscode: EFM Fehlerkorrektur: CIRC (Abnehmer) Typ: Gesteuerter optischer Dreistrahl- Laser-Tonabnehmer Linse: Zweidimensionaler Parallelantrieb Laser: GaAlAs-Halbleiter-Laser Wellenlänge: 780 nm CassettendeckSpursystem: 4-Spur/2-Kanal-Stereo Köpfe: Aufnahme/Wiedergabe x 1 (Umkehrkopf), Löschen x 1 Cassetten: C-60, C-90 Bandgeschwindigkeit: 4,76 cm/Sek. Motor: Gleichstrom-Servo-Motor x 1 Gleichlaufschwankungen: 0,08 (W. RMS) Frequenzgang (gesamt):50 - 15.000 HZ ±3 dB, Metall 50 - 15.000 HZ ±3 dB, Chrom 50 - 14.000 HZ ±3 dB, Normal Signal/Rausch-Abstand (gesamt): 59 dB (Dolby-Rauschunter. aus, 3% Klirrfaktor, gewichtet), 69 dB (Dolby Rauschunter. ein, größer 5 kHz) Umspuldauer: Ca. 120 Sek. (mit C-60- Cassette) Eingang: Line, 87 mV (Mind. 50 kohm Eingangsimpedanz) Ausgang: Line; 0,46 V (Mind. 50 kohm Lastimpedanz) Kopfhörer; 1 mV/8 ohm Technische Daten
