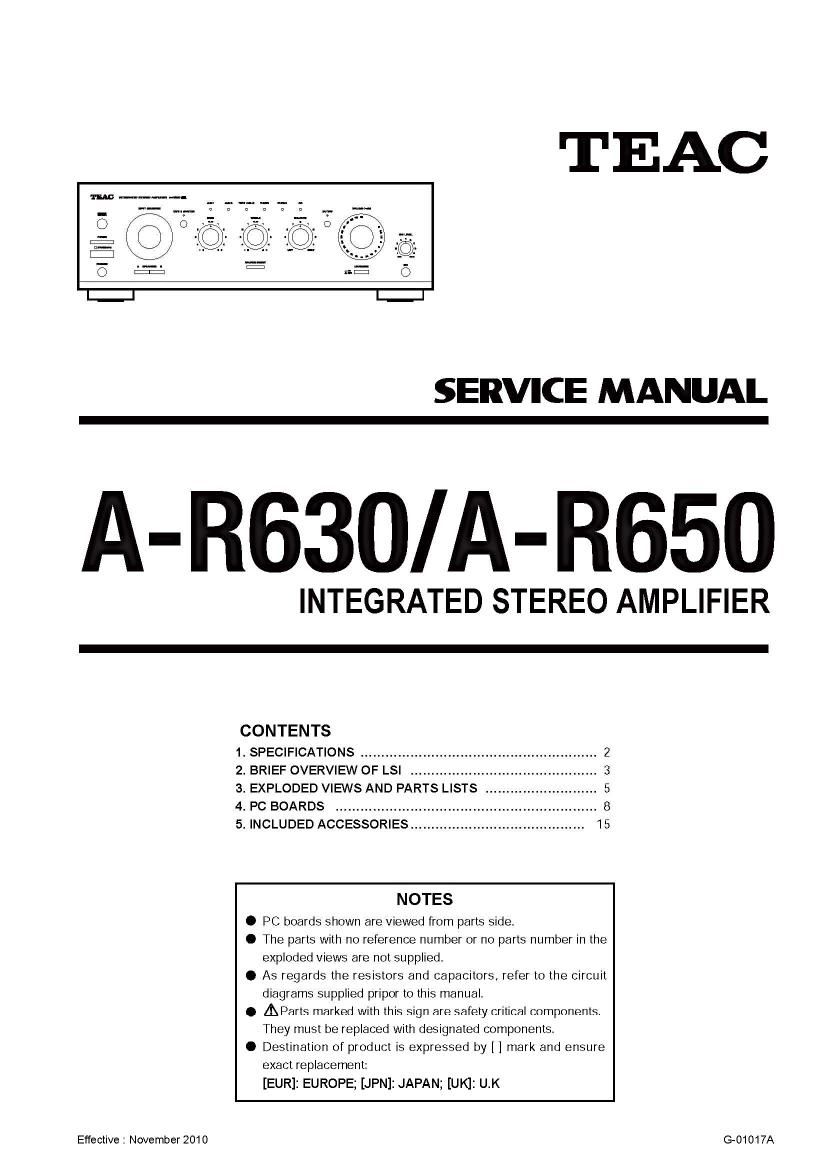

Page 1
TEAC
SERVICE MANUAL
A- R630/A- R650
INTEGRATED STEREO AMPLIFIER
CONTENTS
1. SPECIFICATIONS ..
2. BRIEF OVERVIEW OF LSI .
3. EXPLODED VIEWS AND PARTS LISTS ..
4. PC BOARDS ..
5. INCLUDED ACCESSORIES .......................................... I
moouwwm
NOTES
0 PC boards shown are Viewed from parts Side.
0 The parts with no reference number or no parts number in the
exploded Views are not supplied.
0 As regards the resistors and capacitors, refer to the circuit
diagrams supplied pripor to this manual.
0 AParts marked with this sign are safety critical components.
They must be replaced with designated components.
0 Destination of product is expressed by [] mark and ensure
exact replacement:
[EUR]: EUROPE; [JPN]: JAPAN; [UK]: U.K
Effective: November 2010 G-01017A
