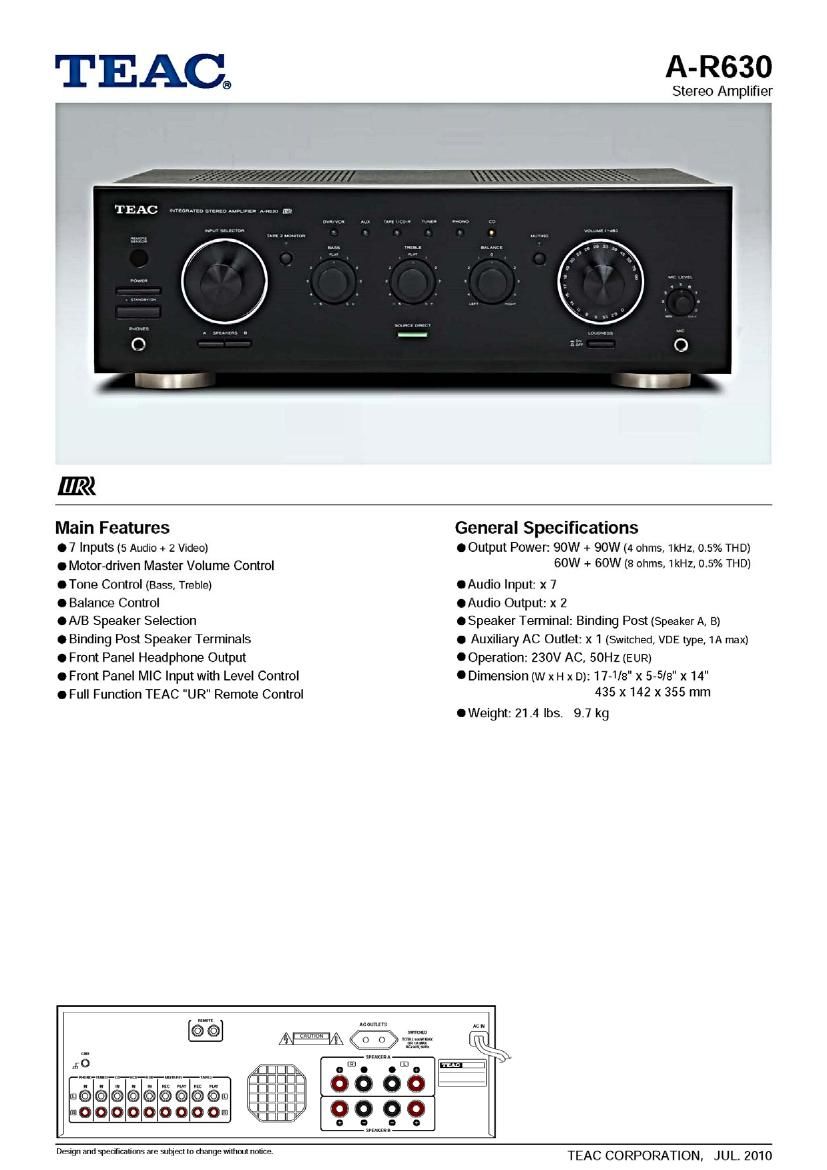

Page 1
A-R630
Stereo Amplifier
MRI
Main Features
0 7 Inputs (5 Audio + 2 Video)
0 Motor-driven Master Volume Control
.Tone Control (Bass. Treble)
0 Balance Control
0 NB Speaker Selection
0 Binding Post Speaker Terminals
O From Panel Headphone Output
0 Front Panel MIC Input with Level Control
I Full Function TEAC UR" Remote Control
General Specifications
0 Output Power: 90W + 90W (4 ohms, 1kHz, 0.5% THD)
60W + 60W (8 ohms, 1kHz. 0.5% THD)
OAudio Input: x 7
.Audio Output: x 2
oSpeaker Terminal: Binding Post (Speaker A, B)
0 Auxiliary AC Outlet: X I (Swttched, VDE type, 1A max)
OOperation: 230V AC. 50HZ (EUR)
0 Dimension (w x H x D): 171/sx 5-5/8" x 14"
435 x 142 x 355 mm
.Weight: 21A lbs 97 kg
©©
00
menu!"
[)me and gleuflmlwrb at: when m amp mum mm
TEAC CORPORATION. JUL, 2010
