Teac A R610 Service Manual
This is the 54 pages manual for Teac A R610 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac A R610 Service Manual (Ocr-read)
Page 1

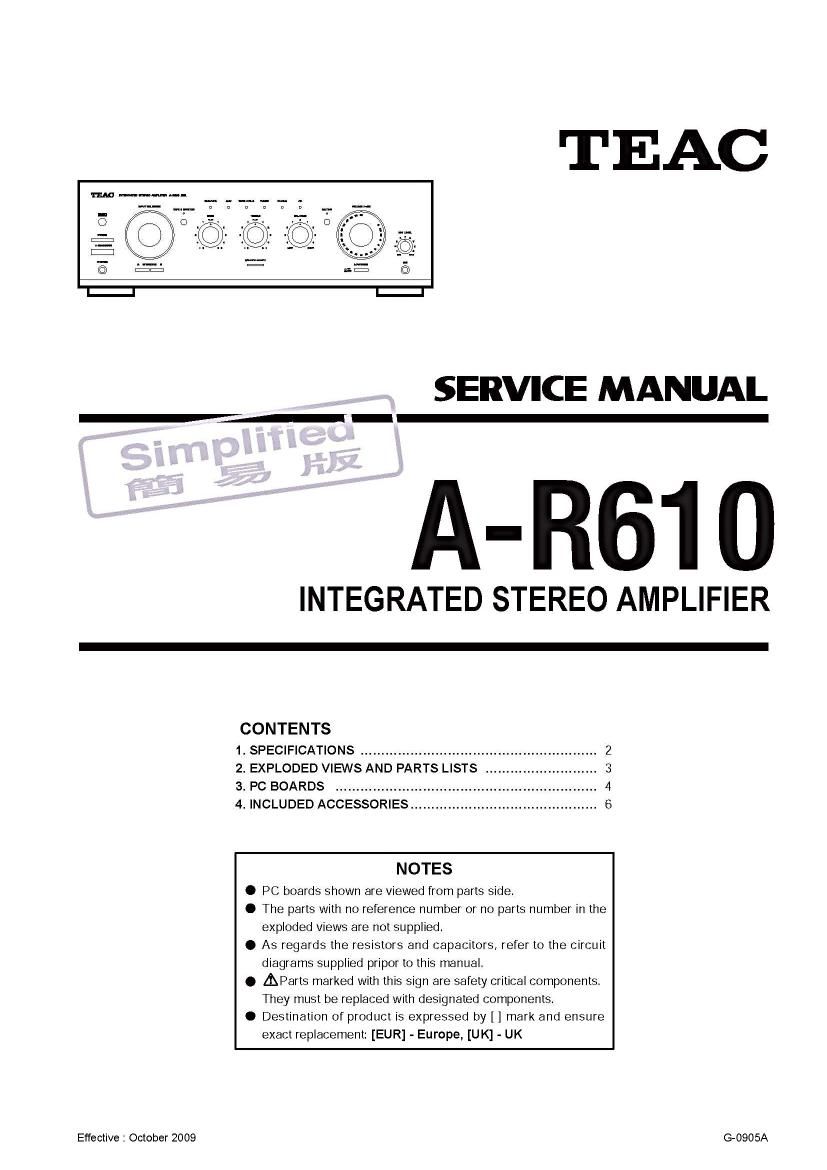

TEAC
SERVICE MANUAL
A- R61 0
INTEGRATED STEREO AMPLIFIER
CONTENTS
1. SPECIFICATIONS .........................................................
2. EXPLODED VIEWS AND PARTS LISTS ..
3. PC BOARDS
4. INCLUDED ACCESSORIES.
NOTES
0 PC boards shown are Viewed from parts Side.
0 The parts with no reference number or no parts number in the
exploded Views are not supplied.
0 AS regards the resistors and capacitors, refer to the circuit
diagrams supplied pripor to this manual.
0 AParts marked with this sign are safety critical components.
They must be replaced with designated components.
0 Destination of product is expressed by [] mark and ensure
exact replacement: [EUR] - Europe, [UK] - UK
Effective : October 2009
G-0905A
