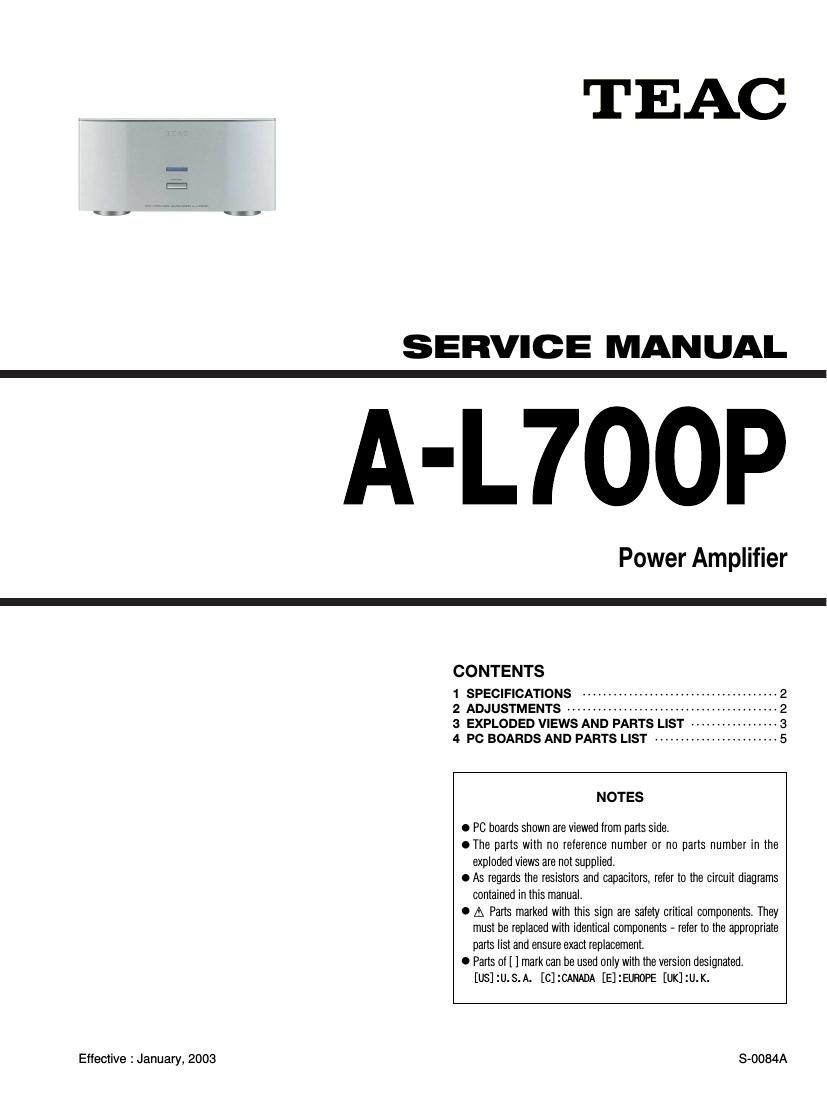

Effective :January, 2003
TEAC
SERVICE MANUAL
A-L7OOP
Power Amplifier
CONTENTS
1 SPECIFICATIONS
2 ADJUSTMENTS ...........................
3 EXPLODED VIEWS AND PARTS LIST «w
4 PC BOARDS AND PARTS LIST ----------
NOTES
0 PC boards shown are viewed from parts side.
0 The parts with no relerence number or no parts number in the
exploded views are not supplied.
0 As regards the resistors and capacitors, reler to the circuit diagrams
contained in this manual.
0 A Parts marked with this sign are safety critical components. They
must be replaced with identical components 7 refer to the appropriate
parts list and ensure exact replacement.
0 Parts 01 [ ] mark can be used only with the version designated.
[US] :U. S. A. [C] :CANADA [E] :EUROPE [UK] :U. K.
