Teac A H500 Service Manual
This is the 16 pages manual for Teac A H500 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac A H500 Service Manual (Ocr-read)
Page 1

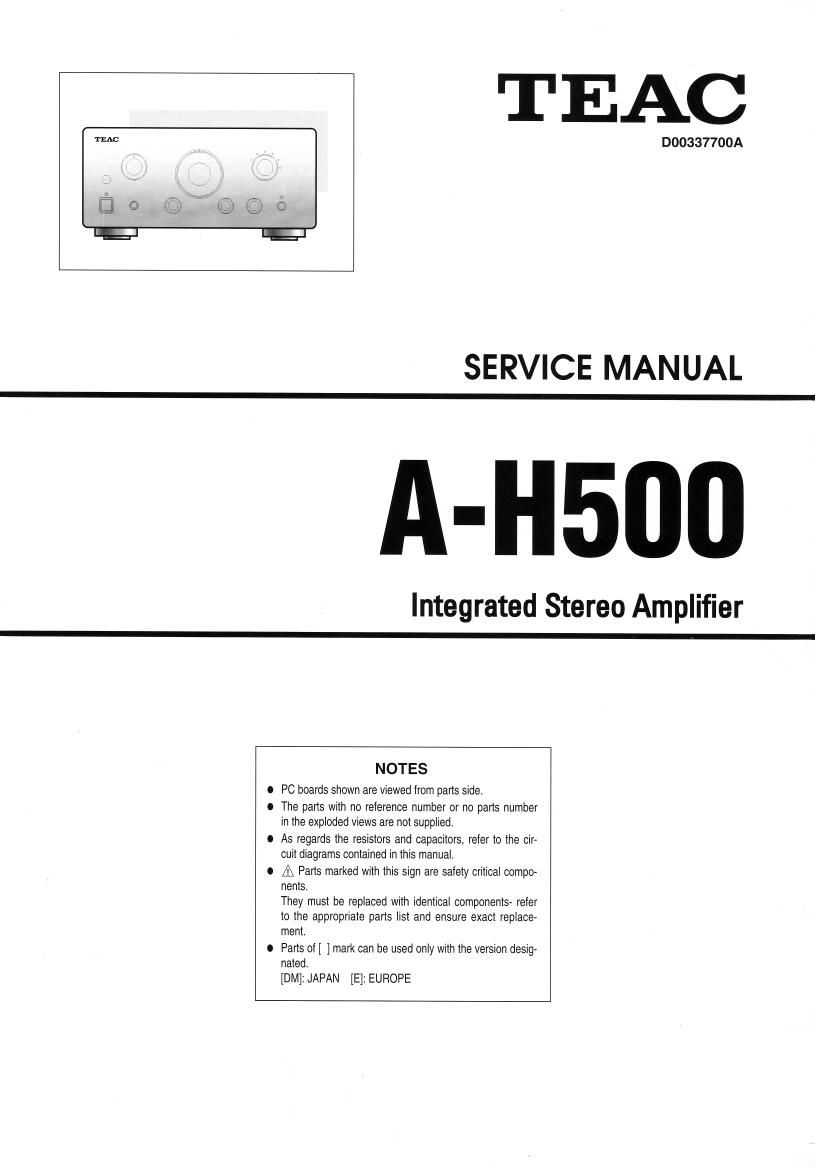

TEAC
DOO337700A
SERVICE MANUAL
A-H500
Integrated Stereo Amplifier
NOTES
PC boards shown are viewed from parts sides
The parts with no reference number or no parts number
in the exploded views are not supplied,
As regards the resistors and capacitors, reler to the cir-
cuit diagrams contained in this manual.
A Pans marked with this sign are salety critical compo-
nents.
They must be replaced with identical components» refer
to the appropriate parts list and ensure exact replace-
ment.
Parts ot[ ] mark can be used only with the version destg-
hated.
[DM]: JAPAN [E]: EUROPE
