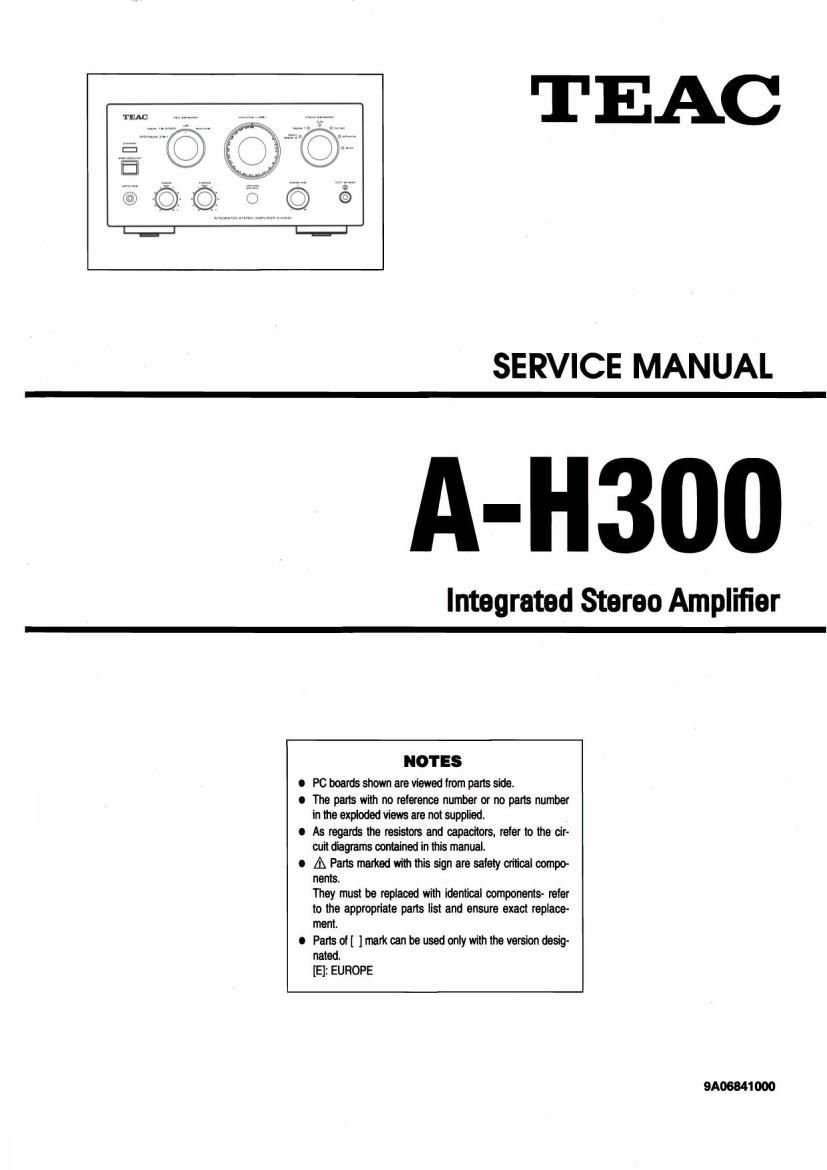

TEAC
SERVICE MANUAL
A-H300
Integrated Stereo Amplifier
NOTES
PC boards shown are viewed from pans side.
The parts with no reference number or no parts number
in the exploded views are not supplied.
As regards the resistors and capacitors, refer to the cir-
cuit diagrams contained in this manual.
A Parts marked with this sign are safety critical compo
name.
They must be replaced with identical ccmponents- reler
to the appropriate parts list and ensure exact replace-
ment
Parts ot[ ] mark can be used only with the version desig-
nated.
[E]: EUROPE
