Teac A 880 Service Manual

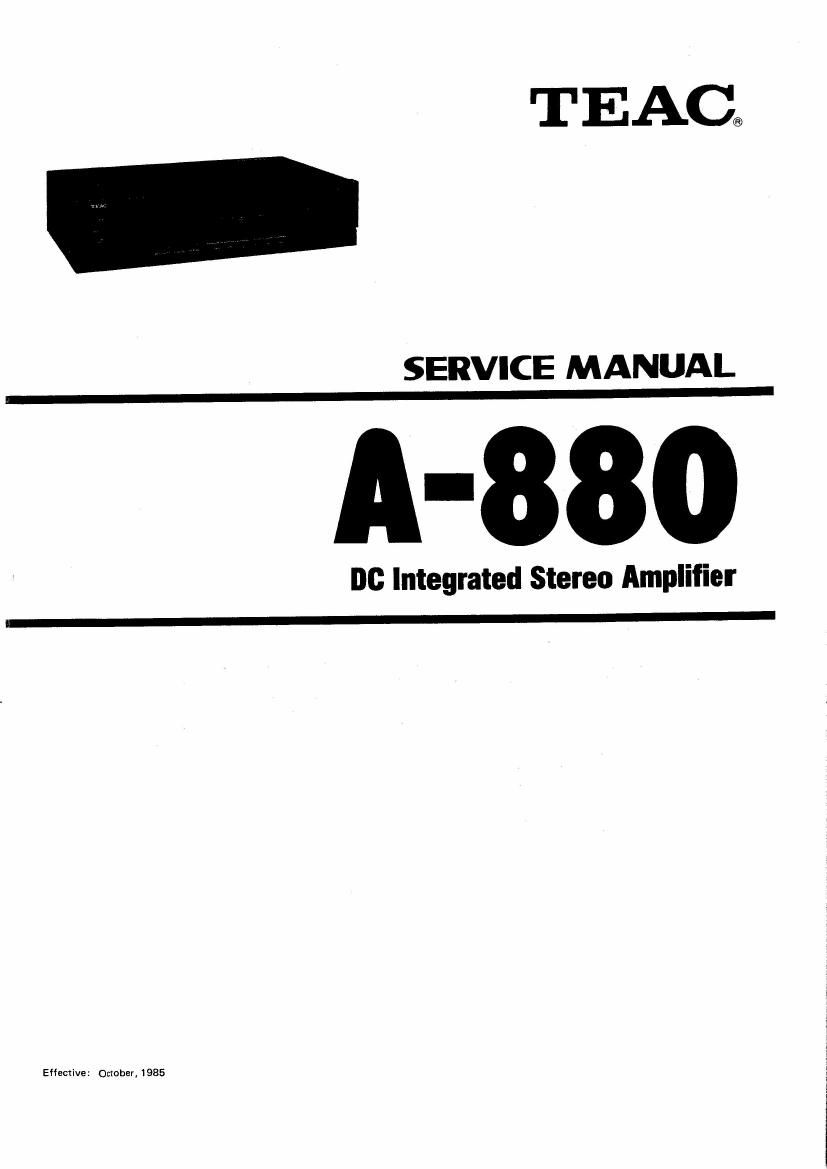

Page 1

TEAC®

SERVICE MANUAL

A-880

nc Integrated Stereo Amplifier

Page 2

SPECIFICATIONS

50 watts + 50watts " min. RMS, at

8 ohms from 40 Hz to 20 kHz, With no
more than 0.5% total harmonic distortion.
80 W + 80 W (Dynamic Power)

55 W + 55 W (Both channels, 8 ohms,
40 Hz-ZO kHz, 0.5% THD)

Output Power:

Input Sensitivity/
Impedance: PHONO: 3 mV/47 k ohms
TUNER, CD, AUX: 190 mV/42 )< ohms
TAPE PLAY 1, 2: 190 rnV/42 )< ohms
Output Voltage/
Impedance:
Damping Factor:
Frequency Response:

TAPE REC OUT: 180 mV/i k ohms
more than 15
PHONO lRlAAl: 30 HZ-~ )5 kHz

20.4 dB

TUNER, CD, AUX: 20 Hz-40 kHz :3 dB
TAPE PLAY 1, 2: 20 H2740 kHz :3 dB
Number of Bands: 5

Center Frequency: 63, 250, 1k, 4k,

16 k Hz

Boost/Cut Flange; :8 dB

Graphic Equalizer:

Total Harmonic Distor-
tion: 0.09% (At ~3 dB power output,
8 ohms. 1 kHz)

CAUTION
AParts marked with this sign are safety critical components.
They must always be replaced with identical components-
refer to the appropriate parts list and ensure exact replace-
1118!".

SERVICE POINT

- As this unit uses a large capacity power supply,
be careful of the following points when check-
ing and repairing.

(1) To check and repair the printed wiring boards, be
sure to cut off the power and pull out the power
cord. Remove the bottom plate and discharge the
power capacitors by touching it with a resistor of
approx. 10 ohms, 5 watts capacity at the positions
C807 and C808.

(2) This amplifier employs a heat Sink and so when
conducting a continuity check. the unit should be
placed horizontally or stood on its transformer
end.

lntermodulation Distor-

tron; 0.2% (At -3 (18 power output, 8 ohms,
' 1 kHz)
Signal-to-Noise Ratio: PHONO: 72 dB

TUNER, CD, AUX: 90 dB

TAPE PLAY l, 2: 90 dB
110-120/200-220/230-240 V

AC, 50/60 Hz, 270 W (General export
model)

120 V AC, 60 H2180 W (U.S.A./Canada)
220 V AC, 50 Hz 270 W (Europe)

240 V AC, 50 Hz 270 W (Australia)

(lHF A Network)

Power Requirements:

Dimensions

(WxHxD): 435x110x292mm
(17-1/8 x 4v5/16x11-1/2)

Weight: 6.5 kg (14»5/16 lbs.) net

" Measured pursuant to the Federal Trade Commission's Trade
Regulation Rule on Power Output Claims for Amplifier.

improvements may result in specification or feature changes
without notice.

0 Parts installation method
Great care is taken in installing parts to improve the
safety of products. For example, parts are covered
with tubes, or they are kept away from the printed
wiring board surface. Be sure to maintain the
previous conditions after replacing parts for repair.
