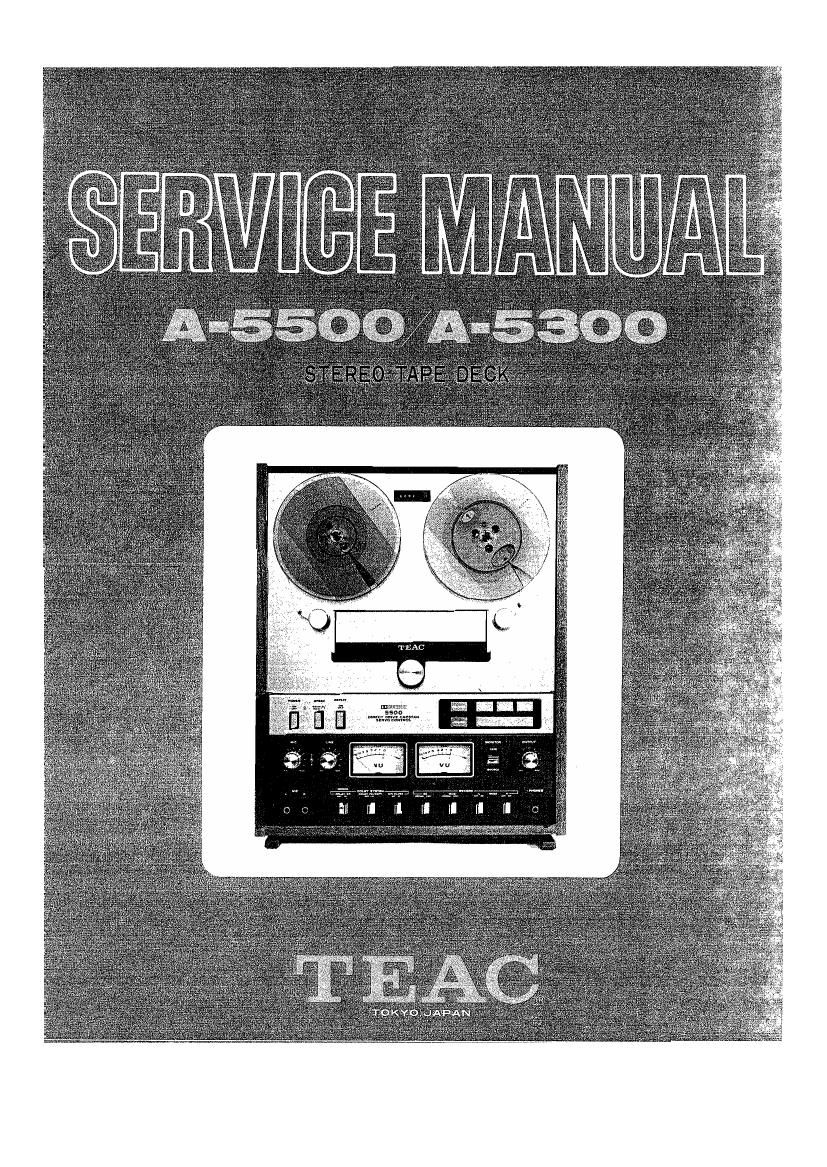

Teac A 5500 Service Manual
This is the 109 pages manual for Teac A 5500 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Teac A 5500 Service Manual (Ocr-read)
Page 2
NOTE
This Service Manual was written for both the A-SSOO and the
A-SSOO Stereo Tape Decks because of their strong similarity
and common transport unit. The Amplifier unit, however, is
greatly dis-similar. Therefore, two separate Electrical
Adjustment Sections are included in this Manual, one for the
A-SSOO only and another for the A-SSOO only. Please distin-
guish between them for the type of deck being serviced.
When placing an order for parts, please refer to the PARTS LIST
and PRICE LIST FOR PARTS which are printed separately from this
manual.
1. File the PARTS LIST manual together with this SERVICE MANUAL;
further MANUAL CHANGE SHEETS should also be kept with these.
2. Use the PARTS LIST manual and the PRICE LIST FOR PARTS when
ordering replacement parts from TEAC Corp.
*"Dolby", "Dolbylized and the Double-D " m are trade marks of Dolby
Laboratories, Inc.
