Teac A 3440 Owners Manual

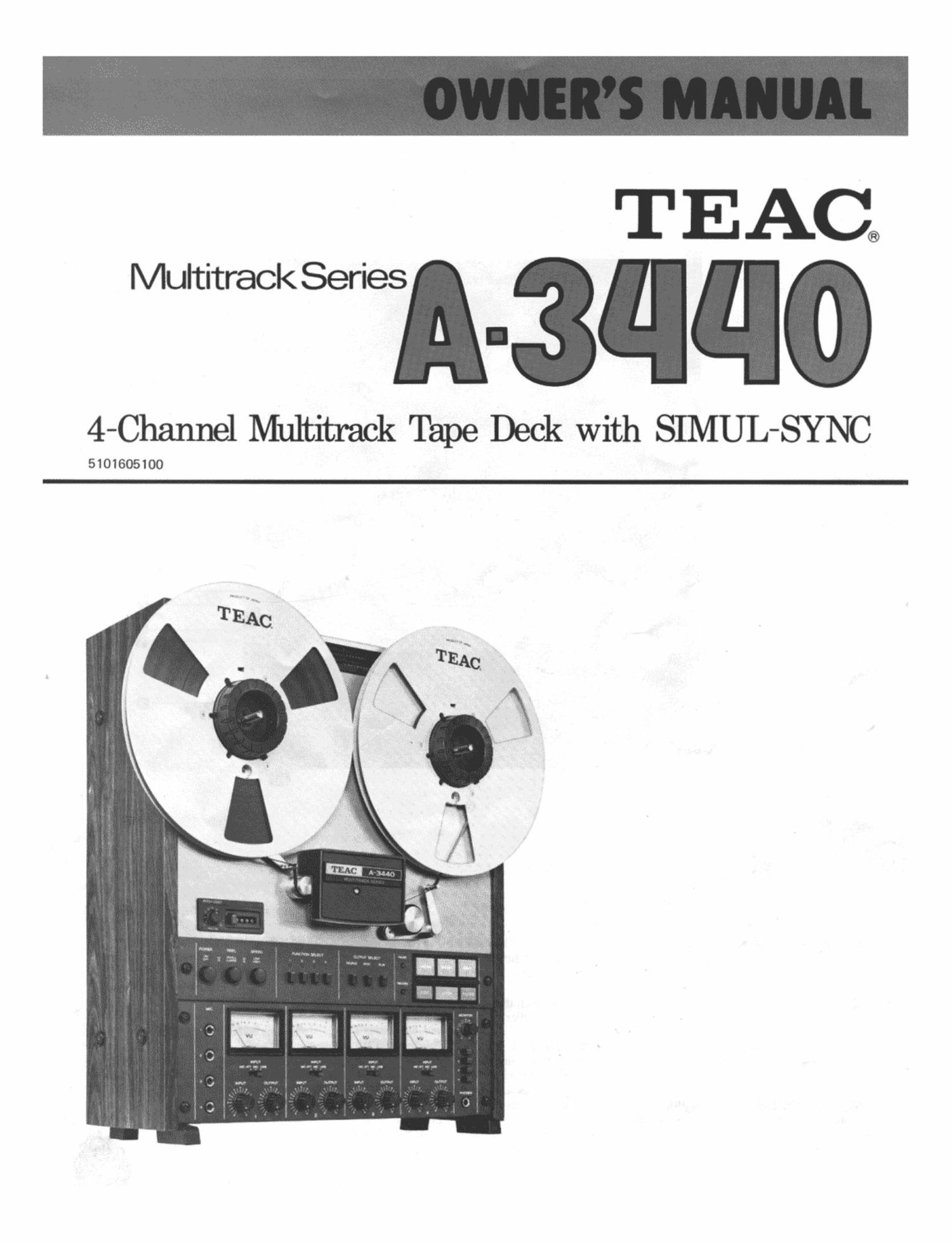

Page 1

TEAC®

MUtti-traCk serieSA 3" q o
I

4-Channel Multitrack Tape Deck with SIMUL-SY NC

5101605100

Page 2

The new TEAC A-3440 represents another
advancement on an already widely accepted
technological base. The previous A-334OS
with SlMUL-SYNC established the populari-
ty of four channel tape decks with over-dub
capability. To a large segment of people
who are seriously involved in creative
music, both as artists and as professionals,
decks such as the TEAC trail blazing
A-334OS satisfied a need. Now the A3440
goes a step further by utilizing the ex-
perience gained from producing truly
professional tape decks, such as the TEAC
TASCAM 808, and blending in the "hands
on" experience obtained from actual
users of the A-33408. The result of this
improved mix of raw talent and product
artistry is your A-3440. TEAC wishes you
Good Luck and fine recording with your
new A-3440.

This Unit is factory adjusted for
Scotch Master Tape #lOR-3600.

These tapes may also be used.

eSCOTCH #250
eMAXELL UD,UD-XL,

LN (NEW)
eSONY DUAD,SLH
eTDK AUDUA L Series,

etc. T Series

This tape deck has a Serial Number
located on the rear panel. Please record
the Model Number and Serial Number
and retain them for your records.

Model Number
Serial Number

Table of Contents

Introduction ........................................ I
Features and Controls ................................... 2 - 4
Front Panel Control and Indicators
Rear Panel Plugs and Jacks
Reel Installation
Tape Threading
Playback and Recording .................................. 5
Normal Playback Procedure
Normal Record Procedure
Erasing
Creative Sound System ...................... . ........... 6
SIMUL-SYNC Recording ................................. 7 - 8
4~Track, 4-Channel SlMUL-SYNC Recording
SlMUL-SYNC Recording Procedure
A3440 Block Diagram
Special Features ...................................... 9
Punch in Recording
Pitch Control

Cueing

Remote Control
System Connections .................................... III
Maintenance ........................................ 11

Cleaning

Demagnetizing (Degauseing)
Specifications ........................................ 12
Optional dbx Interface .................................. 12
Useful Accessories ..................................... 12
Service Note ........................................ 12

' dbx noise reduction system made under license from dbx, Incorporated. The word dbx
and the Symbol are trademarks of dbx, Incorporated.

WARNING: Tl] PREVEIIT FIRE 0R SHOCK HAZARD, 00 HOT
EXPOSE THIS APPLIANCE T0 RAIII [IR MOISTURE.

-1-
