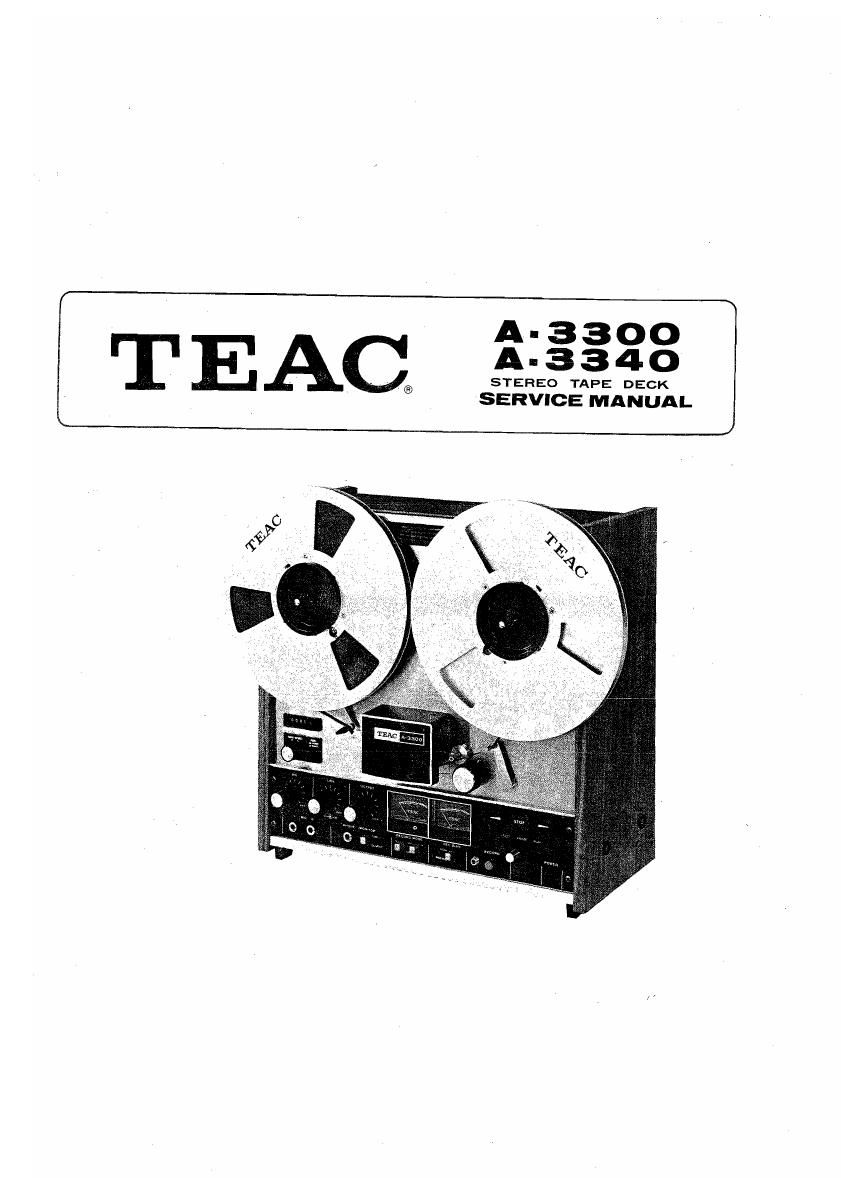

'SERVICE MANUAL

Page 2

1.!3EEBIEEFQI\I. EIEEESE3IIIF31'ICJFU

The TEAC A-3340 is a semi-professional tape deck capable of
Simul-sync recording, Quadriphonic, Stereophonic and mono-

phonic recording and playback. It Offers operating speeds
of 7-1/2 and 15 ips and will accept reels of 10-1/2 inches
in diameter. The Simul-sync feature permits the recording
of discrete but synchronized program material on all four
tape tracks.

The TEAC A-33OO is a semi-professional tape deck capable of
Stereophonic and Monophonic recording and playback. It is
available in three configurations and offers operating
speeds of either 3-3/4 and 7-1/2 ips, or 7-1/2 and 15 ips.

The transport mechanisms of the A-3300 and A-3340 are iden-
tical with the exception of operating speeds and head con-
figurations.

This service manual provides adjustment and alignment pro-
cedures, schematic diagram and parts replacement informa-
tion and the proper procedures for obtaining necessary re-
pair parts.

If adjustments or repair procedures are not clear or seem
difficult to accomplish or should you desire more detailed
technical information, please contact ybur nearest TEAC
dealer, TEAC Corporation or affiliated corporations, ad-
dress's of which are printed in this manual.

IPJEJEE)(
1. GENERAL DESCRIPTION

2. SERVICE DATA
3. EQUIPMENT REQUIRED
4. PARTIAL DISASSEMBLY
5. HEAD ALIGNMENT -MECHANICAL-
6. MEASUREMENT AND ADJUSTMENT -MECEANICAL-
7. A-3300/MEASUREMENT AND ADJUSTMENT -ELECTRICAL-
8. A-3340/MEASUREMENT AND ADJUSTMENT -ELECTRICAL-
9. PREVENTIVE MAINTENANCE
10. TROUBLE SHOOTING,
11. PACKING FOR SHIPMENT
EXPLODED VIEw AND PARTS LIST
PRINTED CIRCUIT BOARD PARTS LIST
SCHEMATIC DIAGRAMS
MANUAL CHANGES

Page 73

EXPLDDED VIEW AND PARTS LIST

A-334O

REPLACEMENT INFORMATION

Replacement parts are available through your nearest TEAC dealer
or directly from the TEAC office.

Changes are constantly being made to make TEAC products better
and more reliable.
Therefore, when ordering parts, always include the following in-
formation:

MODEL SERIAL NO. REF.N0. IMRTS NO. DESCRIPTION

NOTE
Since the basic design of the A-3340 is highly
similar to that of the A-3300 (except for Head
Assy and Preamplifier Chassis Section in this
exploded view), please refer to diagrams of the
A-3300.

T EAC CORPORATION

E-399
