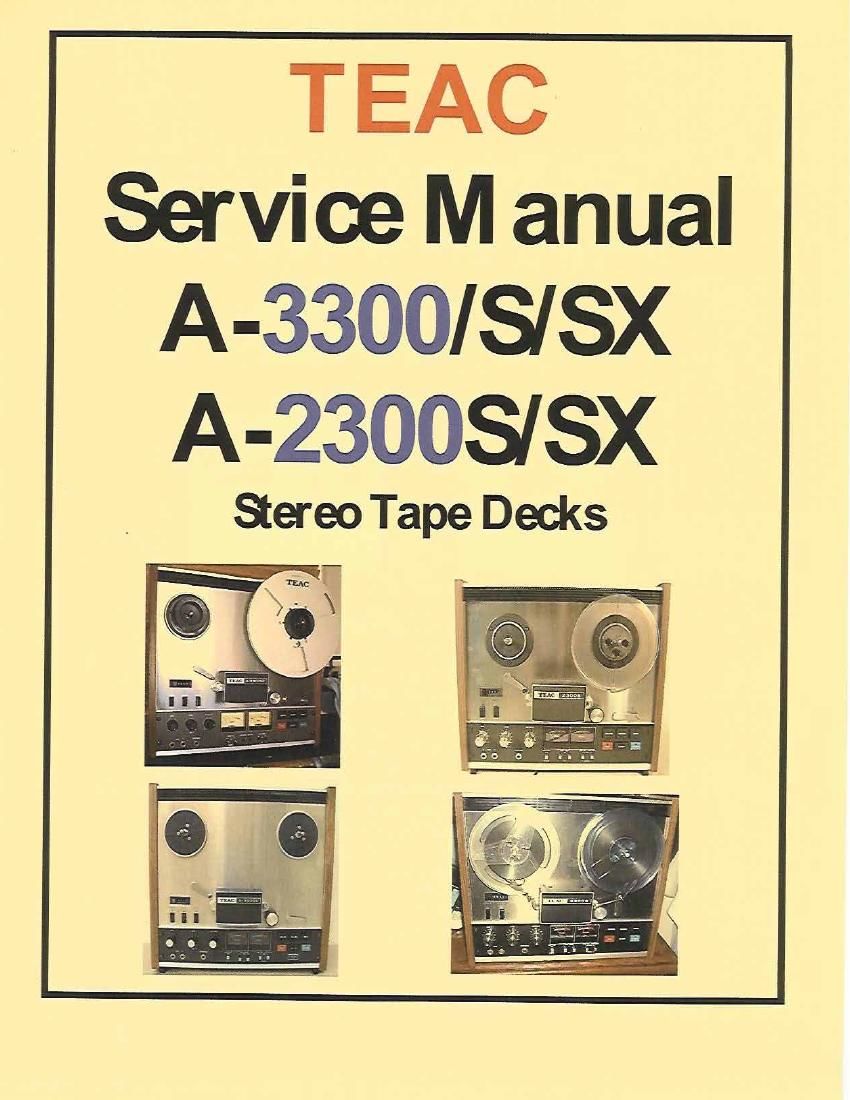

Teac A 2300 Service Manual

Page 2

1. GENERAL DESCRIPTION

The TEAC A-SSOOS/A-23OOS have achieved an enviable reputation for quality since their introducA
tion seven years ago. During this period many design improvements and modifications have been
incorporated. However the recent introduction of more versatile, improved tape products called for
extensive modification and redesign in order to provide proper utilization of these tapes. There-
fore. we have produced the new A<3300$XlA~23008X, to provide complete flexibility in selection
of recording rapes and to meet the stringent requirements of these rapes.

The basic design of the A-33OOSX/A-23OOSX is highly similar to that of the A-33OOS/A-23008,
therefore, information in this service manual may be applied to the A~33OOSlA~2300$ also.

7 MODEL TRACK [ TAPE SPEED
A-33OOSX-2T 1/2 ' lS ips. 7-1/2 ips
A-33OOSX 1/4 7-1/2 1125, 33/4 ips
A-23OOSX 114 7-1/2 ips, 33/4 ips

-- TABLE OF CONTENTS -

I. GENERAL DESCRIPTION ................ 3

2 SPECIFICATIONS AND SERVICE DATA ...... 4

3. TOOLS FOR TESTING AND MAINTENANCE . , i 6

4r PARTIAL DIS-ASSEMBLY ................ 7

S. TAPE TRANSPORT PARTS LOCATION ....... 9

6. HEAD REPLACEMENT AND ALIGNMENT ..... 10
- MECHANICAL -

7. MEASUREMENT AND ADJUSTMENT ........ 1 1
-- MECHANICAL --

8. MEASUREMENT AND ADJUSTMENT ........ 14
- ELECTRICAL -

9- SERVICING AND MAINTENANCE .......... 21

IO. TROUBLE-SHOOTING ................... 22

II. SIMPLIFIED SCHEMATIC ................ 23

WITH LEVEL INDICATIONS
