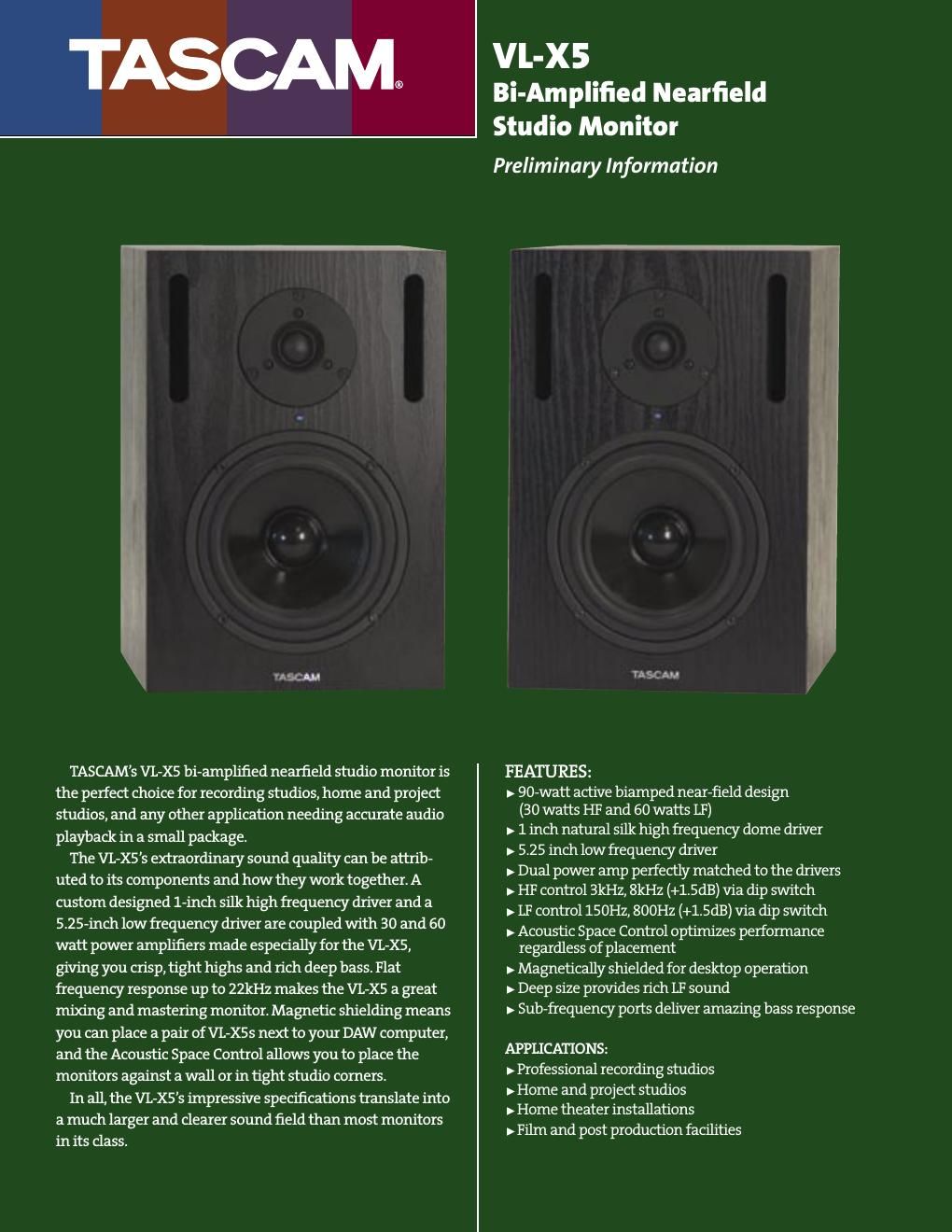

Tascam vlx 5 brochure

Page 1

VL-X 5 Bi-Amplified Nearfield Studio Monitor Frequency Response ................ 45Hz - 22kHz (1 W @ 1 m, ± 3dB) Axial Sensitivity .......................... 103 dB SPL ( 1 W @ 1 m) HF Amplifier Power (RMS) .....30 W LF Amplifier Power (RMS) ....... 60 W HF Driver .......................................... 1 in. soft silk dome LF Driver ............................................ 5.25 in. Crossover Frequency ................. 3kHz HF Control (±1.5dB) .................... 3kHz, 8kHz (dip switch) LF Control (±1.5dB) ...................... 150 Hz, 800 Hz (dip switch) Low Cut Frequency ..................... 40Hz, 500 Hz (switch) ( 12dB/oct.) System Configuration 2-way near-field studio reference monitor THD ..................................................... 0.01 % (40W, 1kHz, 8 Ω) Input Connectors ......................... 1 XLR/ 1/4 TRS combination Input Level ....................................... 200 mV, 10k Ω Power Requirements ................. 115 V/60Hz or 230 V/60Hz Cabinet .............................................. MDF Color .................................................... Black Width ................................................. 7.79 inches ( 198 mm) Height ................................................ 11.45 inches ( 291 mm) Depth .................................................. 11.41 inches ( 290 mm) Weight ............................................... 15.43 lbs. ( 7 kg) Rear Panel Connections Frequency Response Preliminary Information Specifications www.tascam.com 7733 Telegraph Road - Montebello California - 90640 - USA phone 323.726.0303 All specifications subject to change without notice. Visit www.tascam.com for the most up-to-date information. All trademarks are property of their respective holders. © Copyright 2005 TASCAM, a division of TEAC America. All rights reserved.
