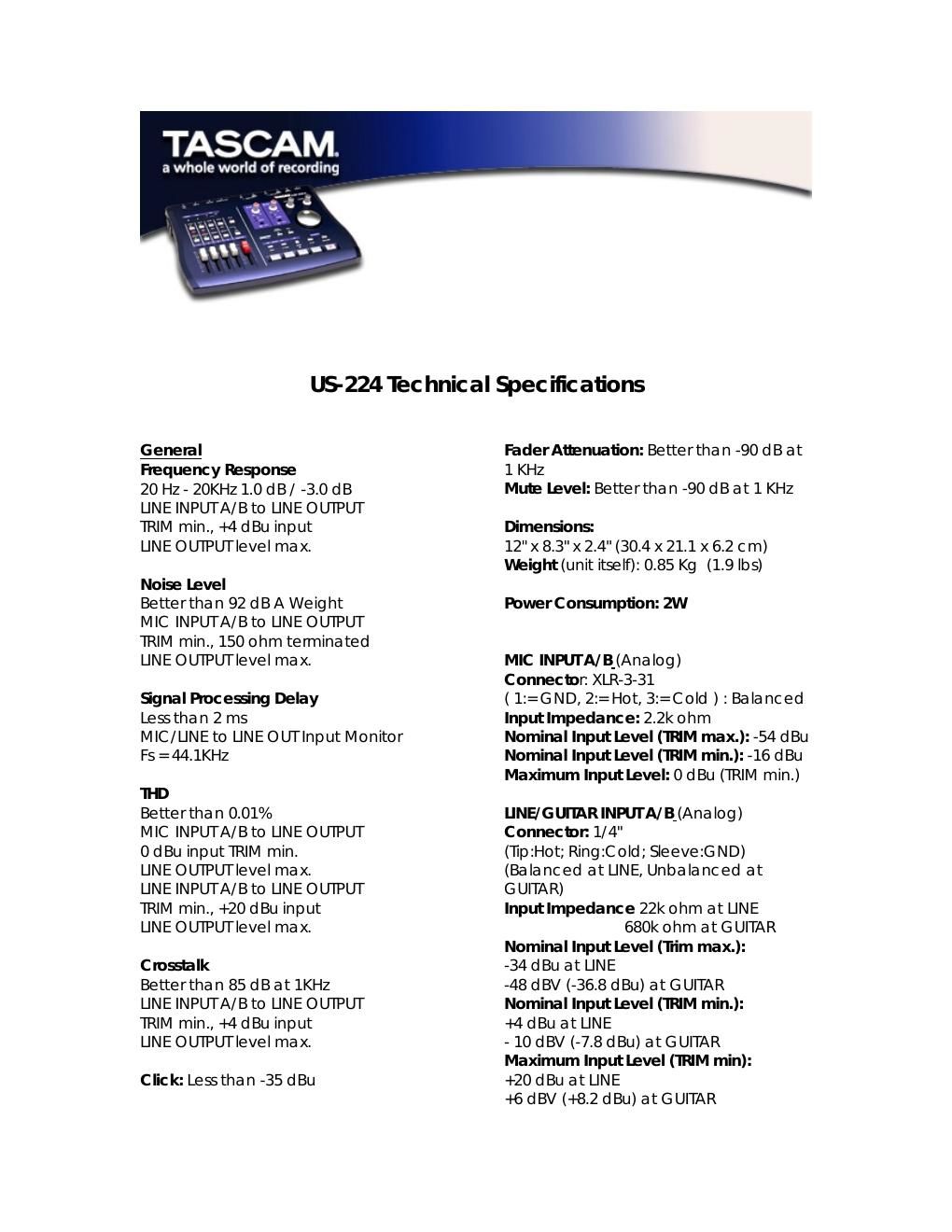

LINE OUTPUT (Analog) Connector: RCA pin jack, Unbalanced Output Impedance: 100ohm Nominal Output Level: -10 dBV (-7.8 dBu) (LINE LEVEL -10dB) Maximum Output Level: +6 dBV (+8.2 dBu) (LINE LEVEL max) PHONES output (Analog) Connector: 1/4" TRS Stereo (Tip:L, Ring:R, Sleeve:GND) (when nominal impedance 40 Ohms loaded) Maximum Output Power: 10m W + 10m W Maximum Output Level: +6 dBV (+8.2 dBu) DIGITAL IN Connector: RCA pin jack Format: IEC60958 Type2 Input impedance: 75 ohm Input Level: 0.5Vp-p DIGITAL OUT Connector: RCA pin jack Format: IEC60958 Type 2 Output Impedance: 75 ohm Output Level: 0.5Vp-p MIDI IN Connector: 5P DIN Format: Standard MIDI Format MIDI Out Connector: 5P DIN Format: Standard MIDI Format USB Connector: USB Down stream connector Format: USB Version 1.1 ADC / DAC AD/DA Converter 24Bit, 64 times oversampling Delay: 17 samples (ADC), 15.4 samples (DAC) Audio Performance MIC INPUT (A, B XLR Analog INPUT to DIGITAL OUT) Frequency Response 20 Hz - 20KHz + 0.5dB / -1.0 dB TRIM min., -16 dBu input S/N Better than 93 dB A Weight TRIM min., 150 ohm terminated LINE OUTPUT max. T.H.D. Better than 0.007% at 1kHz TRIM min., 0 dBu input LINE INPUT (A, B 1/4" Analog INPUT to DIGITAL OUT) Frequency Response 20 Hz - 20KHz, +0 .5 dB / -1.0 dB TRIM min., +4 dBu input S/N Better than 93 dB A Weight TRIM min., 150 ohm terminated LINE OUTPUT max. T.H.D Better than 0.007% at 1KHz TRIM min., +20 dBu input LINE OUTPUT (DIGITAL IN to LINE OUTPUT) Nominal Output: +6dBV 0 dBFs input, LINE OUTPUT max. Frequency Response: 20 Hz - 20KHz, +0.5 dB / -1.0 dB –16 dBFs input, LINE OUTPUT max. S/N: Better than 97 dB A Weight, 0 dBFs input, LINE OUTPUT max. T.H.D. Better than 0.007% at 1KHz TRIM min., 0 dBFS input LINE OUTPUT max. PHONES Output Maximum Output: More then 10m W + 10m W at 1KHz, 40 ohm loaded Frequency Response: 100 Hz - 20KHz, +1.0 dB / -3.0 dB Nominal level, 40 ohm loaded T.H.D.: Better than 1 % 1KHz, Output 10m W + 10m W, 40 ohm loaded
