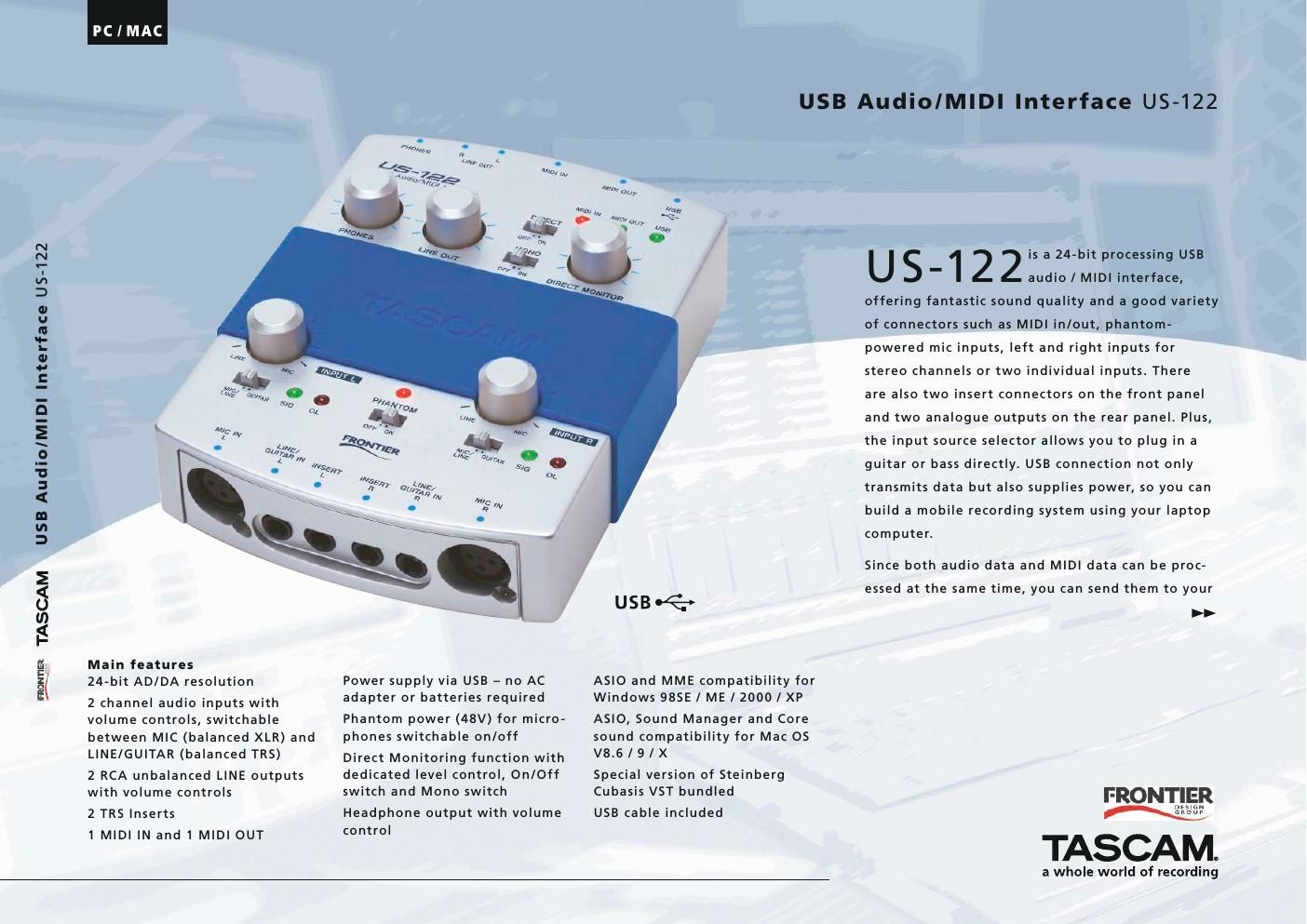

USB Audio/MIDI Interface US-122

TASCAM

mourns:
r-\

PC I MAC

Main features

24-bit AD/DA resolution

2 channel audio inputs with
volume controls, switchable
between MIC (balanced XLR) and
LINE/GUITAR (balanced TRS)

2 RCA unbalanced LINE outputs
with volume controls

2 TRS Inserts

1 MIDI IN and 1 MIDI OUT

Power supply via USB - no AC
adapter or batteries required

Phantom power (48V) for micro-
phones switchable on/off

Direct Monitoring function with
dedicated level control, On/Off
switch and Mono switch

Headphone output with volume
control

USB Audio/MIDI Interface US-122

ASIO and MME compatibility for
Windows 985E / MEI 2000/XP
ASIO, Sound Manager and Core
sound compatibility for Mac OS
V8.6 / 9 / X

Special version of Steinberg
Cubasis VST bundled

USB cable included

is a 24-bit processing USB
U S _1 2 2 audio / MIDI interface,
offering fantastic sound quality and a good variety
of connectors such as MIDI in/out, phantom-
powered mic inputs, left and right inputs for
stereo channels or two individual inputs. There
are also two insert connectors on the front panel
and two analogue outputs on the rear panel, Plus,
the input source selector allows you to plug in a
guitar or bass directly. USB connection not only
transmits data but also supplies power, so you can
build a mobile recording system using your laptop

computer.

Since both audio data and MIDI data (an be proc-
essed at the same time, you can send them to your

»

TASCAM.

a whole world of recording

Page 2

USB Audio/MIDI Interface US-122

TASCAM

r\

manna

PC I MAC

PC or Mac via its USB port and playback or record
them simultaneously. That is, there is no need

to spend time and effort in installing l/O cards.
Also, a special version of Steinberg Cubasis VST is
included as package software. Incorporating user-
friendly features like several LED indicators and
mode selectors into its novel and compact design,
the US-122 is an affordable and straightforward
solution for computer audio interfacing that

requires portability and high quality.

SYSTEM REQUIREMENTS

Windows. ESSEIME/ZOOO/XP

CPU .. Pentium 300MHz or higher
Memory. .128ME
Interface protocol .ASID, MME
Connector ..... ..USB port

Macintosh .Mac OS 8.6 or higher
CPU ..... .Power Mac, iMac,Ca, G4/266MH2 or higher
Memory.. ..54MB

Interface protocol

ASIO, Sound Manager, Core Audio (05 X).
OMS, Free MIDI
USB port
Bundled Cubasis vsT (doesnt support
.05 x), Cuhasis VST, Cuhase VST/5X,
. .Digital Performer, Logic, Sonar
. and any other application supporting ASIo driver

Connector
Compatible applications.

TEA: :oRPoRATIoN
TEA: AMERICA, INC
TEA: CANADA LTD
TEA: MEXICO. sA tile :v
TEA: UK LIMITED

7733 Telegrapn Road, MDntehello, CA 90540 UsA
5939 Wallace Street, Mississauga, Ontario L42 IZB,

TEA: FRANCE sA
TEA: ITALIANA SpA

3-7-3. Nakathu, Musashinmshi, Tokyo 150-3550, Japan.

Campesinos NVIBA, Colonia Granias Esmeralda, Delegation lztapa apa,
S Marlin House, The Croxley centre, Watford, Herts., WDI SVA, UK
TEA: DEUTSCHLAND :mhil Dannstrasse 12, 65205 Wiexhaden-Erhenheim, Deutschland
17 Rue Alexis»de-T0(quevllle, CE 005 52in Antony Cedex, France
via C. Cantu Ii. 20092 Cinisello Balsamo, Milano, ltaly.
TEA: AUSTRALIA Prv LTD )6 say St.. Port Melbourne, VKtoHa 3207, Australia

Audio/MIDI Interface US-122

SPECIFICATIONS
AID converter.
D/A converter.
Sampling Frequency ......

.24 Iiit (Group delay; I7 samples)
.24 Bit (Group delay; 15.4 samples)
...44.1kHz,48kHz

ANALaGUE INPUTS AND aUTPUTs
MIC IN (to INSERT OUT) ......
Nominal input level
Frequency response
Signal to Noise ratio.
T. H. D.
LINE IN (to INSERT OUT)
Nominal input level.
Frequency response
Signal to Noise ratio.
T. H. D.
GUITAR IN (to INSERT OUT).
Nominal input level
Frequency response
Signal to Noise ratio.
T.H.D..
LINE IN .> ADC .> DAC .> LINE OUT
Frequency response
Signal to Noise ratio.
T.H. D..
Cross talk attenuation.
LINE IN .> Direct Monitor .> LINE OUT

Frequency response ..... ..20Hz e 20kHz,<+1.5dB/71.5dB
Signal to Noise ratio. >97dBA
T H. D. .co.009%
Crosstalk attenuation. ..>70dB
INSERTIIOL, R. 6.3cmm TRSiack
Nominal input level
Nominal output level

..XLRc3c31x2
754dBu to r16dBu
onzezokHz, <+1.oda/ei.5ds
.>1DOdEIA
(0.007% (1kHZ)
6.3cmm TRS jack
34dBu to +4dBu
ZOHZrZOkHz, <+1.oda/ei.5d3
.>100dEIA
.<0.007%
6.3cmm TRS jack
742.2dav to 74.22dBV
onz e ZDkHz,<+1.0dBlca.0dB
>93dBA
(0.05%(1kHz)

ZOHZ r ZOkHz, <+1.5dB/71.5dB
>93dEIA
. >83dB

i+sI-422-52-5032 www.teac.to,jp
:+i-323-725-0303 wvvvv.tascam.toin
:+i-905»S§0-BODH wvvvv.tascam.toin

. Tel. +52-(5)-658-I943

:+44-1923-319630 www.tascam.to.ulc
i+49-6II-7Islia www.tascam.de
,+33-I»42.37.0I.02 www.tascam»europe.¢om
:+39-2»66010500 www.teac.it
:+6|-3-5646»I733 www.teac.tom.au

o 2003 TEAC Corporation - All rights reserved All trademarks are the property of their respective holders

Design and specifications subject to change without notice

' * g o
1fii lntBflZCG OIFECT l /
uSB Andrei \
, l /
\ /
/
PHONES
LINE OUTPUT... ..RCA pinjack

Nominal output level
Maximum output level
PHONES OUTPUT...
Maximum output power

..... 5. 3 mm TRSjack
20mw + 20mw (40 ohm)

OTHER CONNECTORS
MIDI lN/OUT
USE....
Format..
Transmission rate

.Scpln DIN, according to MIDI standard
..USB Down stream connector
.USB Veri.1
. Up to 12Mhps

POWER SUPPLY AND 0THER SPECIFICATlnNs
Power requirement
Power consumption.
Dimension (w x H x D)
Weight...

.USB Vbus(5V)
...2.5w
.14Sx62x98mm
.0925 kg
