Tascam TSR 8 Service Manual 2

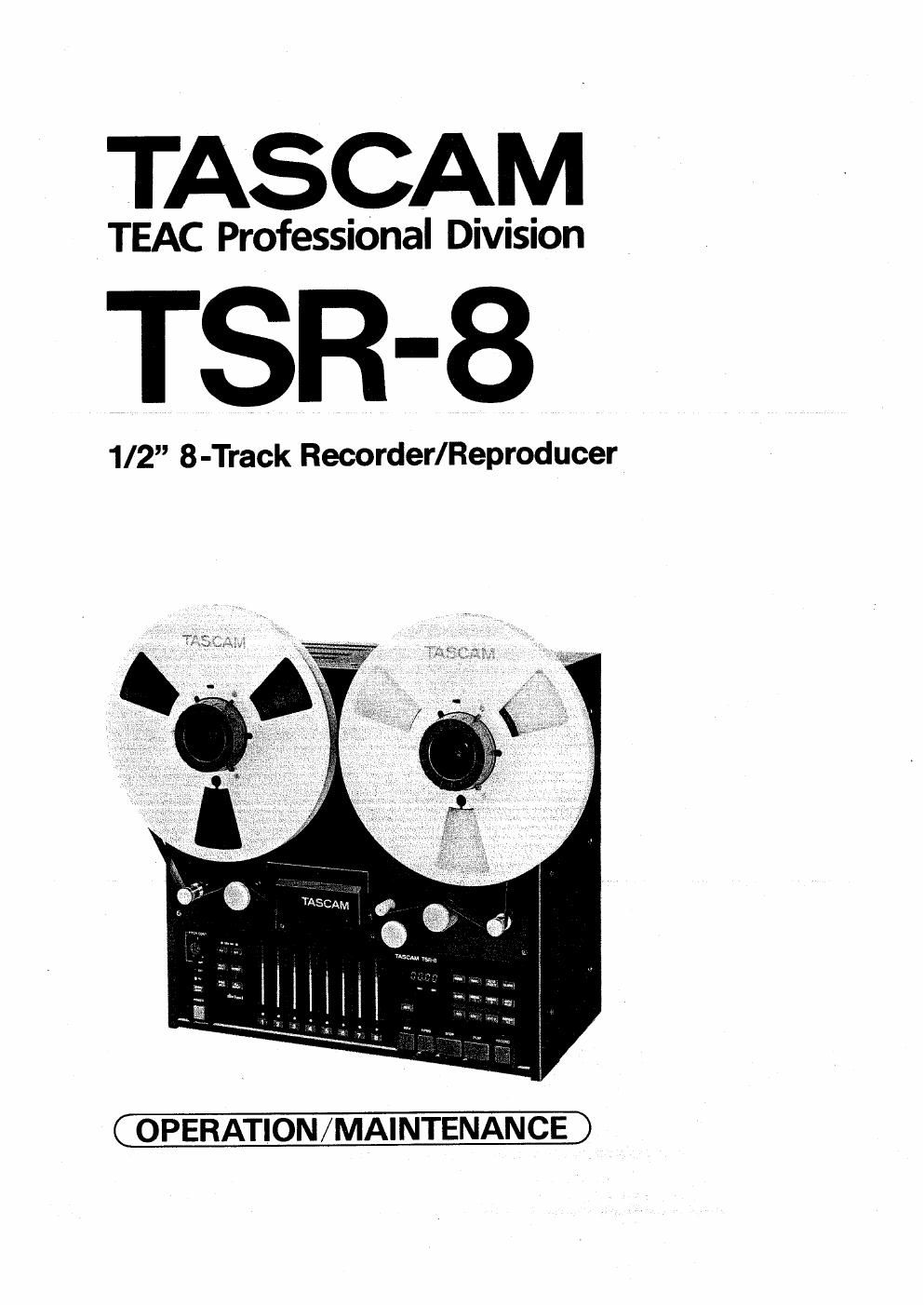

Page 1

TAS CAM

,TEAC ProfessiOnal Division

TSR- 8

1/ 8-Track Recorder/Reproducer

(OPERATION/MAINTENANCE )

Page 2

The guarantee provided for the TSR-S has several
restrictions. The TSR-8 will perform properly only if it
is adjusted properly and we guarantee that such adjust-
ment is possible. Setup is not covered by Warranty. If
your attempts at internal adjustments are unsuccessful,
we will charge you for readiustments.

Recording is an art as well as a science. As a result,
your finished product may be judged more by artistic
criteria than technical performance. Art is the province
of the artist and TASCAM can make no guarantee that
the TSR-8, by itself, will assure the quality of your
work.

Your skill as a technician and your abilities as an
artist will be significant factors in the results you
achieve.

© Copyright 1989, TEAC Corporation"

All rights reserved under international and Pan American copyright conventions.
This book may not be reproduced in whole or in part, by mimeograph or any
other means, without permission.

(OR BACK) NO USER -SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangleis intended to alert the user
A to the presence of uninsulated dangerous voltage within the products enclosure that may he of
sufficient magnitude to constitute a risk of electric shock to persons.

g CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER

important operating and maintenance (servicing) instructions in the literature accompanying the

u The exclamation point within an equilateral triangle is intended to alert the user tothe presence of
appliance.

lithiiiiiiitliiriiialeioifiie'hfii WARNING: TO PREVENT FIRE 0R SHOCK
ag'rlgbfizcgnggsenalnumberandretarnthomior H AZAHD, DO NOT EXPOSE THIS
sisiflhi'hfl APPLIANCE T0 RAIN OR MOISTURE.
