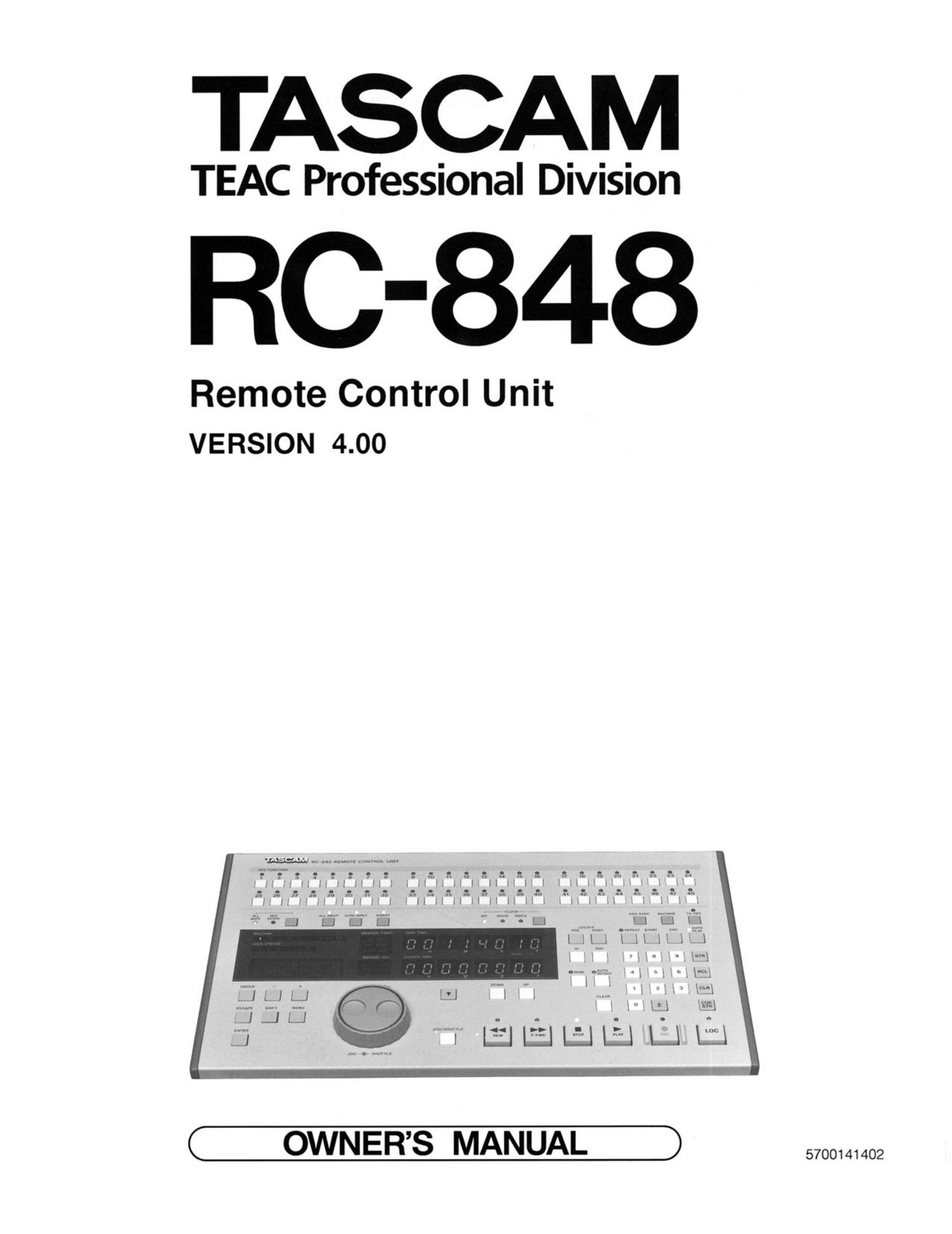

TAS CAM

TEAC Professional Division

RC-848

Remote Control Unit
VERSION 4.00

C OWNERS MANUAL ) 0700040400

Page 2

CHAPTER 1 INTRODUCTION

In this manual we use "DA to cover both the DA-88
(Version 4.00 and earlier models) and the DA-38. We
state them separately only when needed.

The RC-848 multi-function remote control unit is the
heart of a professional production system of digital and
analog audio and video tapes ; it has Accessory l and 2
connectors to control TASCAM analog machines, and a
standard RS-422 interface to control VTRs or others.

The RC-848 can control a maximum of 6 DAs or
synchronize a system of up to 16 DAs to sample
accuracy.

More specifically the RC-848's capabilities include the
following:

0 Menu names you use most frequently can be stored in
battery backup memory for instant access.

0 Battery backup of the last menu screen displayed
before selecting another machine, allowing you to
directly return to that menu when selecting the
corresponding machine again. This is also true of the
LOCATE TIME display.

0 Park position, this helps to eliminate a lag between a
master and slave.

O Crossfade time for click free punch-in recordings.

0 Instant reset of settings at multiple specific menus
0 Automatic offset entry
0 99-point autolocator functions

0 Jog/Shuttle wheel for locating specific points on audio
or video tapes at variable speeds

0 Split mode for punch-in recording referenced to a
video picture.

SOFTWARE UPDATES

Many capabilities which were not available on earlier
models have been implemented on the RC-848 ROM
version 4.00 and above. Information on all changes and
new features are included in this manual. If you want to
make sure of the version number of your model,
simultaneously press REW, F FWD, and STOP after
switching on power to the RC-848 and before a
momentary illumination of all LEDs stops. The initial
screen will change to read 4.00 or a higher number. To go
back to the initial screen, switch the unit off, then power
on again.

C] Using this manual

Before actually using the RC-848, skim through this
manual. so you will know where to look to when you
need answers.

Use of capital letters : Generally, we use all upper case
type to designate a particular switch. indicator, control or
connector label, as in :"Prcss CLOCK until INT lights."

1-1

TABLE OF CONTENTS
Chapter 1: Introduction ........................................... 1 . 1
Chapter 2: Accessing the Menu Screens .............. 2 . 1
Chapter 3: Features and Controls .......................... 3 . 1
Chapter 4: Operations Guide .................................. 4 . 1
4-1 Pre-Operating Procedures ............................... 4 o 1
4-2 Autolocator Functions .................................... 4 . 6
4-3 Variable Speed Playback ................................ 4 - 9
4-4 Entering a Track Delay Time .......................... 4 . 9
4-5 Relative Reference Time Indication ............. 4 . 10
4-6 Punch-In Recording ...................................... 4 - 11
4-7 Copying Tracks (DA-38 Only) ..................... 4 - 14
4-8 Shuttle Monitor (DA-38 Only) ..................... 4 . 14
4-9 Selecting a TDIF Input Bit Length
(DA-38 Only) ............................................... 4 . 15
4-10 Enabling the Dither Function
(DA-38 Only) ............................................. 4 - 15
Chapter 5: Synchronizing Multiple DAs ................ 5 . 1
Chapter 6: Controlling Other Equipment
From ACCESSORY "1" ......................... 6 . 1
6-1 Machines with a Parallel Port ......................... 6 0 1
6-2 Event Output Facility (Available upon
Request Only) ................................................. 6 . 1
Chapter 7: Controlling Other Equipment
From ACCESSORY "2" ......................... 7 . 1
7-1 TASCAM Multitrack Cassette Recorders ...... 7 o 1
7-2 TASCAM Open-Reel Recorders .................... 7 . 2
7-3 TASCAM CD Players .................................... 7 . 3
7-4 Remote Functions Not Operational ................ 7 0 4
Chapter 8 : Controlling Other Equipment
From RS-422 Port .................................... 8 - 1
8-1 Turning the Chase Mode of DA-60 MKII
On or Off ........................................................ 8 . 1

8-2 Having a DA/V'I'R System Drop Into and
Out of Record (Function Available Upon

Request Only) ................................................. 8 o l

USING THE FIG-848 WITH THE SY-88
Chapter 9 : Accessing the Menu Screens ............. 9 . 1
Chapter 10 : Striping Timecode ............................ 10 . 1
10-1 Preliminary ................................................. 10 e 1
10-2 Recording Timecode on the DA-88 ............ 10 0 1
10-3 Timecode Out Select .................................. 10 0 2
Chapter 11 : Syncing with DA-88 as Slave ......... 11 . 1
-1 Setting a Park Position ................................ ll . 1
11-2 Synchronization .......................................... 11 . 1
11-3 Offset Sync ................................................. ll . l

1 1-4 Dubbing Audio and Timecode
at One Time Between Two DA-88s ............ ll - 2
Chapter 12 : Controlling a VTR ............................. 12 . 1

Appendix : Pin Assignment Charts 8:
Dimensional Drawing
