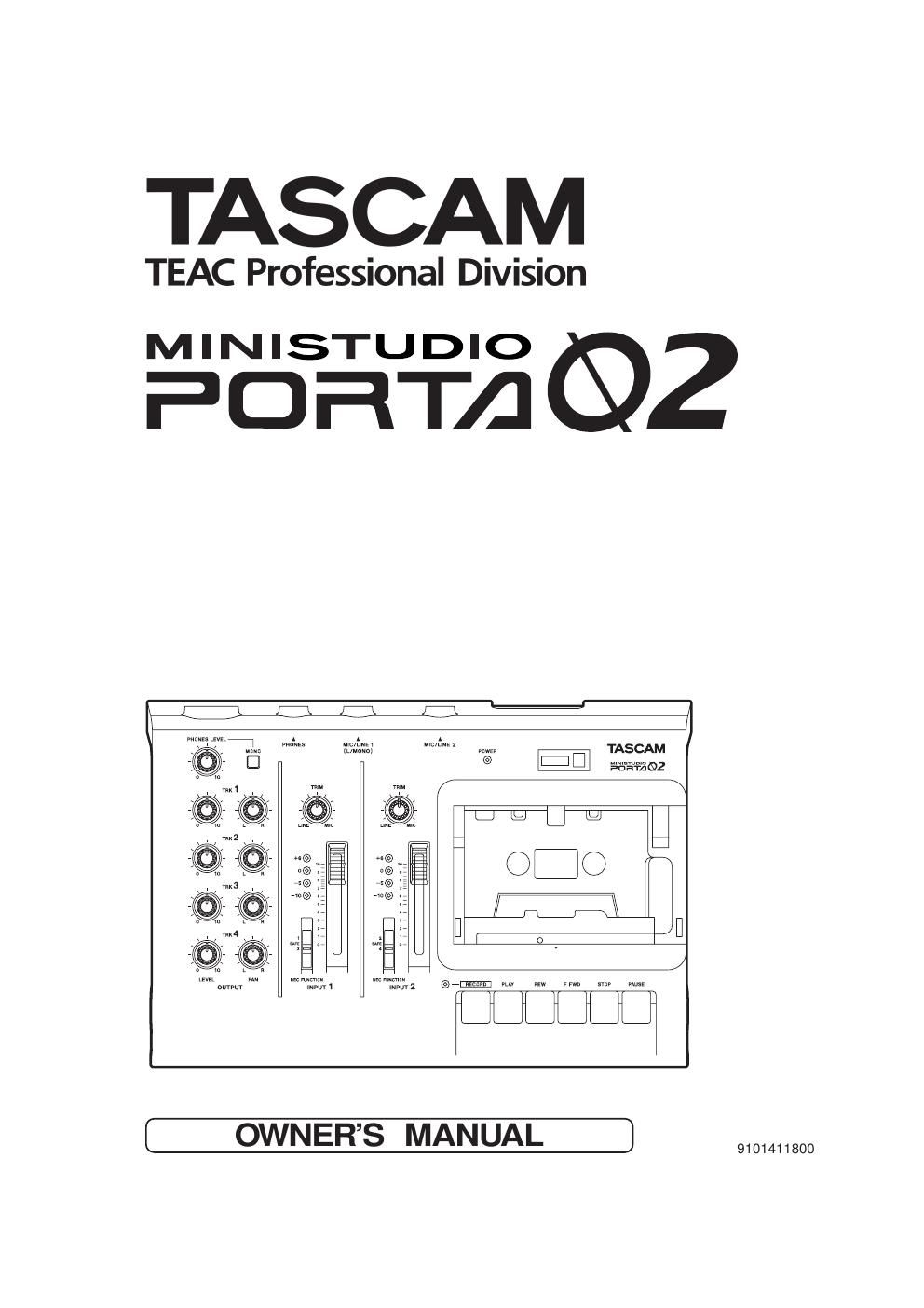

Tascam Porta 02 Owners Manual
This is the 24 pages manual for Tascam Porta 02 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Tascam Porta 02 Owners Manual (Ocr-read)
Page 1
2 Important Safety Instructions .............3 1. An introduction to the Porta02 .......4 1.1 Multitrack recording Ð a brief introduction ..................4 1.2 Some safety notes and precautions ..............................5 1.3 What you need to make recordings ................................8 1.4 Connecting the Porta02 ..........8 2. Parts of the Porta02 ........................9 3. Making your first recording...........13 3.1 Setting up ..............................13 3.2 Getting ready .........................13 3.3 Setting the level .....................14 3.4 Recording the first track .......15 3.5 Recording the next track ......16 3.6 Recording the stereo backing ..................................17 3.7 Mixdown ................................18 4. Hints and advanced tips ...............20 4.1 Recording techniques ...........20 4.2 Mixdown ................................21 5. Troubleshooting.............................22 6. Specifications ................................23 Table of Contents This appliance has a serial number located on the rear panel. Please record the model number and serial number and retain them for your records. Model number Serial number WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the liter- ature accompanying the appliance. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. † Ø Ù
Page 2
3 Important Safety Instructions CAUTION: ·Read all of these Instructions. ·Save these Instructions for later use. ·Follow all Warnings and Instructions marked on the audio equipment. 1) Read Instructions- All the safety and operating instructions should be read before the product is operated. 2) Retain Instructions - The safety and operating instruc- tions should be retained for future reference. 3) Heed Warnings- All warnings on the product and in the operating instructions should be adhered to. 4) Follow Instructions - All operating and use instruc- tions should be followed. 5) Cleaning- Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 6) Attachments - Do not use attachments not recommend- ed by the product manufacturer as they may cause hazards. 7) Water and Moisture- Do not use this product near water _ for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like. 8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, caus- ing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturers instructions, and should use a mounting accessory recommend- ed by the manufacturer. 9) A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.15) Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and discon- nect the antenna or cable system. This will prevent damage to the product due to lightning and power-line surges. 16) Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal. 17) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in risk of fire or electric shock. 18) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dan- gerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the prod- uct. 19) Servicing- Do not attempt to service this product your- self as opening or removing covers may expose you to danger- ous voltage or other hazards. Refer all servicing to qualified service personnel. 20) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service per- sonnel under the following conditions: a)when the power-supply cord or plug is damaged. b)if liquid has been spilled, or objects have fallen into the product. c)if the product has been exposed to rain or water. d) if the product does not operate normally by following the operating instructions. Adjust only those controls that are cov- ered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e)if the product has been dropped or damaged in any way. f )when the product exhibits a distinct change in performance _ this indicates a need for service. 21) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same character- istics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 22) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operat- ing condition. 23) Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the man- ufacturer. 24) Heat- The product should be situated away from heat sources such as radiators, heat registers, stoves, or other prod- ucts (including amplifiers) that produce heat. "Note to CATV system installer:This reminder is provided to call the CATV system installers attention to Section 820-40 of the NEC which provides guide- lines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. 10) Ventilation- Slots and openings in the cabinet are pro- vided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other sim- ilar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturers instructions have been adhered to. 11) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For prod- ucts intended to operate from battery power, or other sources, refer to the operating instructions. 12) Grounding or Polarization - This product may be equipped with a polarized alternating-current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electri- cian to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. 13) Power-Cord Protection- Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular atten- tion to cords at plugs, convenience receptacles, and the point where they exit from the product. 14) Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the anten- na or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides infor- mation with regard to proper grounding of the mast and sup- porting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of anten- na-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H) NEC - NATIONAL ELECTRICAL CODEELECTRIC SERVICE EQUIPMENT Example of Antenna Grounding as per National Electrical Code, ANSI/NFPA 70 GROUND CLAMP
