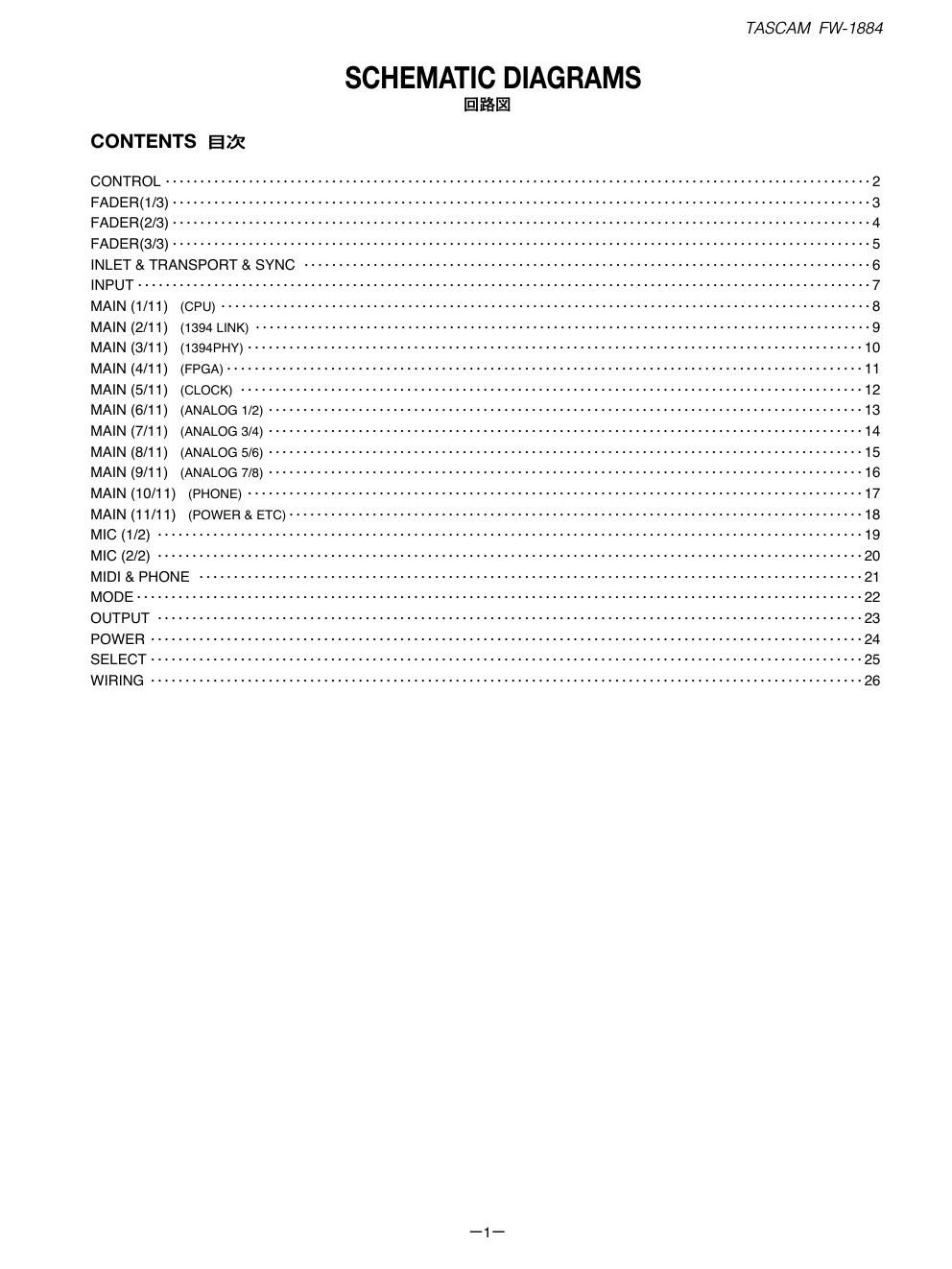

Page 1
TASCAM FW- 1884
SCHEMATIC DIAGRAMS
[Elfi-
CONTENTS E751
CONTROL ...................................................................................................... 2
FADER(1/3) ..................................................................................................... 3
FADER(2/3) ..................................................................................................... 4
FADER(3/3) ..................................................................................................... 5
INLET & TRANSPORT & SYNC .................................................................................. 6
lNPUT .......................................................................................................... 7
MAIN (1/11) (CPU) .............................................................................................. 8
MAIN (2/11) (1394 LINK) ......................................................................................... 9
MAIN (3/11) (1394PHY) ......................................................................................... 10
MAIN (4/11) (FPGA) ............................................................................................ 11
MAIN (5/11) (CLOCK) .......................................................................................... 12
MAIN (6/11) (ANALOG 1/2) ...................................................................................... 13
MAIN (7/11) (ANALOG 3/4) ...................................................................................... 14
MAIN (8/11) (ANALOG 5/6) ...................................................................................... 15
MAIN (9/11) (ANALOG 7/8) ...................................................................................... 16
MAIN (10/11) (PHONE) ......................................................................................... 17
MAIN (11/11) (POWER & ETC) ................................................................................... 13
MIC (1/2) ................................................................................................... 19
MIC (2/2) ...................................................................................................... 20
MlDl & PHONE ............................................................................................. 21
MODE ......................................................................................................... 22
OUTPUT ................................................................................................... 23
POWER ....................................................................................................... 24
SELECT .................................................................................................... 25
WIRING ....................................................................................................... 26
