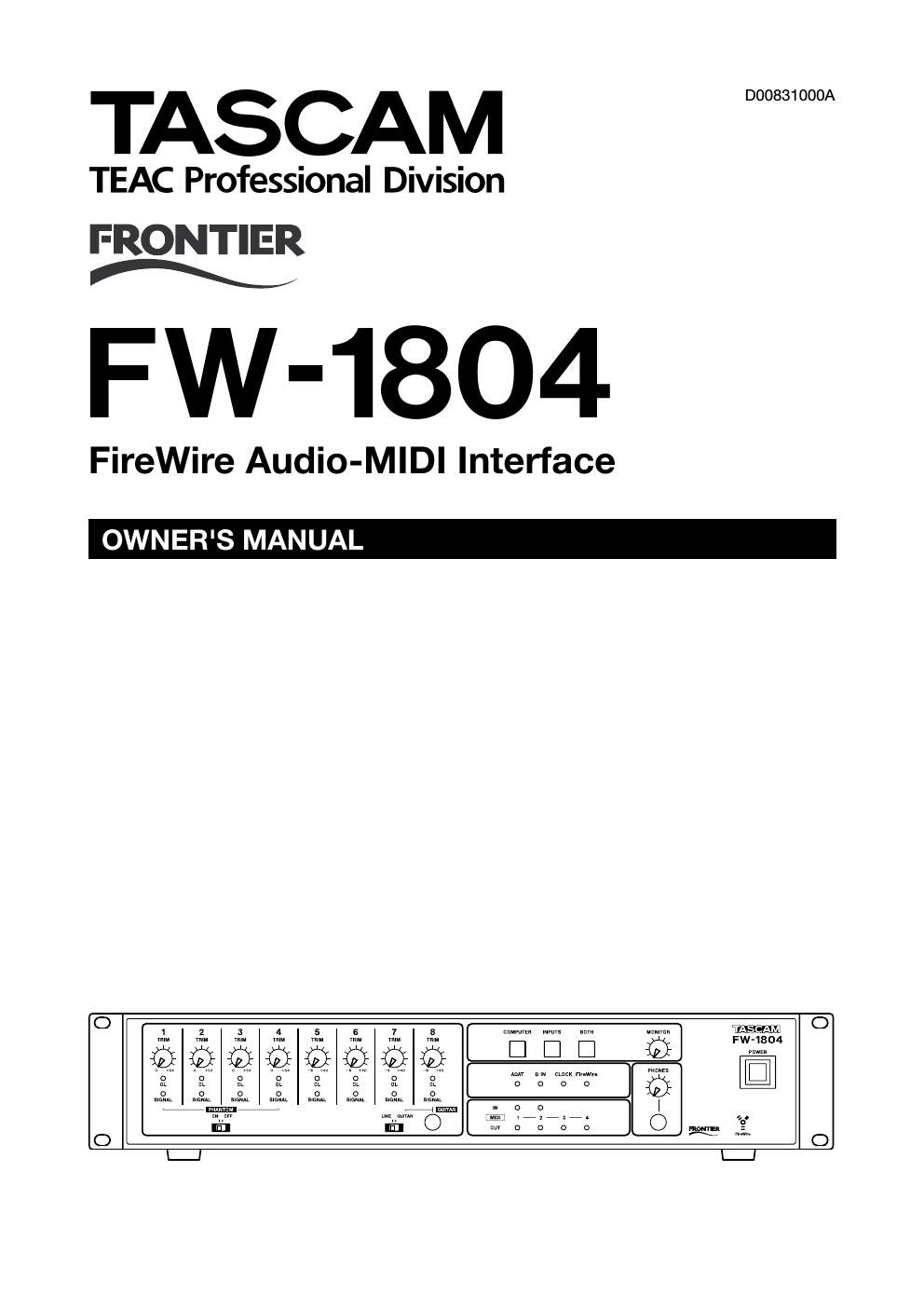

Page 1

TASCAM

TEAC Professional Division
FRONTIER

EW-1804

FireWire Audio-MIDI Interface

OWNER'S MANUAL

O 1 2 3 4 5 6 7 s iii-El] O
m. W W W W W W W Fw-1ao4
go. A g} 0 A g om @ om {E} .D g} {E} g} El
m m m m m m m m
0 0 0 C Q 0 0 O
ssssssssssssssssssssssssssssssssssssssssssssss
W. m
fi- fi- 0
O O
\_I \_I

Page 2

Important Safety Precautions

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

msxomscmmm COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
°"°'°"" TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within equilateral triangle, is intended to

A alert the user to the presence of uninsulated dangerous voltage" within the prod-

ucts enclosure that may be of sufficient magnitude to constitute a risk of electric

shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to
A the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

This appliance has a serial number locat-
ed on the rear panel. Please record the
model number and serial number and
retain them for your records.

WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS

M°de'"mbe'- APPLIANCE TO RAIN OR MOISTURE.

Serial number

7 For U.S.A.

TO THE USER

This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruc-
tion manual, may cause harmful interference to radio
communications.

Operation of this equipment in a residential area is
likely to cause harmful interference in which case the
user will be required to correct the interference at his
own expense.

CAUTION

Changes or modifications to this equipment not
expressly approved by TEAC CORPORATION for
compliance could void the users authority to operate
this equipment.

For the customers in Europe

WARNING
This is a Class A product. In a domestic environment,
this product may cause radio interference in which
case the user may be required to take adequate
measures.

Pour les utilisateurs en Europe

AVERTISSEMENT

ll s'agit dun produit de Classe A. Dans un environ-
nement domestique, cet appareil peut provoquer des
interferences radio, dans ce cas l'utilisateur peut étre
amené a prendre des mesures appropriées.

Fiir Kunden in Europa

Warnung

Dies ist eine Einrichtung, welche die Funk-Entstorung
nach Klasse A besitzt. Diese Einrichtung kann im
Wohnbereich Funkstdrungen versursachen ; in
diesem Fall kann vom Betrieber verlang werden,
angemessene MaBnahmen durchzufuhren und daftir
aufzukommen.

CE Marking Information

a) Applicable electromagnetic environment: E4
b) Peak inrush current: 4.6 A

2 TASCAM FW-1804
