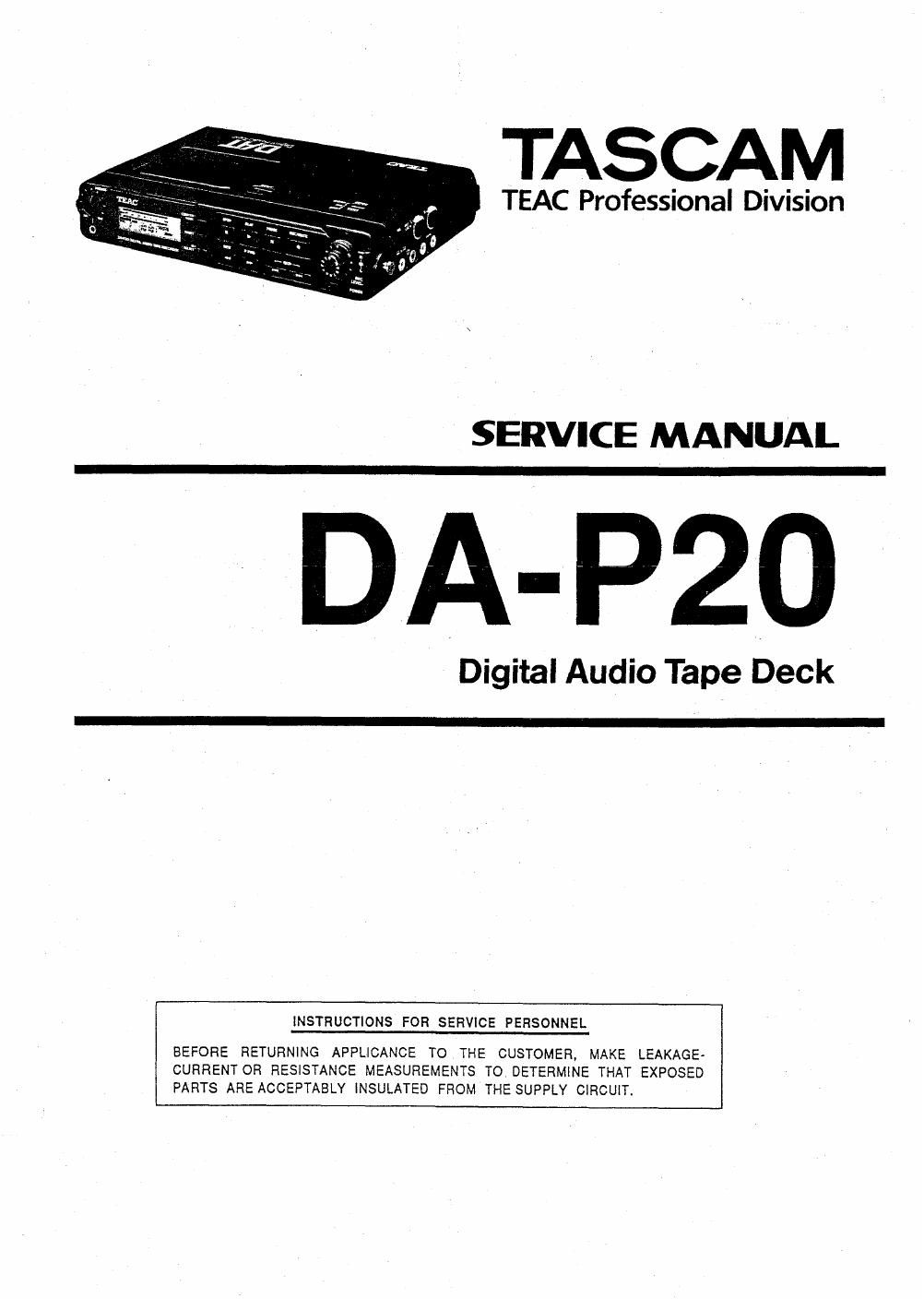

Page 1
TASCAM
TEAC Professional Division
SERVICE MANUAL
DA-P20
Digital Audio Tape Deck
iNSTRUCTlONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLICANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY iNSULATED FROM THE SUPPLY CIRCUIT
Page 2
Cauflon : This unit cannot be disassembled without lifting cassette cover.
Insen a thin rod in the small hole (pointed by an arrow in the figure) and push.
