Tascam DA P1 Owners Manual

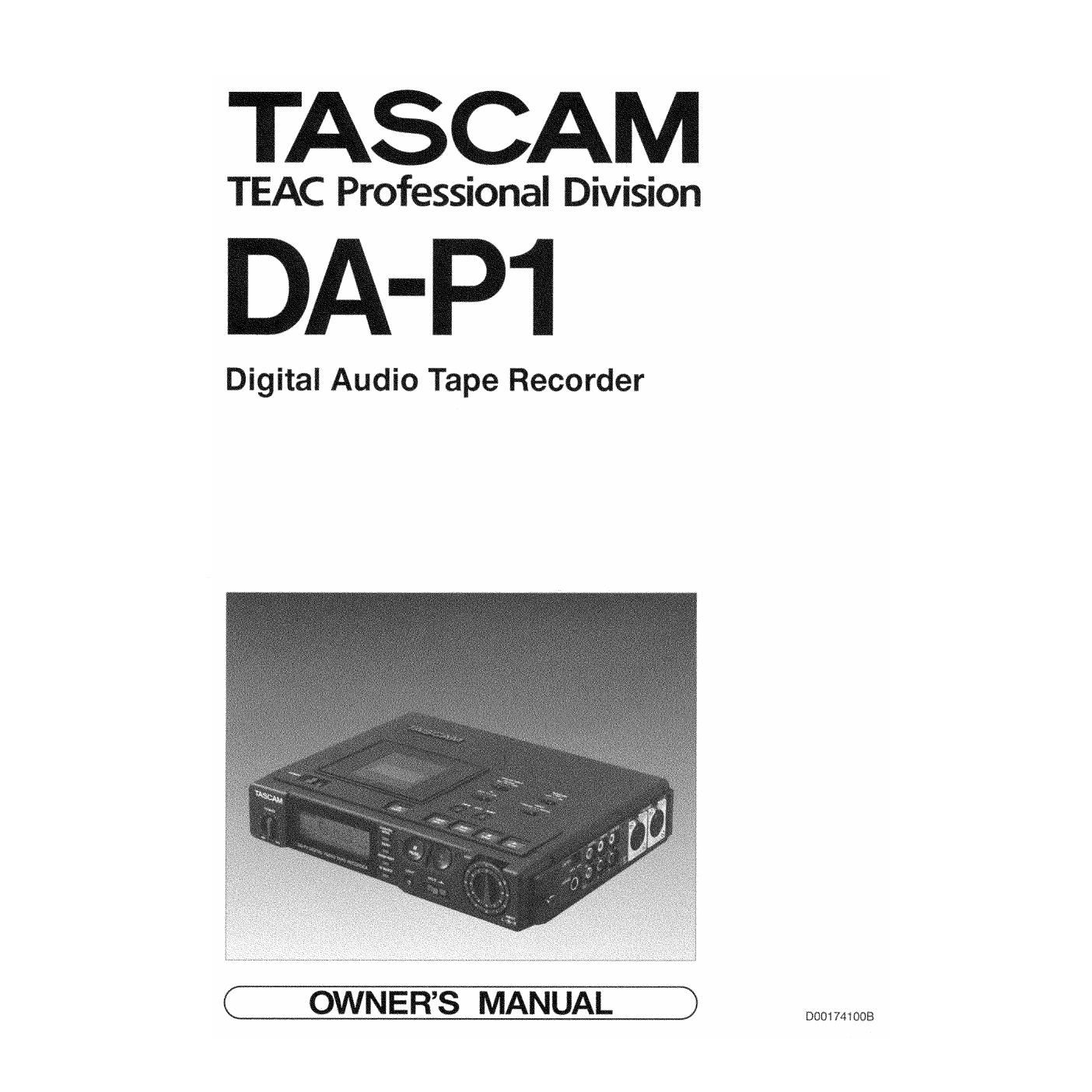

Page 1

TAS CAM

TEAC Professional Division

DA-P1

Digital Audio Tape Recorder

C OWNERS MANUAL D Wm

Page 2

Important Safety Precautions

CAUTION
RISK OF ELECTRiC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (0R BACK). NO USER-SERVICEABLE PARTS
INSIDE, REFER SERVICING T0 QUALIFIED SERVICE PERSONNEL.

the user to the presence of uninsulated "dangerous voltage" within the products enclosure

3 The lightning flash with arrowhead symbol, within equilateral triangle, is intended to alert

that may be of sufficient magnitude to constitute a risk of electric shock to person.

presence of important operating and maintenance (servicing) instructions in the

D The exclamation point within an equilateral triangle is intended to alert the user to the

literature accompanying the appliance.

This appliance has a serial number located
on the rear panel, Please record the model
number and serial number and retain them
for your records.

Model number

Serial number

WARNING: TO PRIVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT (for U.K. Customers)

DO NOT cut off the mains plug from this
equipment. If the plug fitted is not suitable for the
power points in your home or the cable is too short to
reach a power point, then obtain an appropriate safety
approved extension lead or consult your dealer.

If nenetheless the mains plug is cut off, remove
the fuse end dispose of the plug immediately,
to avoid a possible shock hazard by inadvertent

connection to the mains supply.

If this product is not provided with a mains plug, er one
has to be fitted then follow the instructions given
below: 4

IMPORTANT. DO NOT make any connection to the
larger terminal which is marked with the letter E or by
the safety earth symbol 4 or coloured GREEN or
GREEN«and~YELLOW.

The wires in the mains lead on this product are coloured
in accordance with the following code:

BLUE: NEUTRAL
BROWN: LIVE

As these colours may not conespond with the coloured
markings identifying the terminals in your plug proceed
as follows:

The wire which is coloured BLUE must be connected to
the terminal which is marked with the letter N or
coloured BLACK.

The wire which is coloured BROWN must be connected
to the terminal which is marked with the letter L or
coloured RED.

When melecing the fuee enly a correctly rated approved
type should he used and be sure t9 re-fit the fuse cover.

IF IN DOUBT - CONSULT A COMPETENT
ELECTRICIAN.
