Tascam cd 160 owners manual

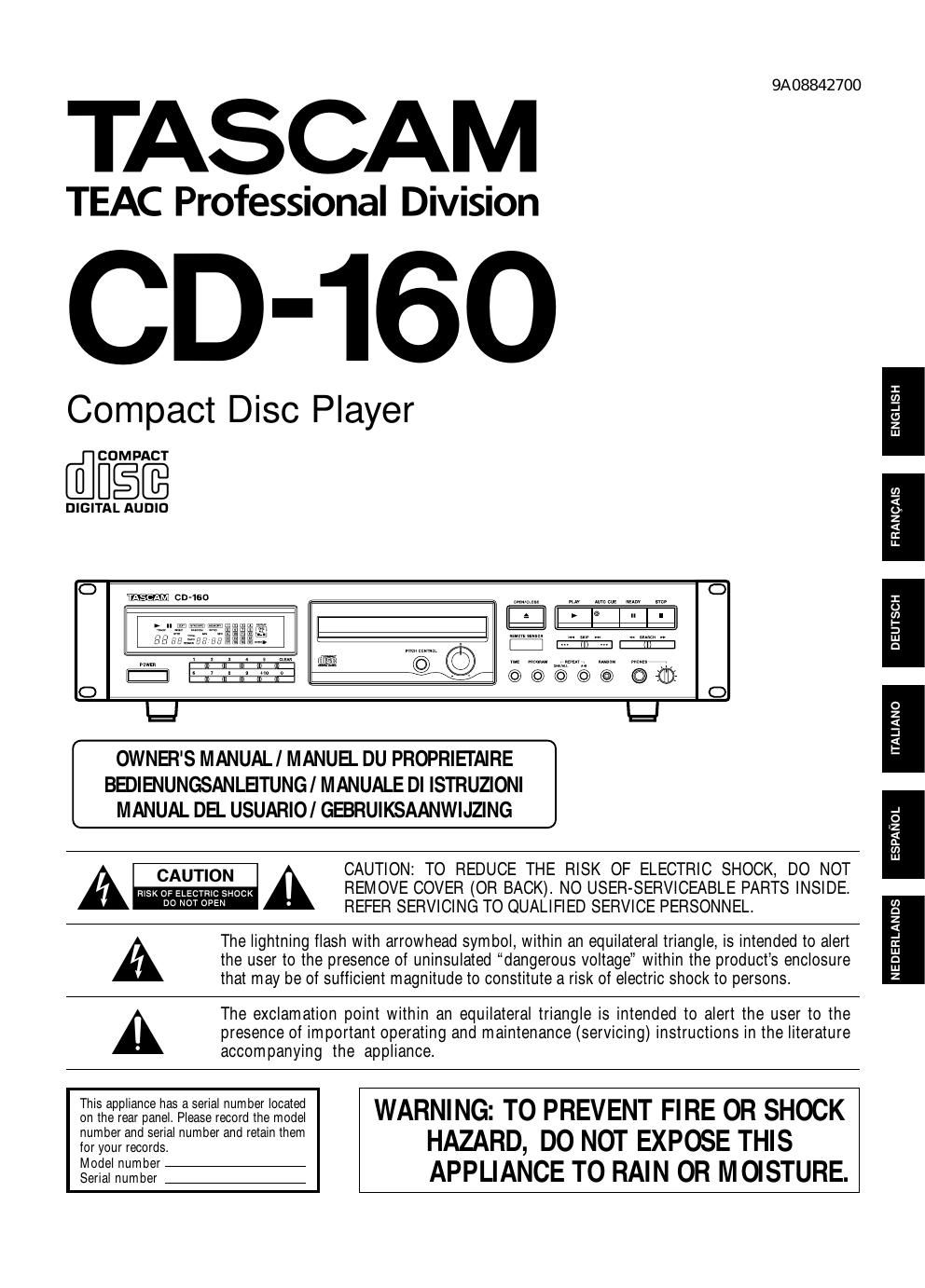

Page 1

TAS CAM

TEAC Professional Division

CD-160

Compact Disc Player

[flfigfi

DIGITAL AUDIO

O W CD460 OOOOOOOOOO um AUMCME NEADY m»
II I:| I-Imn-
. I: 1.; .ml - .
w. .' .2 r r. flair @ © w .. ~~~~~~~~ 7.
II It . I' i' I. rm. '#W © © © @ C003 (I?
O

OWNER'S MANUAL/ MANUEL DU PROPRIEI'AIRE
BEDIENUNGSANLEITUNGI M ANUALE DI ISTRUZIONI
MANUAL DEL USUARIO l GEBRUIKSAANWIJZING

9A 08842700

CAUTION

RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

A

The lightning flash with arrowhead symbol. within an equilateral triangle, is intended to alert
the user to the presence of uninsulated dangerous voltage within the products enclosure
that may be of sufficient magnitude to constitute a risk of electric shock to persons.

A

The exclamation point within an equilateral triangle is intended to alert the user to the
presence of important operating and maintenance (servicing) instructions in the literature
accompanying the appliance.

lor your records.
Model number
Serial number

This appliance has a serial number located
on the rear panel. Please record the model
number and serial number and retain them

WARNING: TO PREVENT FIRE 0R SHOCK
HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR M OISTURE.

DEUTSCH FRANCAIS ENGLISH

o
z
5
a
t:

NEDERLANDS ESPANOL

Page 2

IMPORTANT SAFETY INSTRUCTIONS

CAUTION:

- Read all of these Instructions.

0 Save these Instructions for later use.

0 Follow all Warnings and Instructions marked on the audio
equipment.

1) Read Instructions - All the safety and operating instructions
should be read before the product is operated.

2) Retain Instructions - The safety and operating instructions
should be retained for future reference.

3) Heed Warnings - All warnings on the product and in the
operating instructions should be adhered to.

4) Follow Instructions - All operating and use instructions should
be followed.

5) Cleaning - Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.

6) Attachments - Do not use attachments not recommended by
the product manufacturer as they may cause hazards.

7) Water and Moisture - Do not use this product near water 7 for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in
a wet basement; or near a swimming pool; and the like.

3) Accessories - Do not place this product on an unstable cart,
stand, tripod, bracket, or table. The product may fall, causing serious
injury to a child or adult, and serious damage to the product. Use
only with a cart, stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the product. Any mounting of the product
should follow the manufacturers instructions, and should use a
mounting accessory recommended by the manufacturer.

9) A product and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the product
and cart combination to overturn.

7

v

10) Ventilation - Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the product and to
protect it from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This product
should not be placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the manufacturer's
instructions have been adhered to.

- This product should be operated only from the type of power
source indicated on the marking label. It you are not sure of the type
of power supply to your home, consult your product dealer or local
power company. For products intended to operate from battery
power, or other sources, refer to the operating instructions.

12) Grounding or Polarization - This product may be equipped
with a polarized alternating-current line plug (a plug having one
blade wider than the other).This plug will fit into the power outlet only
one way. This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug should still fail
to fit, contact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.

13) Power-Cord Protection - Power-supply cords should be
routed so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where they exit from
the product.

14) Outdoor Antenna Grounding - If an outside antenna or
cable system is connected to the product, be sure the antenna or
cable system is grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for the
grounding electrode.

"Note to CATV system installer:

This reminder is provided to call the CATV system installers
attention to Section 820-40 of the NEC which provides guidelines for
proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close
to the point of cable entry as practical."

Example of Antenna Grounding as per
National Electrical Code, ANSI/NFPA 70

ANTENNA
,/ LEAD iN
WlRE

GROUND

ANTENNA
DlSCHARGE UNlT
[NEC sEcTioN 510720)

ELECTRlC
SERVICE
EouiPMENT~\

GROUNDlNG CONDUCTORS
iNEc sEcTioN we

ELECTRODE svsTEM
lNEC ART 250 PART Hi
NEc . NATlONAL ELECTRICAL CODE

15) Lightning - For added protection for this product during a
lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect the
antenna or cable system. This will prevent damage to the product
due to lightning and power-line surges.

16) Power Lines - An outside antenna system should not be
located in the vicinity of overhead power lines or other electric light
or power circuits, or where it can fall into such power lines or circuits.
When installing an outside antenna system, extreme care should be
taken to keep from touching such power lines or circuits as contact
with them might be fatal.

17) Overloading - Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in risk of fire or
electric shock.

18) Object and Liquid Entry - Never push objects of any kind into
this product through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.

19) Servicing - Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service personnel.
20) Damage Requiring Service - Unplug this product from the
wall outlet and refer servicing to qualified service personnel under
the following conditions:

a) when the power-supply cord or plug is damaged.

b) if liquid has been spilled, or objects have fallen into the product.
:2) if the product has been exposed to rain or water.

d) if the product does not operate normally by following the
operating instructions. Adjust only those controls that are covered by
the operating instructions as an improper adjustment of other
controls may result in damage and will often require extensive work
by a qualified technician to restore the product to its normal
operation.

e) if the product has been dropped or damaged in any way.

f ) when the product exhibits a distinct change in performance ethis
indicates a need for service.

21) Replacement Parts - When replacement parts are required,
be sure the service technician has used replacement parts specified
by the manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric shock, or
other hazards.

22) Safety Check - Upon completion of any service or repairs to
this product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.

23) Wall or Ceiling Mounting -The product should be mounted to
a wall or ceiling only as recommended by the manufacturer.

24) Heat - The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.
