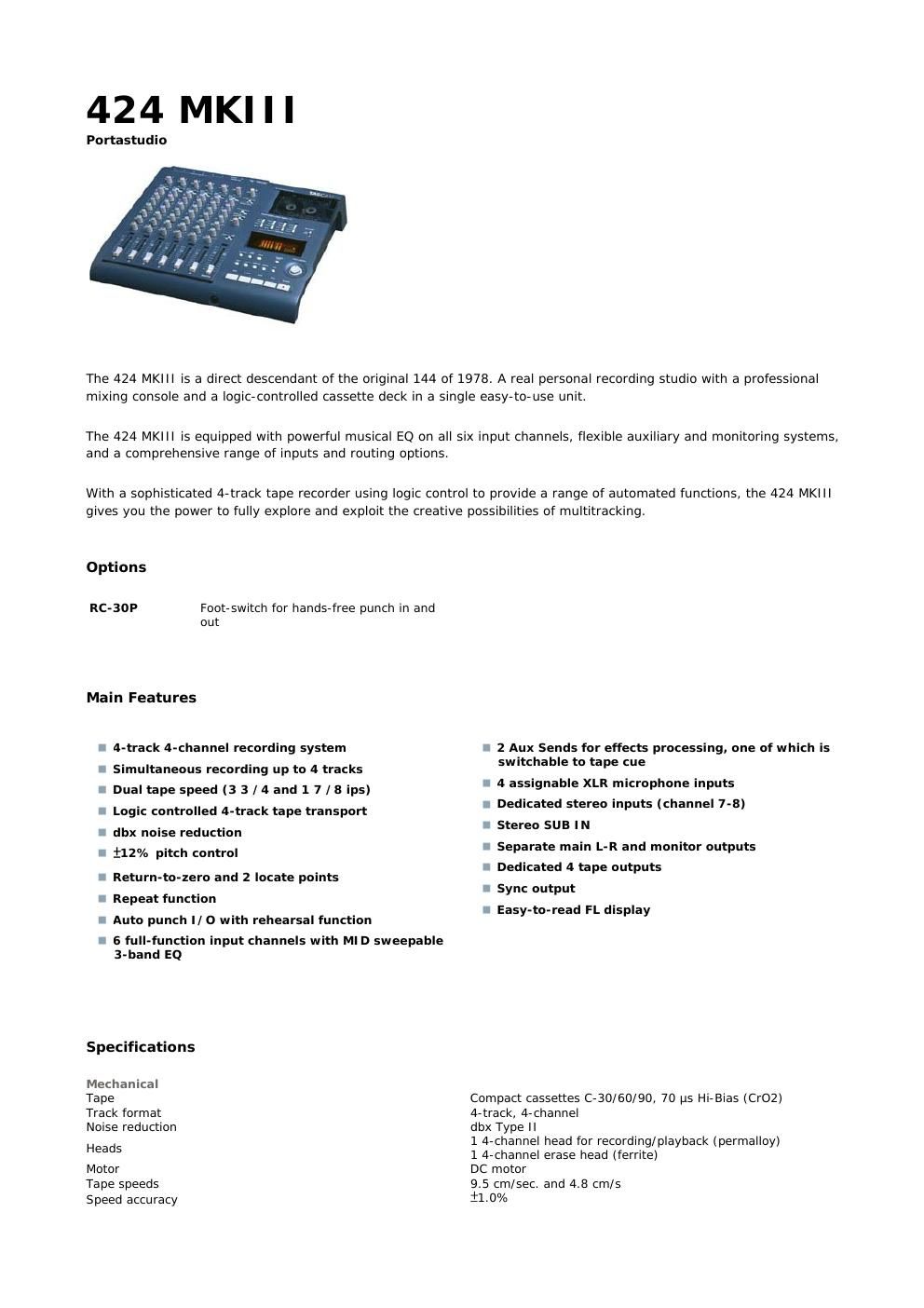

Tascam 424 mk3 brochure

Page 1

Design and specifications subject to change without notice. © Tascam Division · TEAC Europe GmbH · All rights reserved. Last update: 29/03/2004 Pitch control ±12% Wow and flutter 0.05% (9.5 cm/s) Fast winding time approx. 120 s with C-60 cassette Audio Frequency response (overall) 40 Hz - 16 kHz, ±3dB (9.5 cm/s) Total harmonic di stortion <1.0% Signal-to-noise ratio 58 dB (IHF A-weighted, without dbx) 95 dB (IHF A-weighted with dbx) Channel separation >55 dB Erase ratio >65 dB Equalization High (shelving) 10 kHz, ±10 dB Mid (sweepable) 250 Hz - 5 kHz, ±12dB Low (shelving) 100 Hz, ±10 dB Connections Microphone inputs (1-4) 4x XLR Nominal level -60 dBV (MIC) / -20 dBV (LINE) Nominal impedance 3,6 kOhm Mic/Line inputs (1-6) 6x 6.3 mm jack Nominal level -50 dBV (MIC) / -10 dBV (LINE) Nominal impedance 5,6 kOhm Stereo inputs (7-8) 2x 6.3 mm jack Nominal level -10 dBV Stereo sub input 2x RCA Nominal level -10 dBV Stereo line output 2x RCA Nominal level -10 dBV Effect sends/tape cue 2x 6.3 mm jack Nominal level -10 dBV Tape outputs 4x RCA Nominal level -10 dBV Monitor output 2x RCA Nominal level -10 dBV Headphones output 6.3 mm stereo jack max. output power 2x 60 mW Power supply and other specifications Power supply 230 V AC, 50 Hz Power consumption 22 W Weight 4.9 kg Dimensions (W x H x D) 419 mm x 115 mm x 357 mm
