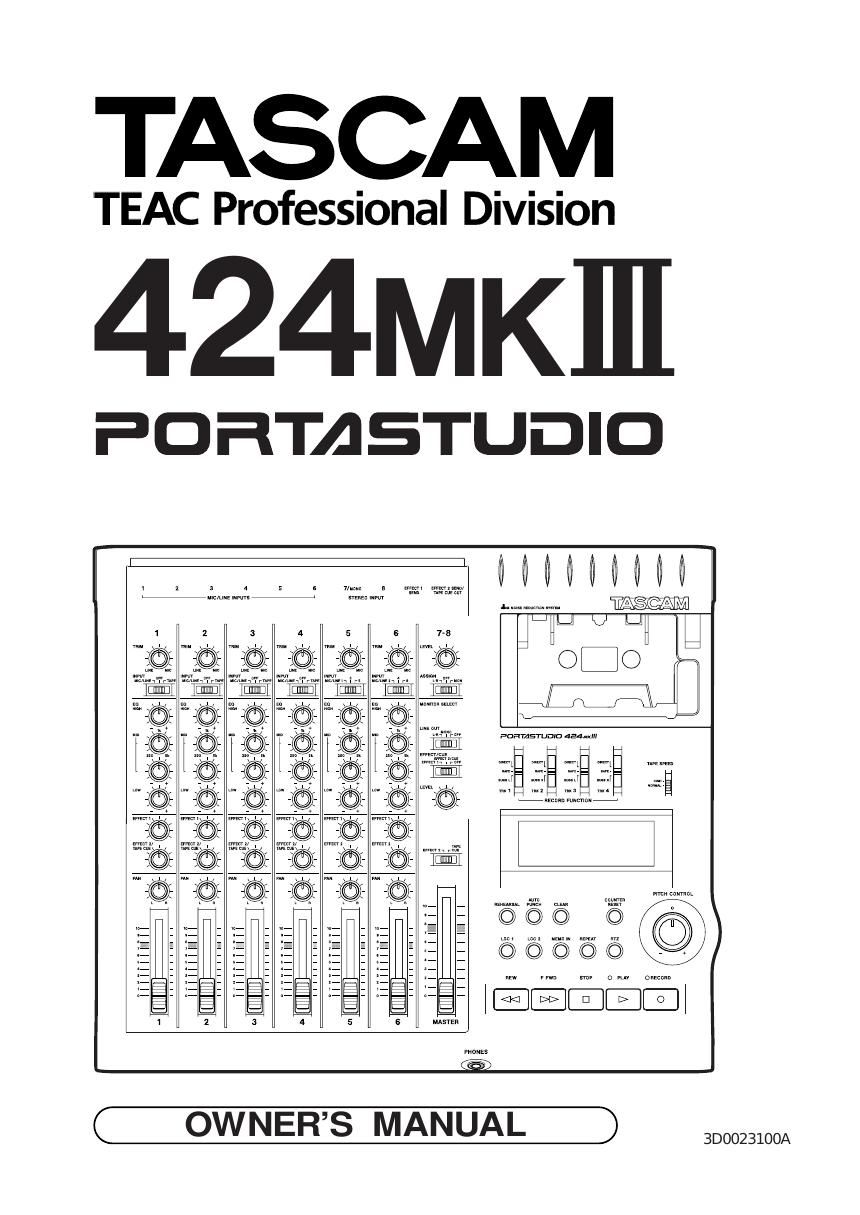

Tascam 424 Mk3 Owners Manual
This is the 48 pages manual for Tascam 424 Mk3 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Tascam 424 Mk3 Owners Manual (Ocr-read)
Page 1
2 Safety Instructions 3 Introduction 4 The Recording System 5 The three steps to multitrack 5 Understanding the Mixer 6-7 Signal flow in the 424 MKIII mixer 6 Tape cue monitor system 7 Multitrack Cassette Recorder 8 Track Format and Tape Recommendations 9-10 PORTASTUDIO 424 MKIII Brief Guide 11-14 Step-By-Step Operations Guide 15-24 Let's try the 424 MKIII mixer 15 How to record on track 1 16 Track 1 playback through TAPE CUE 18 How to make an overdub on track 2 19 How to record tracks 3 and 4 20 How to record many sources onto a single track 20 How to record a mix onto two tracks simultaneously 21 Recording on more than two tracks simultaneously : DIRECT 22 How to mix down 23 Using Memory Location Points 25-26 Loading MEMO points 25 Locating the tape 26 Repeat Play 27 PUNCH-IN or INSERT Recording 28-32 Preliminary 28 Rehearsal and auto in/out procedures 29 Manual punch-in 31 Bouncing Tracks (Ping-Pong) 33-34 Ping-pong procedure 33Using Effects with the PORTASTUDIO 424 MKIII 35-36 Setting effect send levels 35 Setting the output level of effect devices 35 Setting the mix/balance control on effect devices 35 How to connect your effects devices 36 Syncing MIDI-Tape-Using the TASCAM MTS-30 37 Troubleshooting 38 Features and Controls 39-45 424 MKIII Mixer Input section 40 Stereo input section 41 Monitor section 41 Master section 41 Output section 41 424 MKIII Recorder Cassette loading and dbx system 42 Transport controls 43 Track controls 44 Displays 44 Autolocators 44 Optional Accessories 47 Care and Maintenance 48-49 How the dbx Works 49 Specifications 50-52 Block Diagram 53-54 Level Diagram 55 Table Of Contents "© Copyright 1998, TEAC Corporation" All rights reserved under international and Pan American copyright conventions. This book may not be reproduced in whole or in part, by mimeograph or any other means, without permission. "The following marking is located on the bottom of the unit." This appliance has a serial number located on the rear panel. Please record the model number and serial number and retain them for your records. Model number Serial number WARNING: TO PRIVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to person. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN
Page 2
3 Safety Instructions CAUTION: ·Read all of these Instructions. · Save these Instructions for later use. · Follow all Warnings and Instructions marked on the audio equipment. 1) Read instructions - All the safety and operating instructions should be read before the product is operated 2) Retain instructions - The safety and operating instructions should be retained for future reference 3) Heed Warnings - All warnings on the product and in the operating instructions should be adhered to 4) Follow instructions - All operating and use instructions shoud be followed 5) Cleaning - Unplug this product from the wall outlet before cleaning Do not use liquid cleaners or aerosol cleaners Use a damp cloth for cleaning 6) Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards 7) Water and Moisture - Do not use this product near water _ for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a \ wet basement; or near a swimming pool; and the like 8) Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table The product may fall, causing serious injury to a child or adult, and serious damage to the product Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sol\ d with the product Any mounting of the product should follow the manufacturers instructions, and should use a mounting accessory recommended by the manufacturer 9) A product and cart combination should be moved with care Quick stops, excessive force, and uneven surfaces may cause the product and ca\ rt combination to overturn 10) Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to prot\ ect it from overheating, and these openings must not be blocked or covered The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is pro\ vided or the manufacturers instructions have been adhered to 11) Power Sources - This product should be operated only from the type of power source indicated on the marking label If you are not sure of the type of power supply to your home, consult your product dealer or lo\ cal power company For products intended to operate from battery power, or other sources, refer to the operating instructions 12) Grounding or Polarization - This procuct may be equipped with a polarized alternating-current line plug (a plug having one blade wide\ r than the other) This plug will fit into the power outlet only one way This is a safety feature If you are unable to insert the plug fully into the outlet, try reversing the plug If the plug should still fail to fit, contact your electrician to replace your obsolete outlet Do not defeat the safety purpose of the polarized plug 13) Power-Cord Protection - Power-supply cords shoud be routed so that they are not likely to be walked on or pinched by items placed upon\ or against them, paying particular attention to cords at plugs, convenience\ receptacles, and the point where they exit from the product 14) Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system\ is grounded so as to provide some protection against voltage surges and bui\ lt- up static charges Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and\ supporting structure, grounding of the lead-in wire to an antenna discha\ rge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode "Note to CATV system installer: This reminder is provided to call the CATV system installers attenti\ on to Section 820-40 of the NEC which provides guidelines for proper grounding\ and, in particular, specifies that the cable ground shall be connected t\ o the grounding system of the building, as close to the point of cable entry a\ s practical 15) Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time\ , unplug it from the wall outlet and disconnect the antenna or cable syste\ m This will prevent damage to the product due to lightning and power-line surges 16) Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power ci\ rcuits, or where it can fall into such power lines or circuits When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fata\ l 17) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in risk of fire or e\ lectric shock 18) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points\ or short-out parts that could result in a fire or electric shock Never spill liquid of any kind on the product 19) Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards Refer all servicing to qualified service personnel 20) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the foll\ owing conditions: a) when the power-supply cord or plug is damaged b) if liquid has been spilled, or objects have fallen into the product c) if the product has been exposed to rain or water d) if the product does not operate normally by following the operating instructions Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician t\ o restore the product to its normal operation e) if the product has been dropped or damaged in any way f ) when the product exhibits a distinct change in performance _ this indicates a need for service 21) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part Unauthorized substitutions may result in fire, electric shock, or other hazards 22) Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determin\ e that the product is in proper operating condition 23) Wall or Ceiling Mouting - The product shoud be mounted to a wall or ceiling only as recommended by the manufacturer 24) Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including ampl\ ifiers) that produce heat ANTENNA LEAD IN WIRE ANTENNA DISCHARGE UNIT (NEC SECTION 810-20) GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H) NEC - NATIONAL ELECTRICAL CODE ELECTRIC SERVICE EQUIPMENT Example of Antenna Grounding as per National Electrical Code, ANSI/NFPA 70 GROUND CLAMP
