Tascam 34 owners manual
This is the 44 pages manual for tascam 34 owners manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from tascam 34 owners manual (Ocr-read)
Page 1

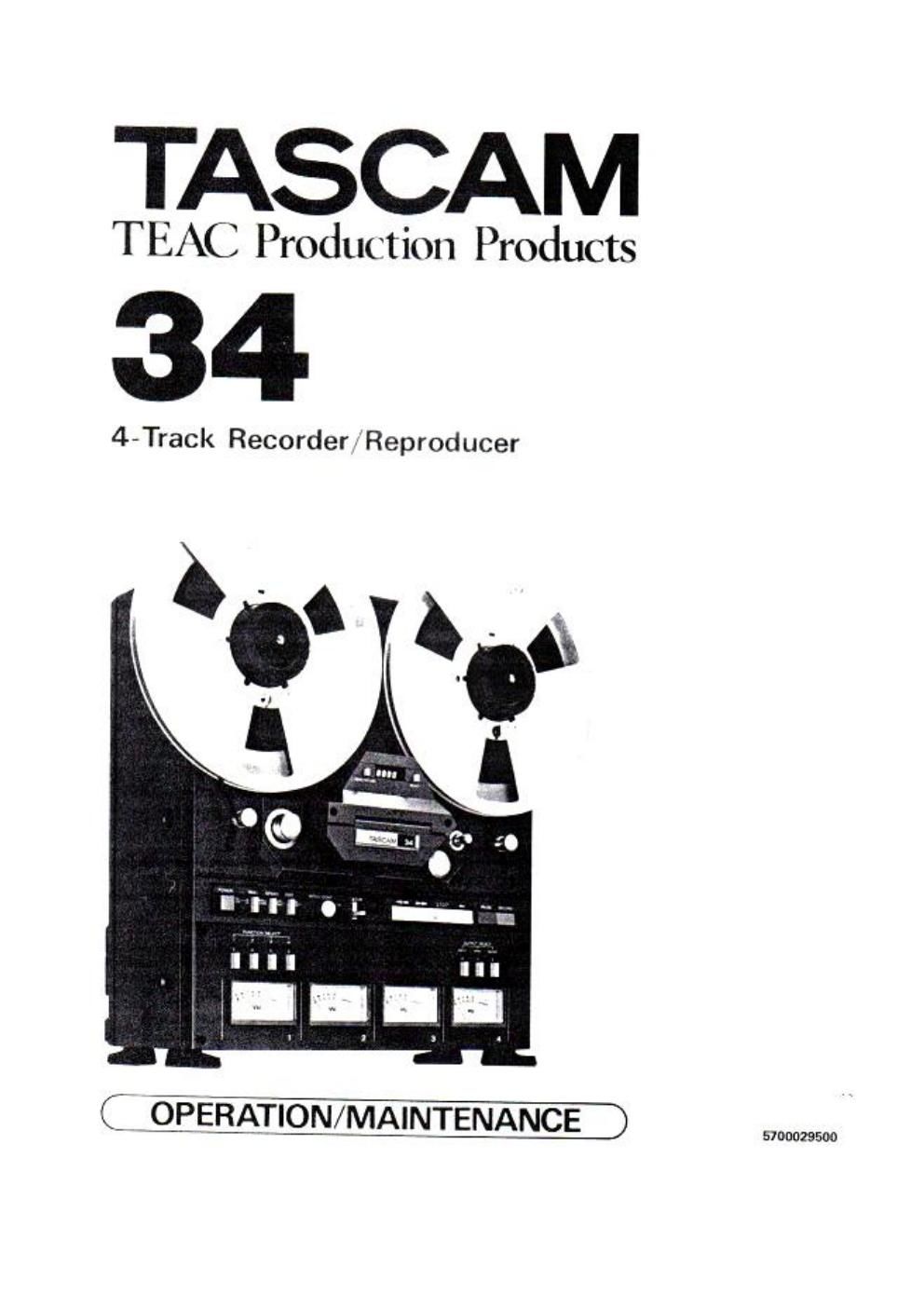

TASCAM
TEAC Production Products
34
4-Track Recorder -'Reproducer
C OPERATION/MAINTENANCE 3
5 7 00029500
Page 2
TASCAM 34 - Maintenance manual
MAINTENANCE
Note:
Parts reference numbers used in the circuit
description may not always correspond to those
of the Model 34, except for the following
sections: 1-5 Reel Motor Drive Circuit, 1-9 F.F
and REW Operation, 1-10 Electrical Brake
System, 1-13 Edit Control Circuit and 1-16
Amplifier Circuit Description.
NOTES
o All resistors are 1/4 watts, 5%. unless marked
otherwise. Resistor values are in ohms [K=1,000-
ohms, M=1,000,000 ohms].
* All capacitor values are in microfarads (D'Pico-
faradsl.
: A Parts marked with this sign are safety critical
components. They must always be replaced
with indentical components - refer to the TEAC
Parts List and ensure exact replacement.
I 0 dB is referenced to 1 V in this manual unless
otherwise specified.
a PC boards shown viewed from foil side.
Elm we". Im
