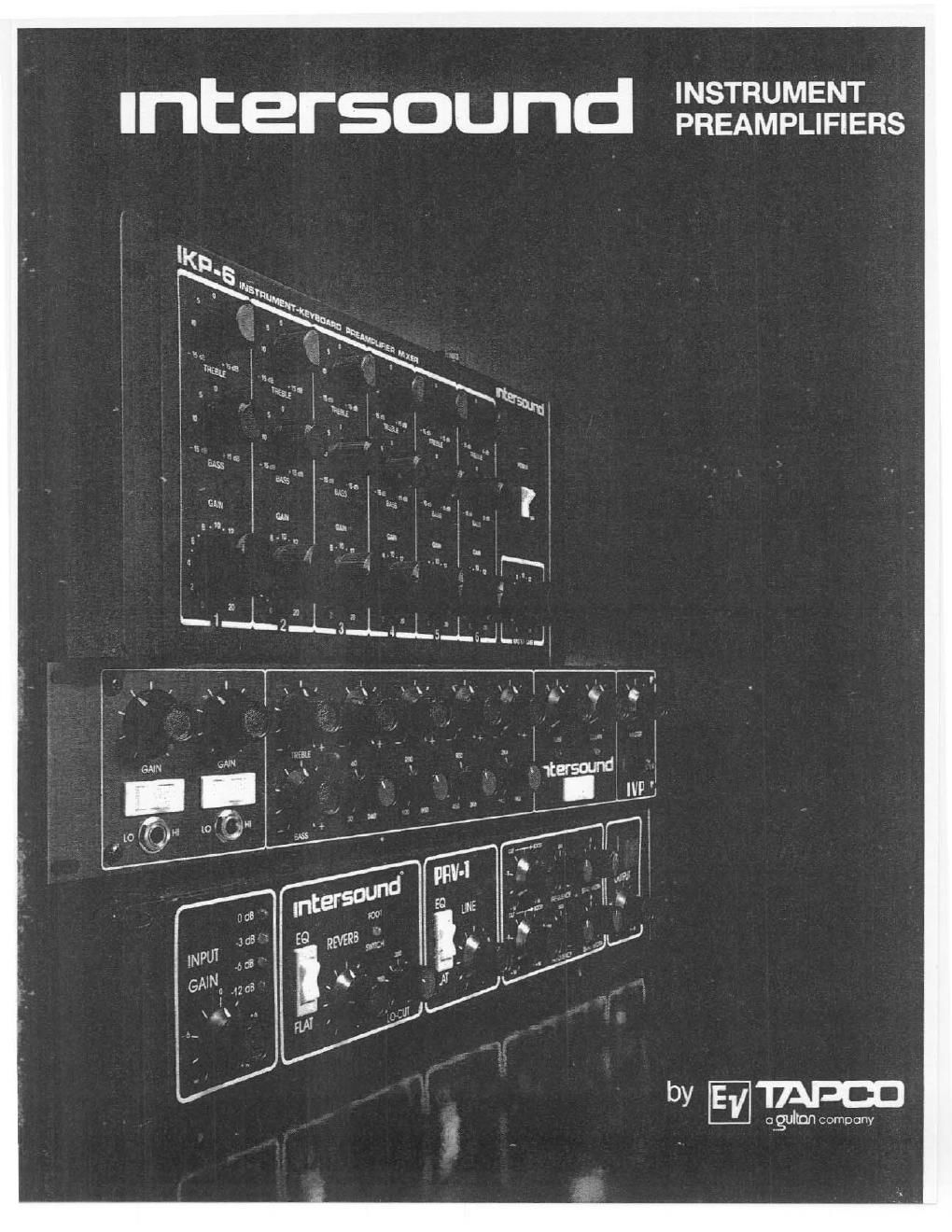

Tapco ivp brochure

Page 2

IVP INSTRUMENT VOICING
PREAMPLIFIER

am

IntersuLInd

FEATU RES:

FRONT PANEL I TUBE AND CLEAN VOICE CONTROLS - Give you

independent volume adjustment for each voice.
TWO SEPARATE B'FET 'NPUTS WITH INDEPENDENT . LED STATUS INDICATORS - Indicate which voice is

LEVEL CONTROLS. selected.
INPUT GAIN SENSITIVITY SWITCHES- Assure adequate . MASTER VOLUME CONTROL
headroom for any Instrument or pickup Including "Hot

keyboards & synthesizers.
BASS/TREBLE CONTROLS - (shelving type) to set the REAR PANEL

basic tone response desired. I EXTERNAL EFFECTS LOOP #1 - For patching your choice

0 LED LEVEL INDICATOR - Indicates the proper level for of effects pre-tube voice.
mostextemal effects. I EXTERNAL EFFECTS LOOP #2 - Post-tube vorce to

I FOUR BANDS 0F ACTIVE BOOST AND CUT provideamore complex sound totheeifect device.
EQUALIZATION I LINE LEVEL OUTPUT JACK - For normal use feeding a

I VARIABLE FREQUENCY CONTROLS - Enables one to poweramplifiercr powered monitors.

slide each band of equalization overa3octave range to 0 DOWN 10 dB OUTPUT JACK - A lower level output for
locate the proper frequency for equalization. preamplified systems or direct taping.

I EXCLUSIVE TUBE VOICE CIRCUIT - Dynamically I XLR OUTPUT JACK - Provides balanced direct box
responsive tube sound eflect with quiet FET swilching function for long feed lines or studio patching at-iOdB.
and external footswitch option.

REAR PANEL:

INSTRUMENT
PREAMPLIFIER

VERSATILE APPLICATIONS FOR DEMANDING MUSICIANS

The lVP represents the most advanced concept in total instrument control available today Its unique circuits give the
musician the ability to choose the precise voice for his instrument with a Wldel' range of sounds than previously possible The variety
of outputs, inputs and effects loops offer many different application possibi lities. Here are just a few:

Guitarists/Bassists
These are the musicians who originally asked us for the IVP. It offers a complete control center in one unit for stage use,
studio work and practice sessions.

I Can be used with existing musical instrument amplifiers to provide increased control. The perfect first step to component
systems

0 With a component power amp and speakers, the NP provides the complete control necessary for any system.

I Feeds master house mixers and monitor systems}

I Two effects loops accommodate effects pedals and devices such as volume. wah-wah, echo. DDL ADL flangers, phase shifters.
etc. The second effects loop is located aIter the unique tube voice circuit for effects which are enhanced by more complex
signals,

I Complex hookups can be made using the effects sends as additional outputs,

0 Will teed multi-amp systems and crossover systems.

I Low level output can be used for tape recording.

0 Phone jack outputs will drive headphones for practice.
