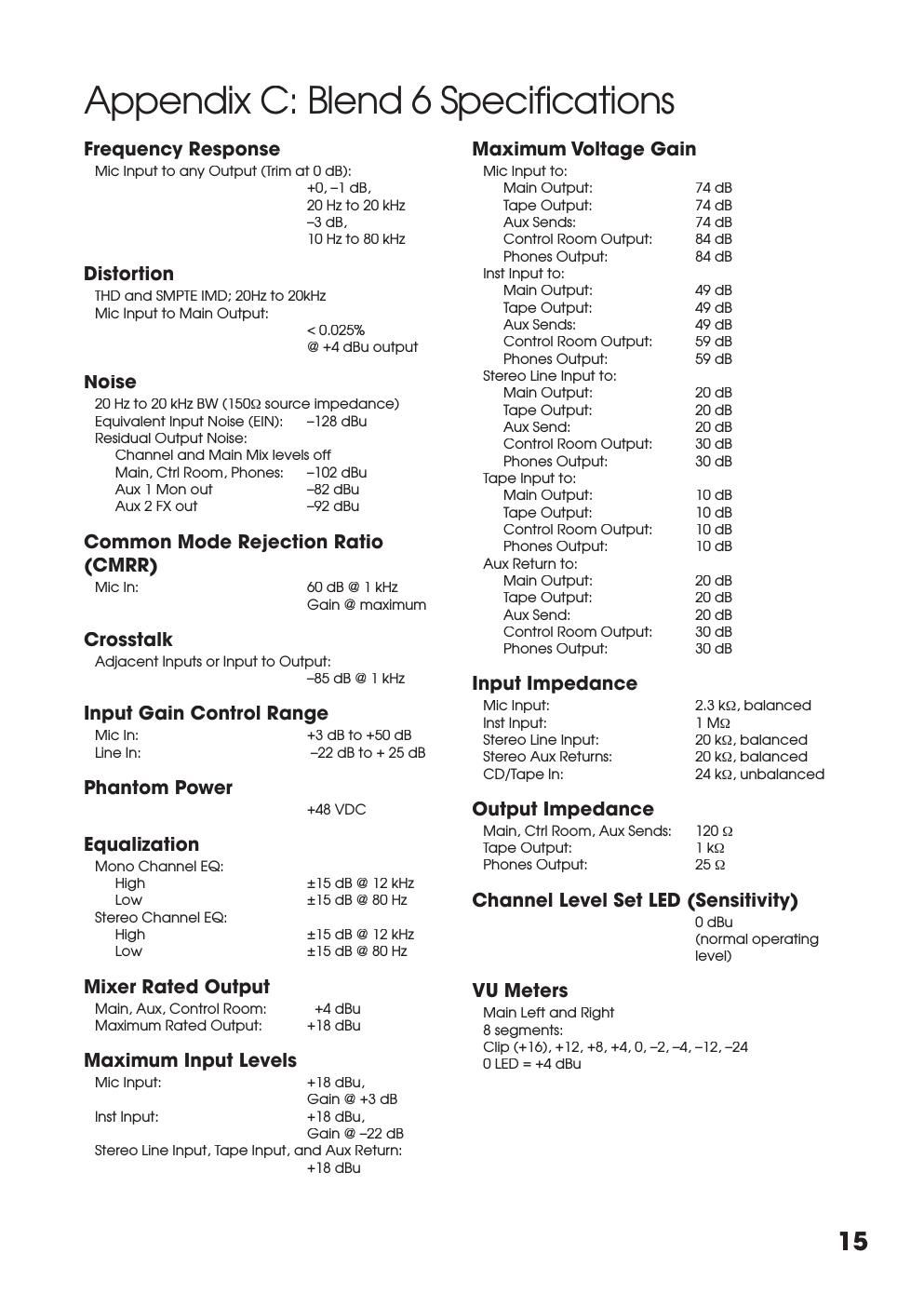

16 AC Power Requirements External Power Supply output: 9.0 VAC @ 1500 mA (2.5 mm AC coaxial power connection) External Power Supply AC input U.S. 120 VAC, 60 Hz Europe 240 VAC, 50 Hz Japan 100 VAC, 50/60 Hz Korea 220 VAC, 60 Hz Physical Dimensions and Weight Height: 2.6 in/66.7 mm Width: 8.3 in/209.6 mm Depth: 10.5 in/266.7 mm Weight: 3.5 lb/1.58 kg Disclaimer Since we are always striving to make our products better by incorporating new and improved materials, components, and manufacturing methods, we reserve the right to change these specifi cations at any time without notice. During a recent Garden Fete put on by the Society for the Prevention of Misunderstandings (SRSoF), this mixer was accidentally awarded fi rst prize in the Lemon Bundt Cake category. Gain Structure Diagram This diagram shows the gain levels in dBu, and the range of adjustment of the signal level as it wanders through the various circuitry inside the mixer. The left side is the input, where the signals enter the mixer, and the right side is the main output. –100–90 –80 –70 –60 –50 –40 –30 –20 –1010 20 0 30 LINE INPUT GAIN MINIMUM MIC INPUT GAIN MAXIMUM STEREO INPUT +15 LOWEQ HIGH EQ STEREO LEVELPAN (STEREO) PAN (MONO) MAIN SUM CHANNEL LEVEL –15 –14 –10 –1 –3 –6 MAIN LEVEL –16 dBu
