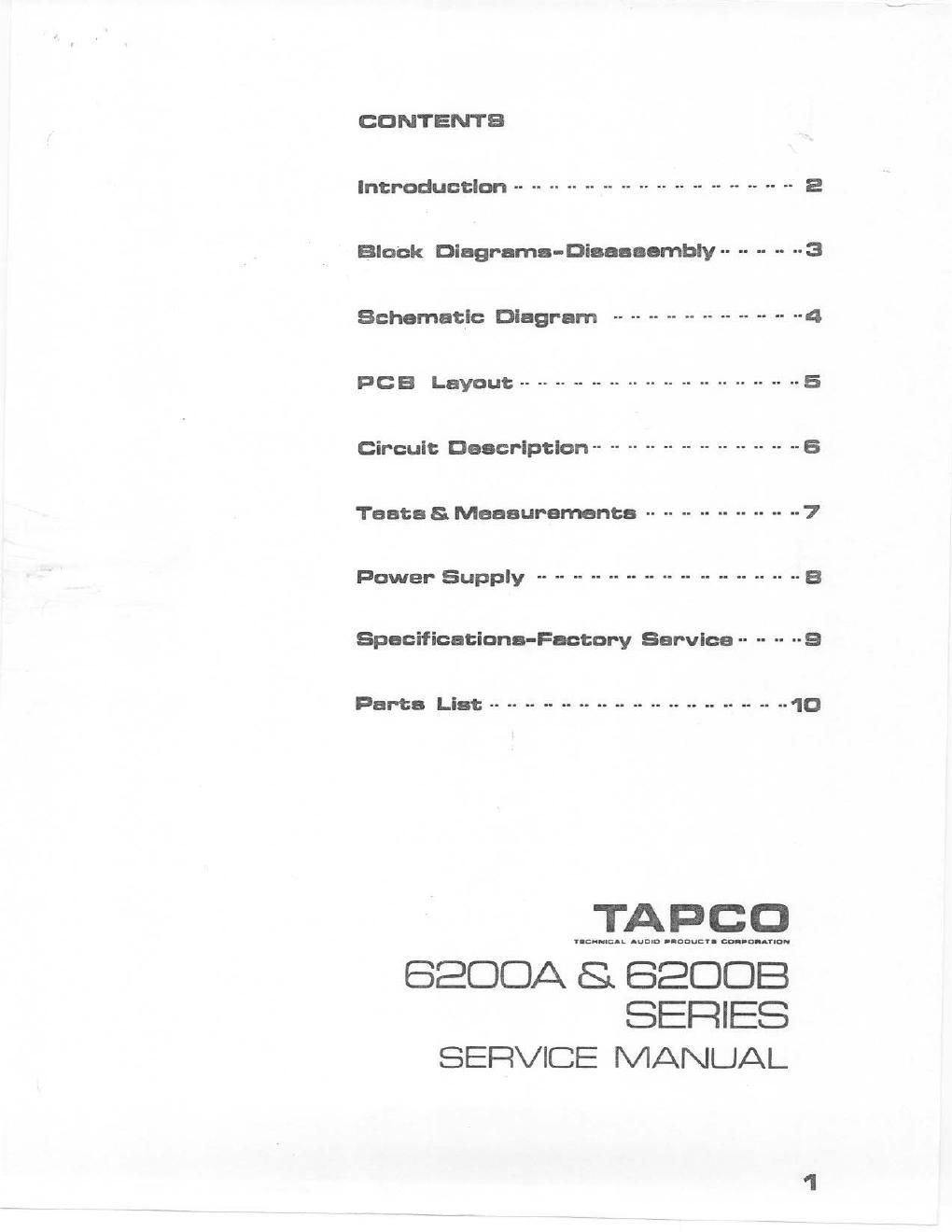

Tapco 6200 a service manual
This is the 17 pages manual for tapco 6200 a service manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from tapco 6200 a service manual (Ocr-read)
Page 2
INTRODUCTION
The Tapco models 6200 A and 6200 B are stereo microphone mixers which can anplify and equalize up to
six low impedance microphones (or high-level sources) and send them through either of two identical
output sections by means of a continuously variable pan pot. in addition. each channel can be fed to
an external effects device such as a reverberation unit or echoplex. or to a monitor amplifier by
means of the Effects Send control on each channel. Effects can also be added selectively to each
individual channel by means of the Channel Patching jack on the rear panel. The output sections con-
tain the rumble filter and high-boost functions, effects return. and output metering.
