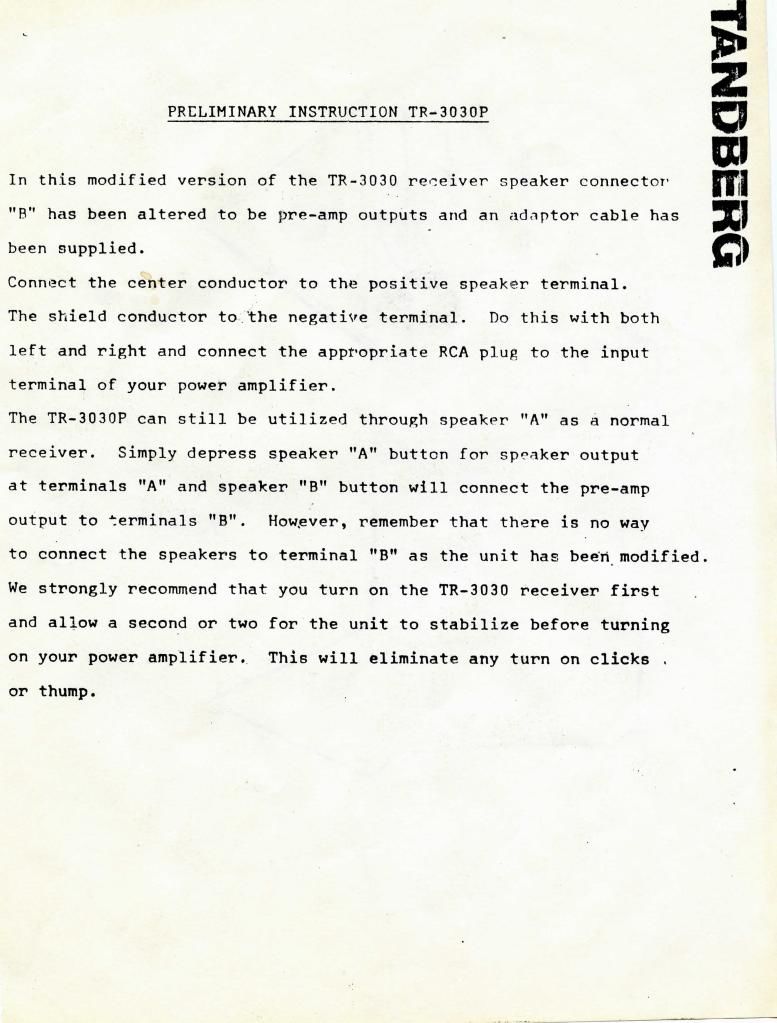

Page 1
PRELIMINARY INSTRUCTION TR-3030P
In this modified version of the TR-3030 receiver speaker connector
"B" has been altered to be pre-amp outputs and an adaptor cable has
been supplied.
Connect the center conductor to the positive speaker terminal.
The shield conductor to the negative terminal. Do this with both
left and right and connect the appropriate RCA plug to the input
terminal of your power amplifier.
The TR-3030P can still be utilized through speaker "A" as a normal
receiver. Simply depress speaker "A" button for speaker output
at terminals "A" and speaker "B" button will connect the pre-amp
output to terminals "B". However, remember that there is no way
to connect the speakers to terminal "B" as the unit has been modified.
We strongly recommend that you turn on the TR-303D receiver first
and allow a second or two for the unit to stabilize before turning
on your power amplifier. This will eliminate any turn on clicks
or thump.
